Installation Manual
Due to our policy of continuous product innovation, some specifications may change without notification.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
ACCESSORIES INSTALLATION
Installation Sequence
Complete the following steps (in this order)
to correctly install the wall mounted
motion sensor:
Install battery.
Pair sensor with MultiSITE Controller.
Remove plastic pull tab.
Verify sensing motion.
Install sensor to wall surface.
Install Battery
1. Use a flathead screwdriver to carefully
pry cover away from motion sensor
(Figure 21).
2. Install one CR2 battery in Sensor
Housing (Figure 22). Ensure bat-
tery polarity is correct When bat-
tery is first installed, the sensor
automatically goes into pairing
mode. Refer to “ZigBee Setup”
on page 42.
3. Replace cover on motion sensor.
4. Proceed to Verify Sensing
Motion.
Verify Sensing Motion
1. Wait three minutes for sensor to warm
up. Sensor requires a three minute
warm-up before it reporting any motion
detection.
2. Wave hand or object in front of sensor.
3. Verify LED flashes red on sensor
(Figure 16). LED flashing red indicates
motion detected.
4. Proceed to Install Wall Mounted Motion
Sensor.

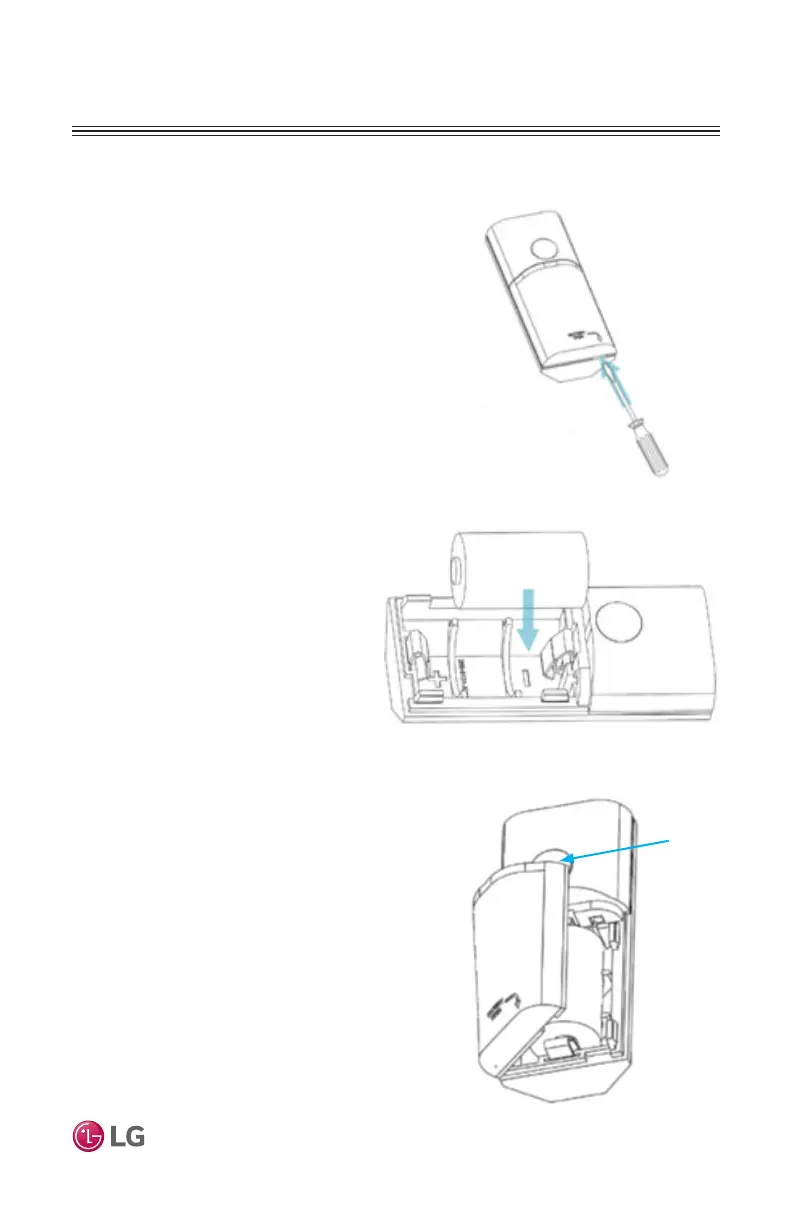

Figure 21: Remove
Sensor Cover
Figure 22: Install Battery
LED
Figure 23: Flashing LED
