ACCESSORIES INSTALLATION
Install Wall Mounted Motion Sensor
Install the motion sensor to the desired location. The motion
sensor can be installed vertically, horizontally, or upside down
on a flat surface or in a corner.
1. Consider sensor placement con-
ditions before installing sensor.
Refer to “Sensor Placement” on
page 22.
2. Affix two-sided tape to desired
installation location (Figure 24).
3. Position motion sensor on two-
sided tape and press firmly to
secure in place.
4. Test the wall mounted motion
sensor again according to “Verify
Sensing Motion” on page 23
Sensor Functions
Figure 25 shows the location of the function button on the sen-
sor module. Refer to “Table 2: Function Button and LED Indica-
tors” on page 43 for information on using this button and the
LED indicator to set up sensor module operation.
2-sided tape

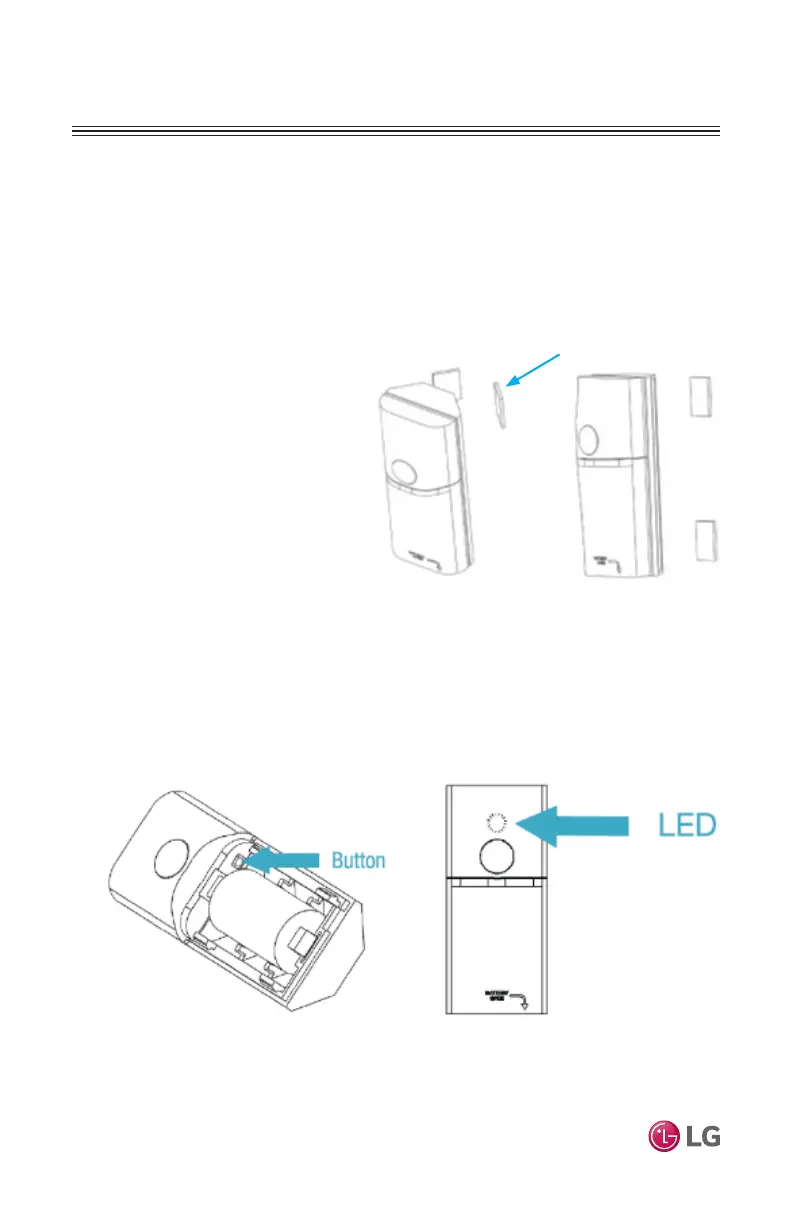

Figure 24: Wall Mounted
Motion Sensor Installation
Figure 25: Function Button and LED
Test Sensor with Controller
Refer to “ZigBee Pro Quick Setup” on page 42 for information
on how to test sensor operation.
