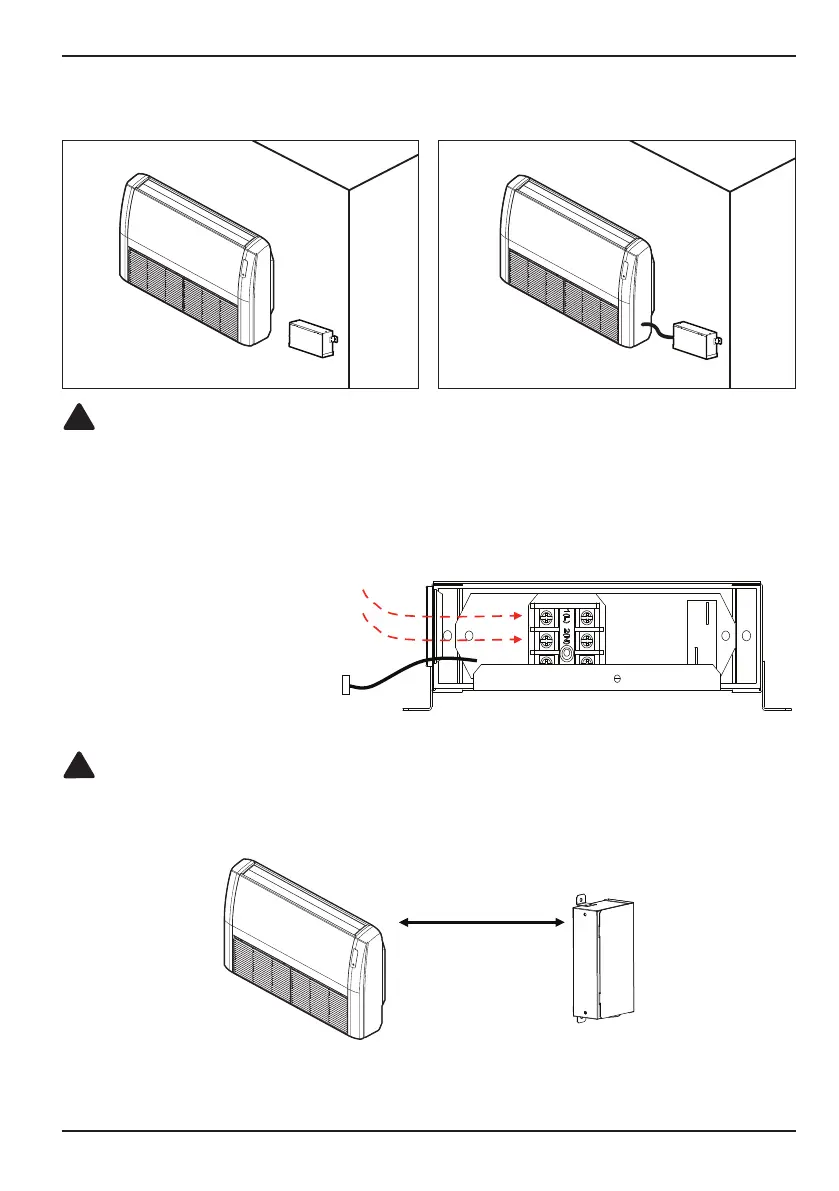

12 Auxiliary Heater Relay Kit
Assembly Diagram
n Ceiling Suspended
D < 3.3 ft
Step1. Mount relay kit on the wall. Step2. Connect wires and assemble cover.
CAUTION
Do not install PRARS1 at,
- Places which exposed to rain or any water.
Other wise it may leads to electric shock, fire, injury or sometimes even fatality.
!
CAUTION
!
※
Wiring
Auxiliary Heater communication lines
(under AC24V,over AWG24)
These wires should not make
contact with high voltage lines.
To indoor unit PCB
(CN-PTC)
Auxiliary heater relay kit should be installed with in 3.3 ft from the product.
Otherwise heater may cause malfunction.
To Next Page
