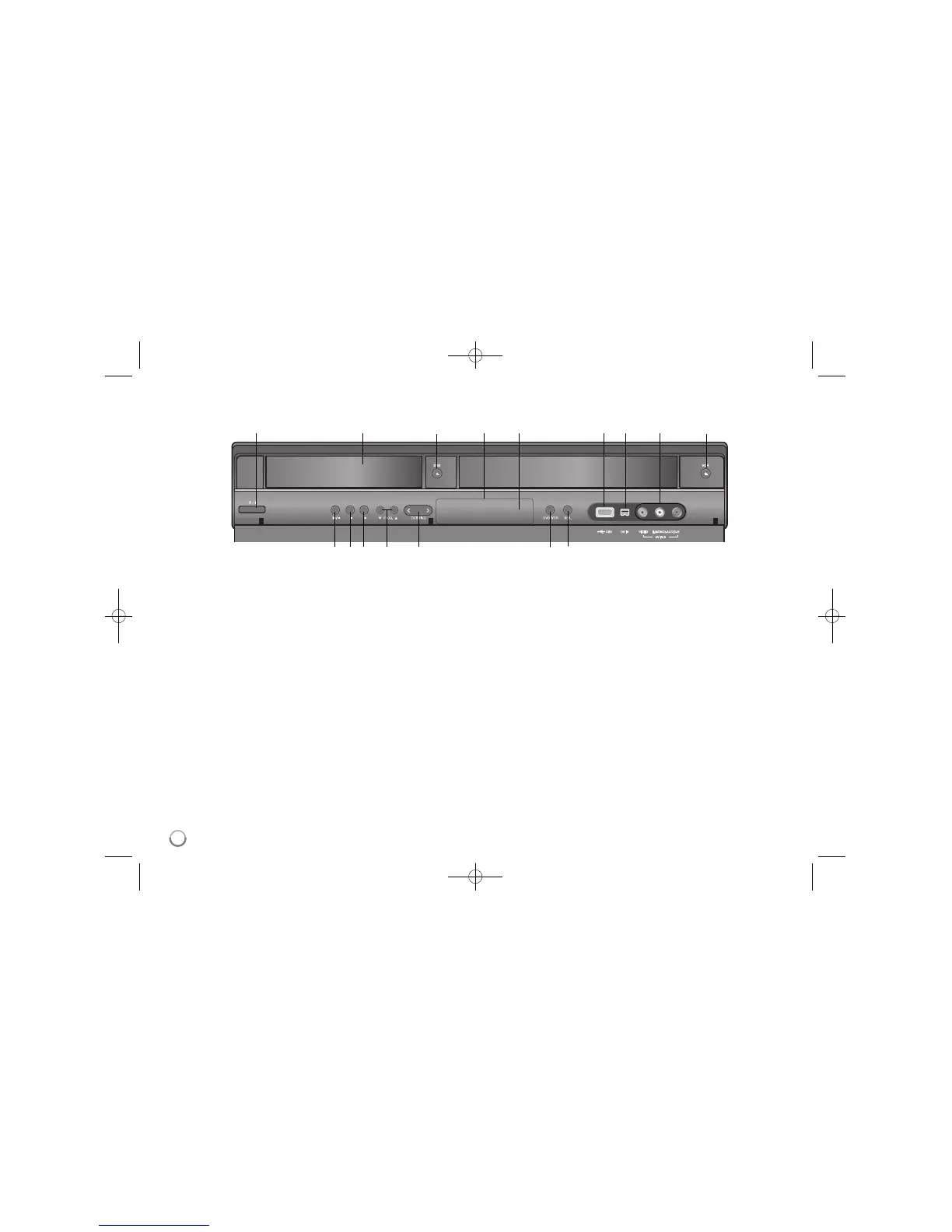

Main Unit
a
11
/ I (POWER button)
Switches the unit ON or OFF.
b Disc Tray
Insert a disc here.
c DVD (Z)
Opens or closes the disc tray.
d Display window
Shows the current status of the recorder.
e Remote Sensor
Point the remote control here.
f USB Port
Connect an USB Memory Stick.
g DV IN
Connect the DV output of a digital camcorder.
h AV IN 3 (VIDEO IN/AUDIO IN (Left/Right))
Connect the audio/video output of an external source (Audio system, TV/
Monitor, VCR, Camcorder, etc.).
i VCR (Z)
Ejects the tape in the VCR deck.
j N / X (PLAY / PAUSE)
Starts playback.
Pause playback or recording temporarily, press again to exit pause mode.
k x (STOP)
Stops playback or recording.
l z (REC)
Starts recording. Press repeatedly to set the recording time.
m PROG. (V / v )
Scans up or down through memorized channels.
n DUBBING
Press to copy DVD to VCR (or VCR to DVD).
o DVD/VCR
Toggles control between the DVD deck and the VCR deck.
p RES.
Sets the output resolution for HDMI and COMPONENT OUTPUT jacks.
- HDMI: 576i, 576p, 720p, 1080i, 1080p
- COMPONENT: 576i, 576p
