Connecting 19
Connecting
2
Connection to Another
device

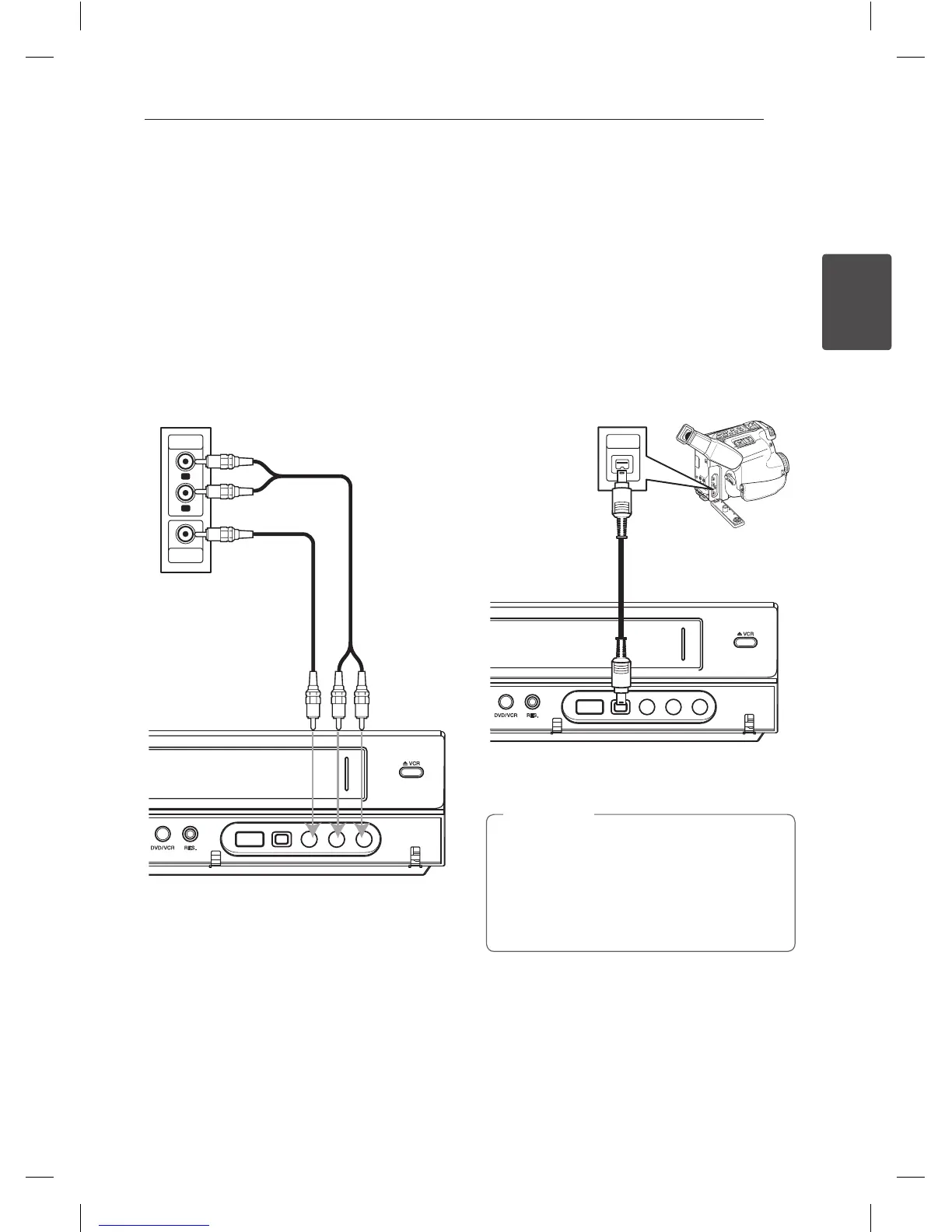

Accessory Audio/Video (A/V)
Connections to Recorder
Connect the input jacks (AV IN 2) on the recorder
to the audio/video out jacks on your accessory
component, using audio/video cables.
L
R
VIDEO
OUTPUT
AUDIO
OUTPUT
Front of the unit
Jack panel of Accessory Component
(VCR, Comcorder, etc.)
Connecting a Digital
Camcorder
Using the front panel DV IN jack, it is possible to
connect a DV digital camcorder or video deck or
DVD-R/RW recorder and digitally transfer DV tapes
or DVD-R/RW discs to DVD-R/RW.
Use a DV cable (not supplied) to connect the DV in/
out jack of your DV camcorder/video deck to the
front panel DV IN jack of this recorder.
DV
IN/OUT
Front of the unit
DV Digital Camcorder
y
This jack is for connection to DV equipment
only. It is not compatible with digital
satellite tuners or D-VIDEO video decks.
y
Disconnecting the DV cable while recording
a contents of the connected digital
camcorder may result in malfunction.
,
Note

LG RCT689H Specifications

General

Progressive scan output	Yes
Analog signal format system	PAL, SECAM
Playback formats	DivX, MPEG4 AVC (H.264)
Dimensions (WxDxH)	430 x 260 x 78.5 mm
Number of TV tuners	1
Audio formats supported	MP3, WMA
Image formats supported	JPG
Audio decoders	Dolby Digital
Device type	DVD recorder
Product color	Black
Disc types supported	CD, CD-R, CD-RW, DVD, DVD+R, DVD+RW, DVD-R, DVD-RW
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
