Features

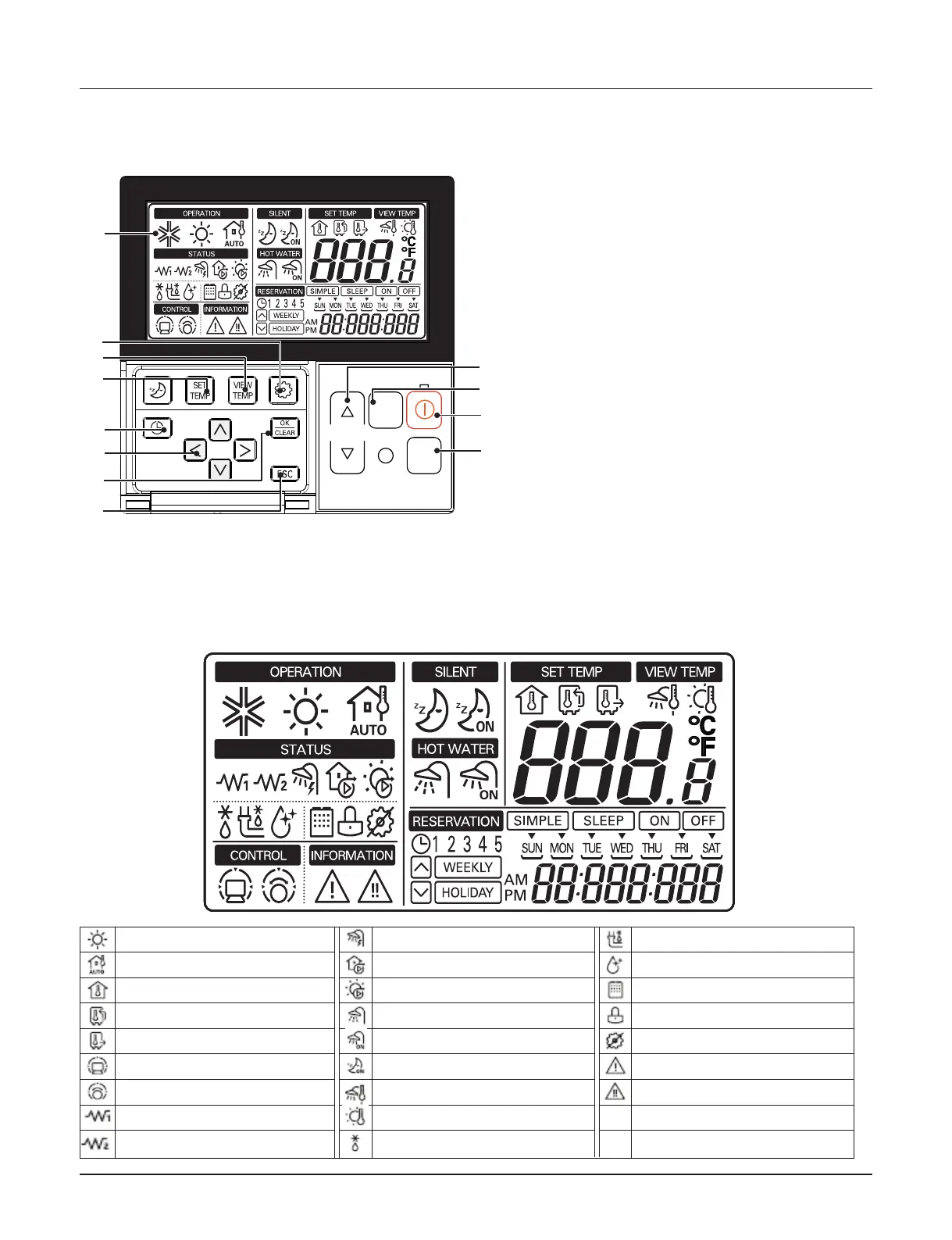

1.3 Control Panel
• Controller configuration
① Display panel
② Change temperature button
③ Water heating enable / disable button
④ Power button
⑤ Mode heating button
⑥ Temperature setting mode button
⑦ Temperature view mode button
⑧ Function setting button
⑨ Programming button
⑩ Direction button (up, down, left, right)
⑪ OK / CLEAR button
⑫ ESC button
• Display panel
Heating
Weather-dependent Heating
Space Temp.
Water Inlet Temp.
Water Outlet Temp.
Central Controller
Thermostat
Electric Heater (1)
Electric Heater (2)
Water Tank Electric Heater
Water Pump
Solar Heating Pump
Water Tank Heating Enable / Disable
Water Tank Heating (by Heat Pump)
Silent Mode ON / OFF
Water Tank Temp.
Solar Heating Temp.
Defrost
Water-Pipe Anti Freezing
Water Tank Disinfection
Outdoor Unit
Child Lock
Not Available Function
Slight Trouble
Heavy Trouble
