11
Installation
▶ Step 1 : Check rubber seal inlet hose
▶ Step 2 : Connect hose to water tap
• Water supply pressure must be between 100 - 1000 kPa (1.0 - 10.0 kgf / cm
2
).
• Do not strip or crossthread when connecting inlet hose to the valve.
•
If the water supply pressure is more than 1000 kPa, a water pressure reduction device should be installed.
• Periodically check the condition of the hose and replace the hose if necessary.
•
Two rubber seals are supplied with the water inlet hoses.
They are used for preventing water leaks.
Make sure the connections to taps are
sufficiently tight.
• Do not use pliers,multi grips or leverage tools
to tighten. Hand tighten only. Use a cloth if
necessary.
•
Screw the hose connector onto water supply tap.
1. Unscrew the adapter ring plate and the 4
adapter retaining screws.
2. Push the adapter onto the end of the tap
so that the rubber seal forms a watertight
connection. Tighten the adapter ring plate
and the 4 screws.
3.
Push the water supply hose vertically upwards
so that the rubber packing within the hose
can adhere completely to the tap and then
tighten it by screwing it to the right.

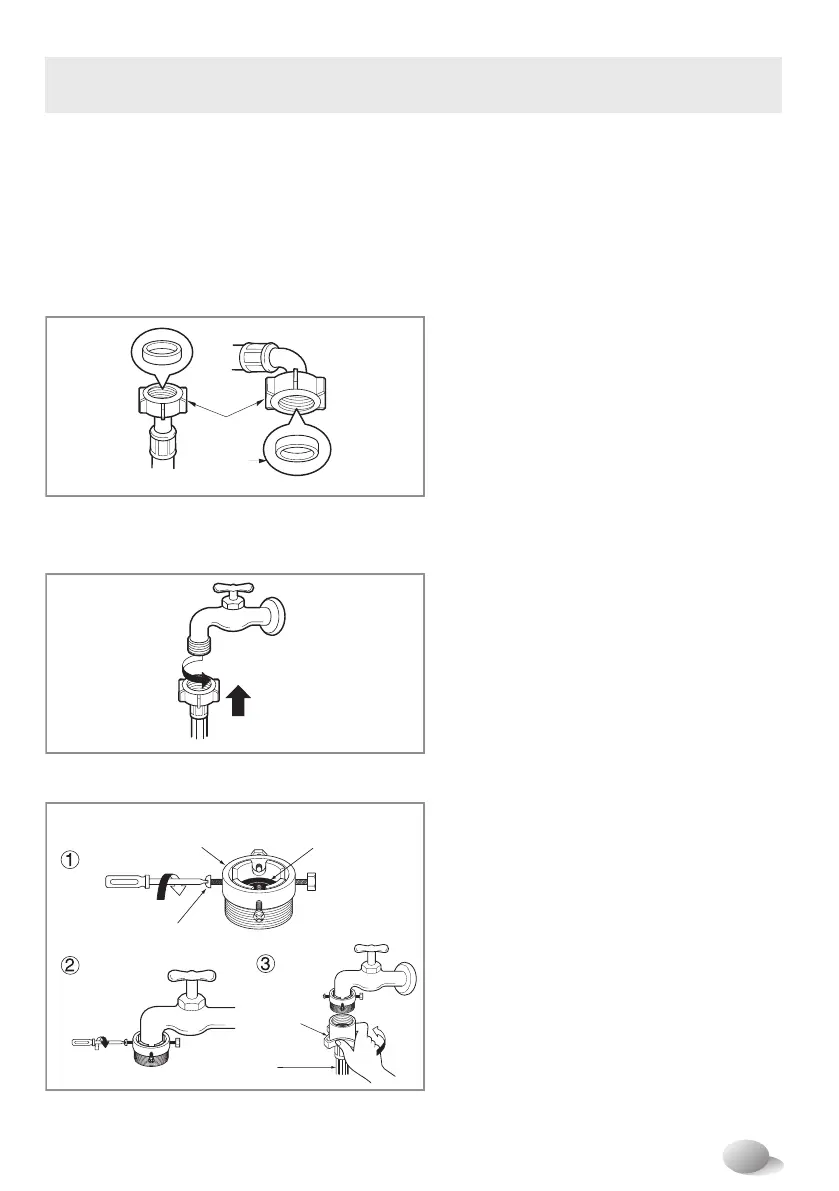

■ Connecting water supply hose
Type - A : Connecting Screw-type hose to tap with thread
Type - B : Connecting Screw-type hose to tap without thread
Rubber
seal
Hose
connector
Upper
connector
Rubber
packing
Fixing screw
Plate
Water supply
hose
To Next Page
