Display on PCU and ECU in normal operation
The following contents are displayed on the PCU and ECU in normal operation.
Table: PCU and ECU display
Battery charging status
Once the battery is initialised to normal working status, the battery level is displayed on the PCU screen in the form
of a percentage: 10, 20, 30, 50, 70 and 90. When there is only 10% battery level left, the display ashes once every
second.

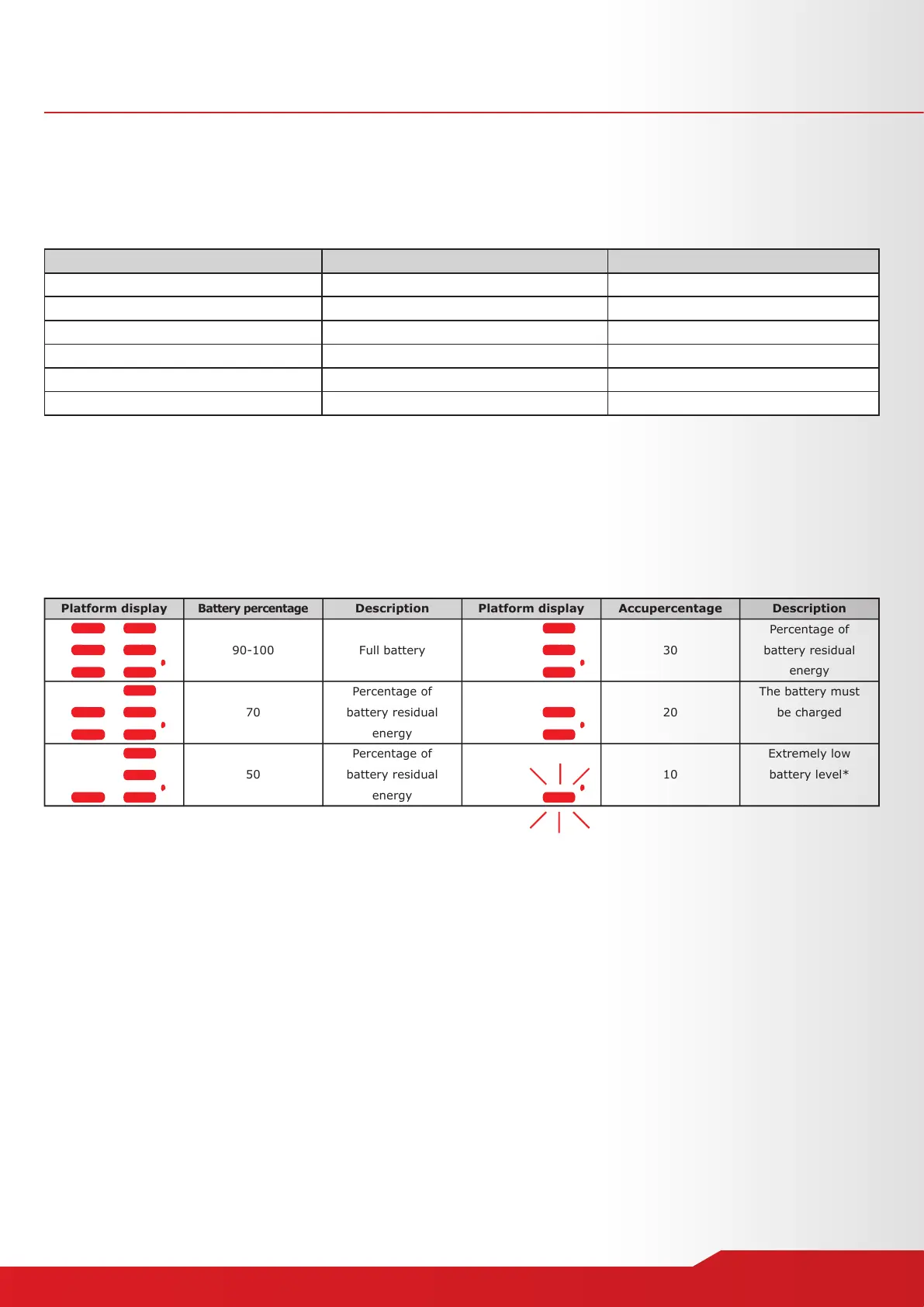

Table 2: Battery display
* The machine automatically switches to low speed mode.
Operating mode
Startup and no displacement
Move forward and backward
Platform lifting
Platform lowering
Generate Error
Chassis control mode
PCU display
Battery status
Battery status
Battery status
Battery status
Error code
C H
ECU display
Machine Mode Code
Software version
Error code
C H
Platform display
Battery percentage
90-100
70
50
Description
Full battery
Percentage of
battery residual
energy
Percentage of
battery residual
energy
Platform display Accupercentage
30
20
10
Description
Percentage of
battery residual
energy
The battery must
be charged
Extremely low
battery level*
