3 MECHANICAL CONSIDERATIONS
3.1 Liebert DCD Dimensions

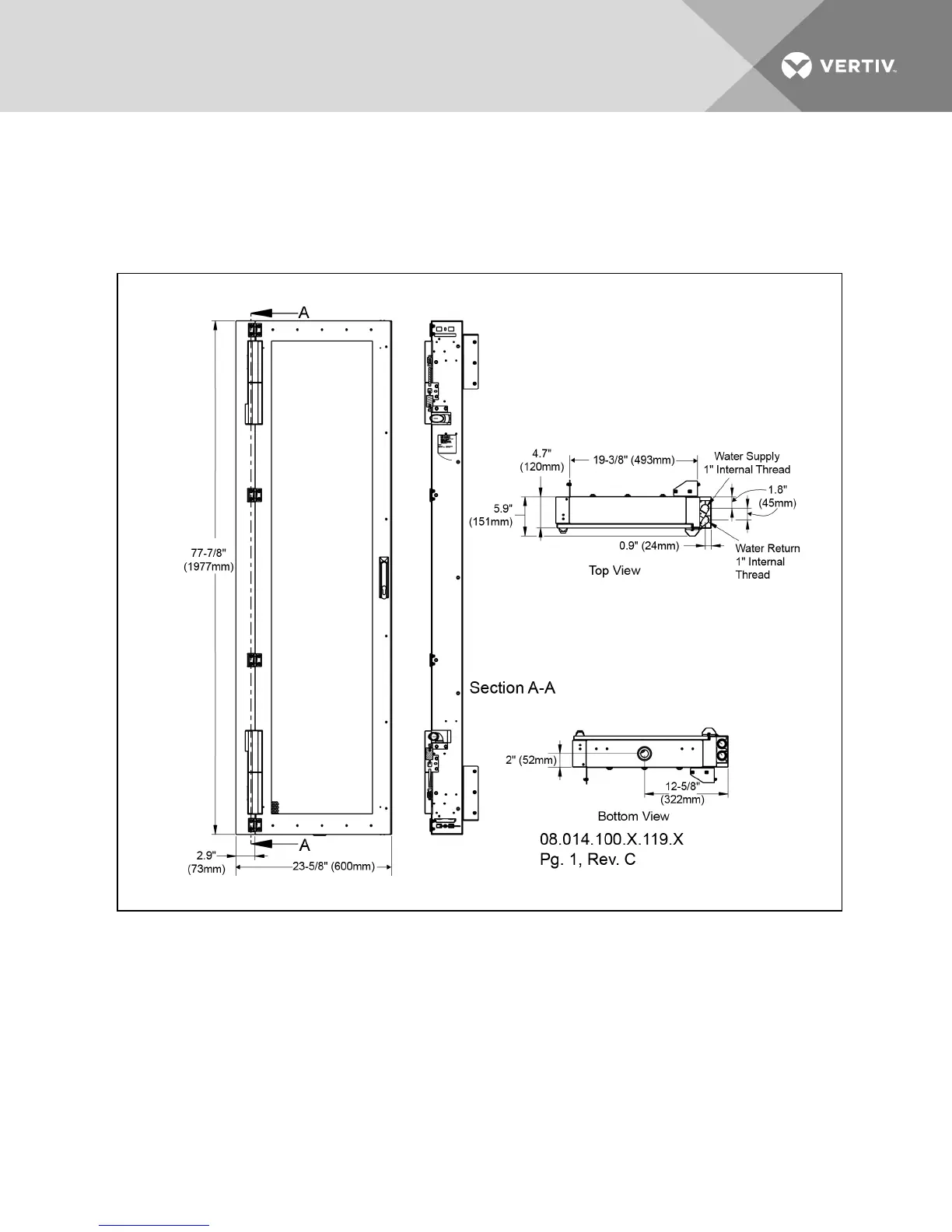

Figure 3.1 Liebert DCD door dimensions
3.2 Cooling Principle
The server fans force air heated by the rack equipment through the unit’s air-water heat exchanger
where it is cooled. The air side pressure drop-flow rate dependency curve is shown in Figure 8.7 on
page57.
Vertiv | Liebert® DCD™ User Manual | 13
