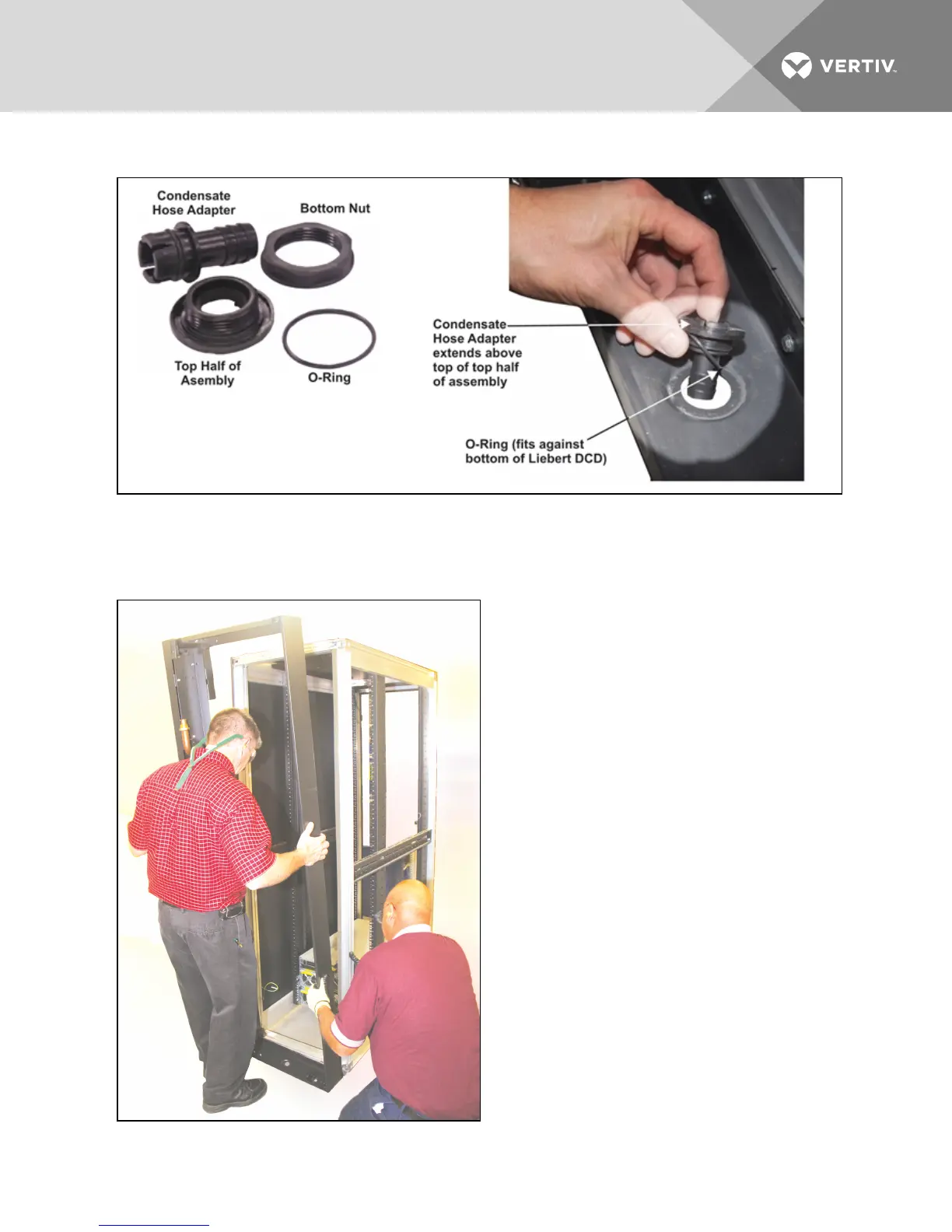

Figure 4.4 Condensate drain assembly
11. Connect the Condensate Hose Adapter to the Condensate Tray.
12. Lift the Liebert DCD frame and align it with the server rack again.
Figure 4.5 Align the Liebert DCD frame with the rack
Vertiv | Liebert® DCD™ User Manual | 21
