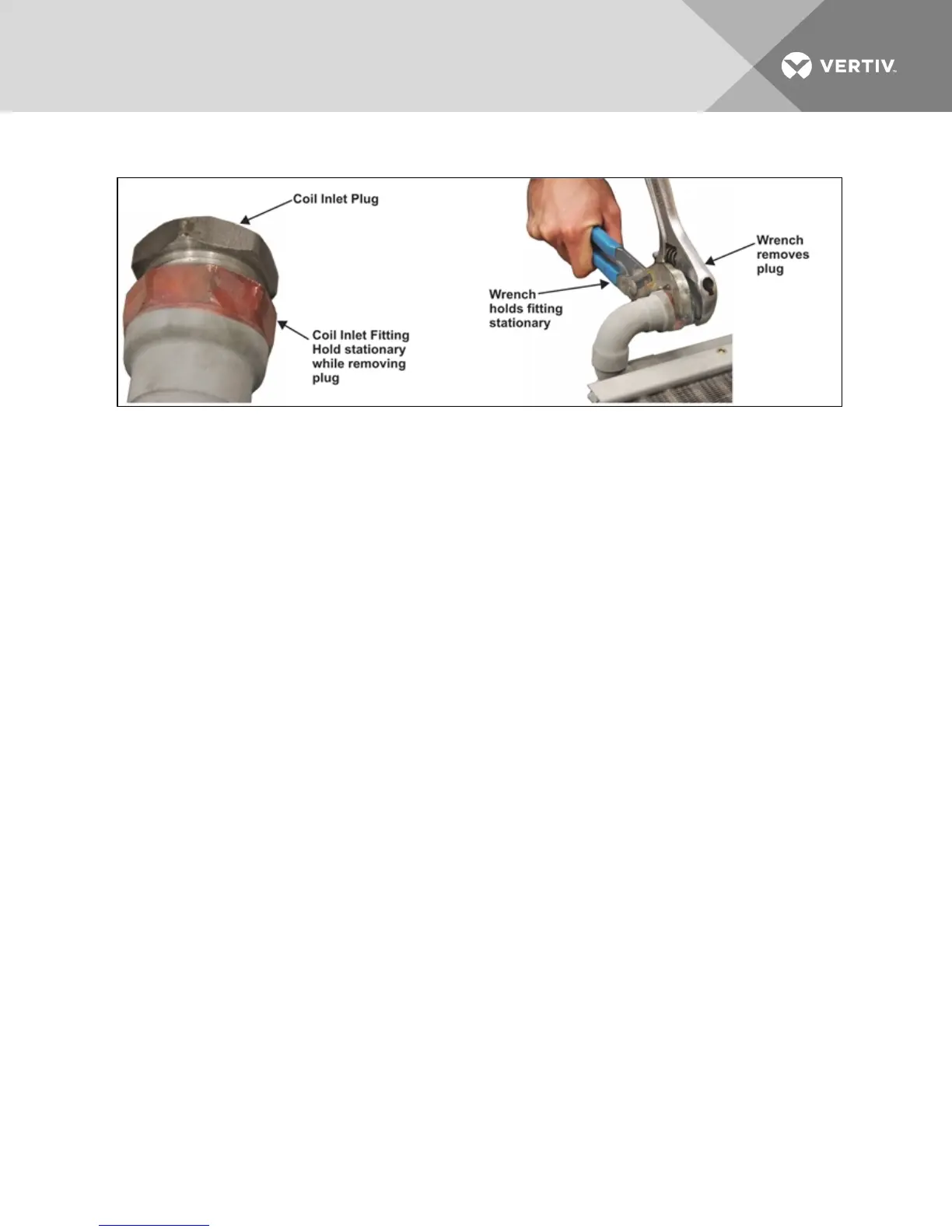

Figure 4.9 Loosen the coil plug
6. Remove any debris and wipe the threaded surfaces clean.
7. Align the door to the frame (see Figure 4.10 on the facing page).
8. Set the door in the frame—Angle the bottom of the door toward the frame and insert the door
(see Figure 4.10 on the facing page).
NOTE: Performing this step may be easier if a board or similar object is placed under the DCD frame to
hold it in place.
Vertiv | Liebert® DCD™ User Manual | 24
