Liebert DCD - 5 PIPING; System Connection Configuration

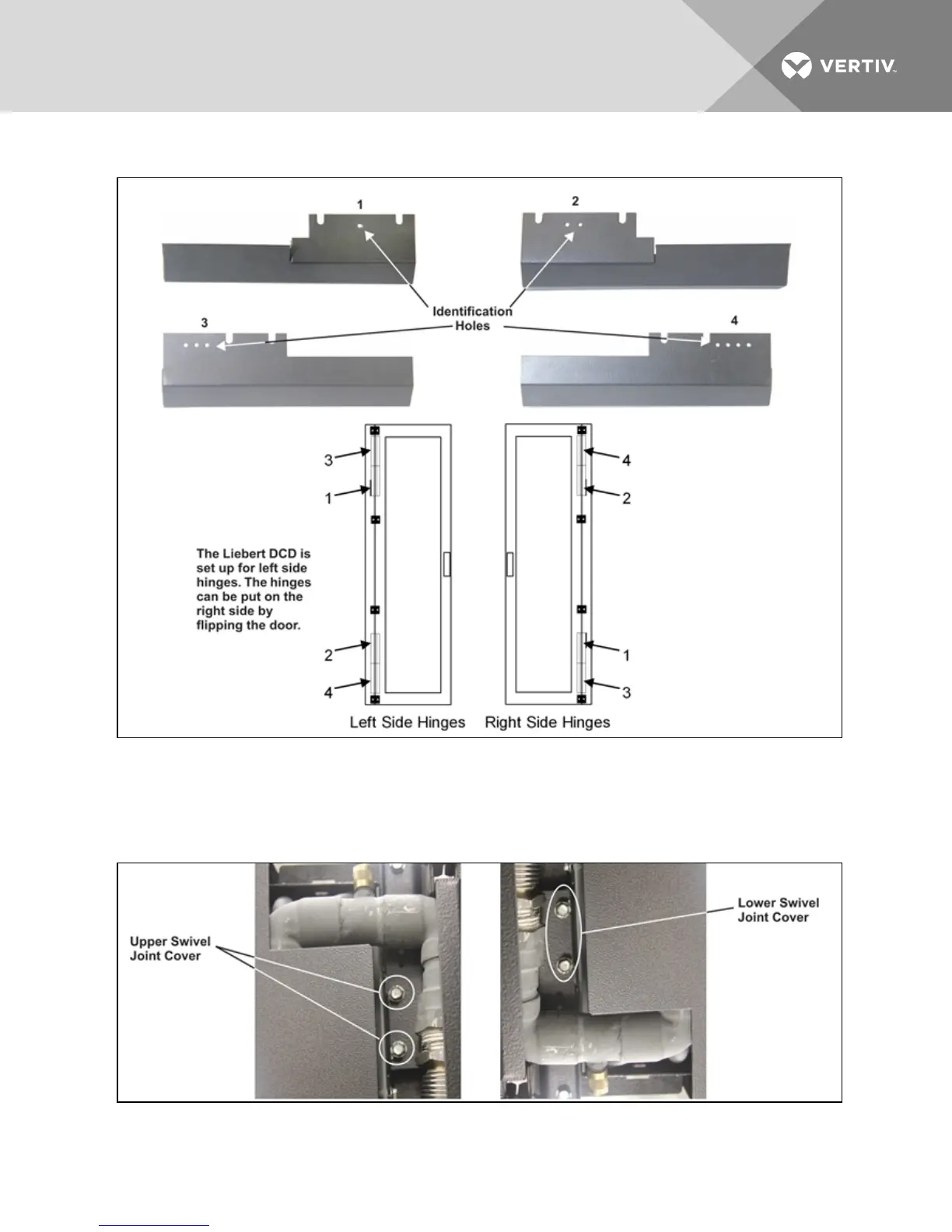

Figure 4.15 Swivel joint cover identification and location
1. Open the Liebert DCD door; the door must be open for the Swivel Joint Covers to be installed.
2. Install the outer Swivel Joint Covers on the door (see Figure 4.16 below)
3. Install the inner Swivel Joint Cover on the frame (see Figure 4.17 on the next page).
Figure 4.16 Outer swivel joint cover locations
Vertiv | Liebert® DCD™ User Manual | 29
