Major Components
9
3.2 Internal Battery Packs
The UPS has two internal battery packs behind a battery access door on the front of the unit. Each
internal battery pack is fitted with a connector to link to the UPS.

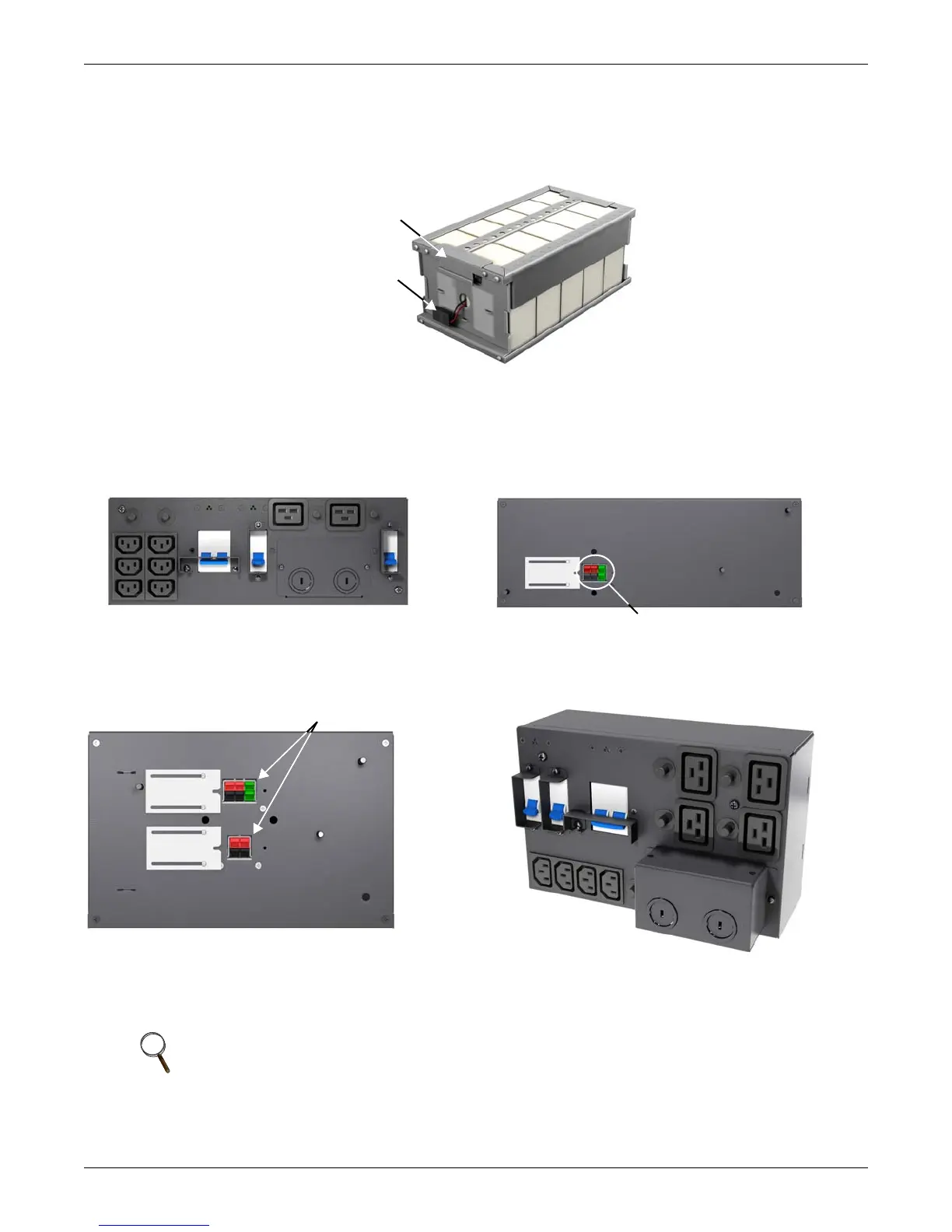

Figure 3 Internal battery pack with connector
3.3 Removable Power Distribution Box
The UPS arrives with a power distribution pack installed. This box always contains the UPS input
circuit breaker.
Figure 4
Power distribution box for GXT3 5000VA and 6000VA models
Figure 5 Power distribution box for GXT3 10,000VA model
NOTE
Hardwire and hardwire/receptacle boxes that include a manual bypass switch allow
AC power to continue to flow from the mains input to the load while the box is removed
from the UPS. For details, refer to 5.3 - Connect Input/Output Power.
Battery Connector
Front of Battery Pack
GXT3 10,000 Battery
Pack shown; 5000 and
6000VA battery packs
have same features
Battery Handle
Outer Surface View Power Distribution
Box for 5000VA and 6000VA models
PD2-CE6HDWRMBS
Quick-Connect
Front View
Power Distribution Box for 10000VA model
PD2-CE10HDWRMBS
Inner Surface View
Power Distribution Box for 10000VA model
PD2-CE10HDWRMBS
Quick-Connects
