12

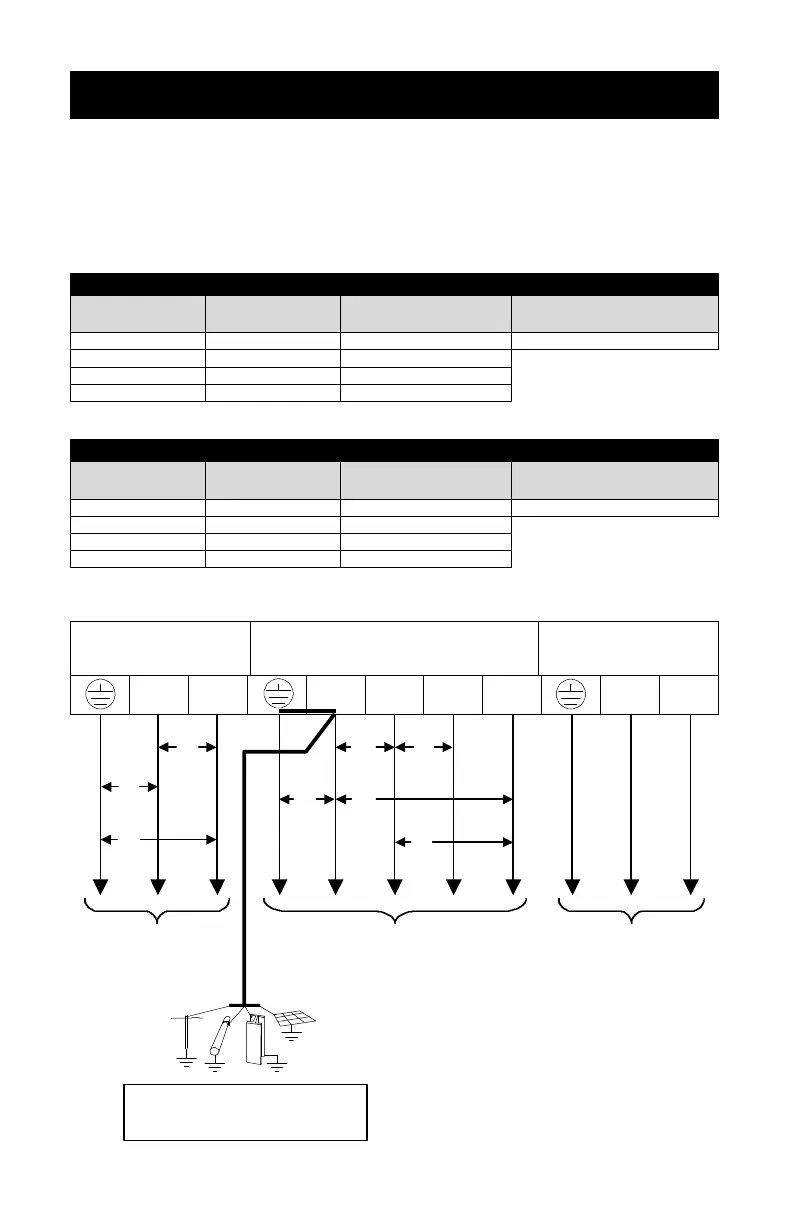

GXT6000T / 10000T - 208X UPS ONLY
Models whose part number ends with a “208X” are fitted with a single-phase
isolating output transformer and are separately derived sources. The output
neutral is already bonded to ground on the output terminals with a Bonding
Jumper (see NEC 250-5d, 250-26, 250.91, 250.92). The output L1 and L2
terminals are not connected to the input L1 and L2.
GXT6000T-208X CONNECTIONS
CONNECTION
CURRENT
RATING
Recommended
Wire Size
Recommended External
Overcurrent Protection
INPUT 28 AMPS 8 AWG (10 mm²) 40 AMPS
OUTPUT @ 208V 26 AMPS 8 AWG (10 mm²)
OUTPUT @ 120V 45 AMPS 8 AWG (10 mm²)
BATTERY 33 AMPS 8 AWG (10 mm²)
SIZE GROUNDING (PROTECTIVE EARTH) CONDUCTORS EQUAL TO CIRCUIT CONDUCTORS
GXT10000T-208X CONNECTIONS
CONNECTION
CURRENT
RATING
Recommended
Wire Size
Recommended External
Overcurrent Protection
INPUT 45 AMPS 6AWG (16 mm²) 60 AMPS
OUTPUT @ 208V 43 AMPS 6AWG (16 mm²)
OUTPUT @ 120V 75 AMPS 6AWG (16 mm²)
BATTERY 39 AMPS 6AWG (16 mm²)
SIZE GROUNDING (PROTECTIVE EARTH) CONDUCTORS EQUAL TO CIRCUIT CONDUCTORS
INPUT
UTILITY
OUTPUT
NOTE 4
OPTIONAL
BATTERY
L
1
L
2
N L
1
L
2
L
2A
+ -
208
120
120
240
NOTE 5
NOTE 6
OUTPUT TO LOAD
NOTE 2
OPTIONAL
BATTERIES
NOTE 3
208
Grounding Electrode System
or Protective Earth System
0
INPUT TO UPS
NOTE 1
