GXT6000T / 10000T - 240X ONLY
Models whose part number ends with a “240X” are fitted with a single-phase
isolating output transformer and are separately derived sources. The output
neutral is already bonded to ground on the output terminals with a Bonding
Jumper (see NEC 250-5d, 250-26, 250.91, 250.92). The output L1 and L2
terminals are not connected to the input L1 and L2.
GXT6000T-240X CONNECTIONS
CONNECTION
CURRENT
RATING
Recommended
Wire Size
Recommended External
Overcurrent Protection
INPUT 27 AMPS 8 AWG (10 mm²) 40 AMPS
OUTPUT @ 230V 25 AMPS 8 AWG (10 mm²)
OUTPUT @ 120V 50 AMPS 8 AWG (10 mm²)
BATTERY 27 AMPS 8 AWG (10 mm²)
SIZE GROUNDING (PROTECTIVE EARTH) CONDUCTORS EQUAL TO CIRCUIT CONDUCTORS
GXT10000T-240X CONNECTIONS
CONNECTION
CURRENT
RATING
Recommended
Wire Size
Recommended External
Overcurrent Protection
INPUT 44 AMPS 6AWG (16 mm²) 60 AMPS
OUTPUT @ 230V 42 AMPS 6AWG (16 mm²)
OUTPUT @ 120V 83 AMPS 6AWG (16 mm²)
BATTERY 44 AMPS 6AWG (16 mm²)
SIZE GROUNDING (PROTECTIVE EARTH) CONDUCTORS EQUAL TO CIRCUIT CONDUCTORS

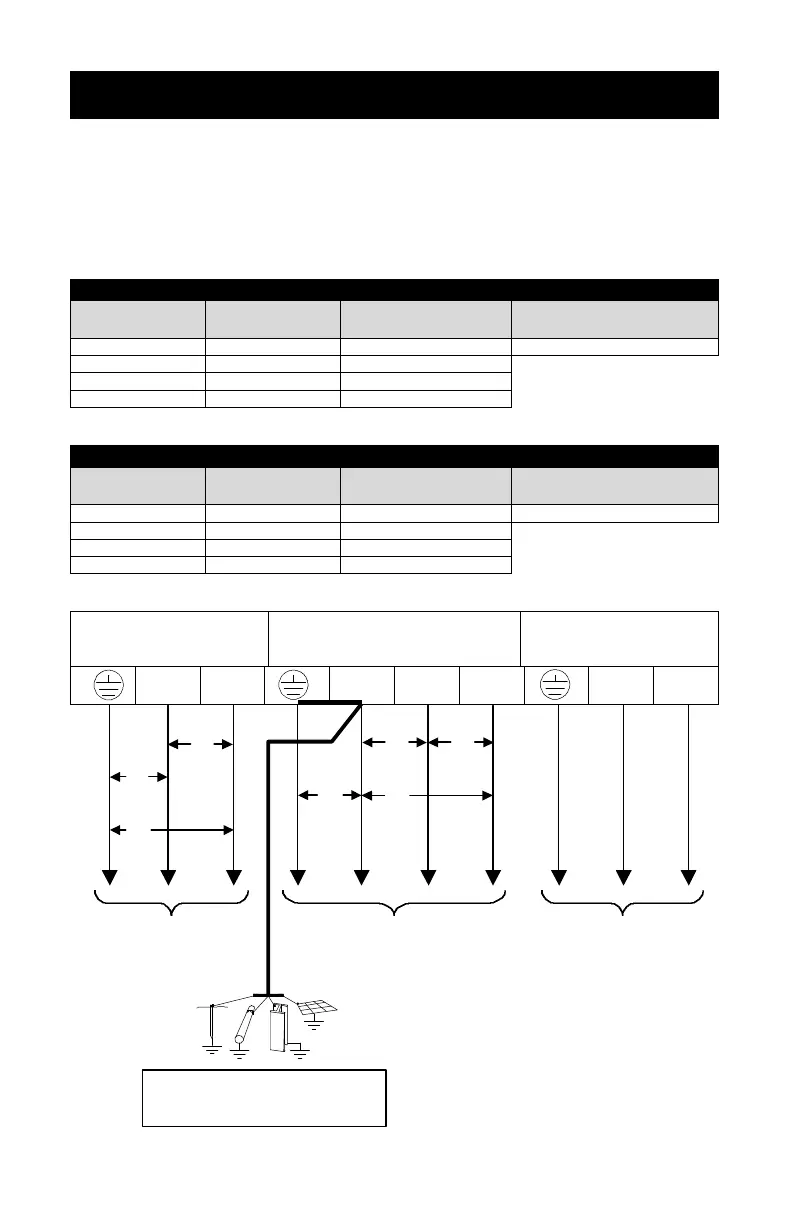

INPUT
UTILITY
OUTPUT
NOTE 4
OPTIONAL
BATTERY
L
1
L
2
N L
1
L
2
+ -
240
NOTE 5
NOTE 6
INPUT TO UPS
NOTE 1
OUTPUT TO LOAD
NOTE 2
Grounding Electrode System
or Protective Earth System
240
120
120
0
OPTIONAL
BATTERIES
NOTE 3
