M8 / M8P Installation Manual
6 7
Reverse Protection Diodes
Reverse Protection Diodes
The outputs of the M8/M8P have built-in reverse protection diodes. If a delay in lock release is present the diode from that zone
should be removed from the circuit as shown below.
I Only remove the diodes from outputs requiring their removal!

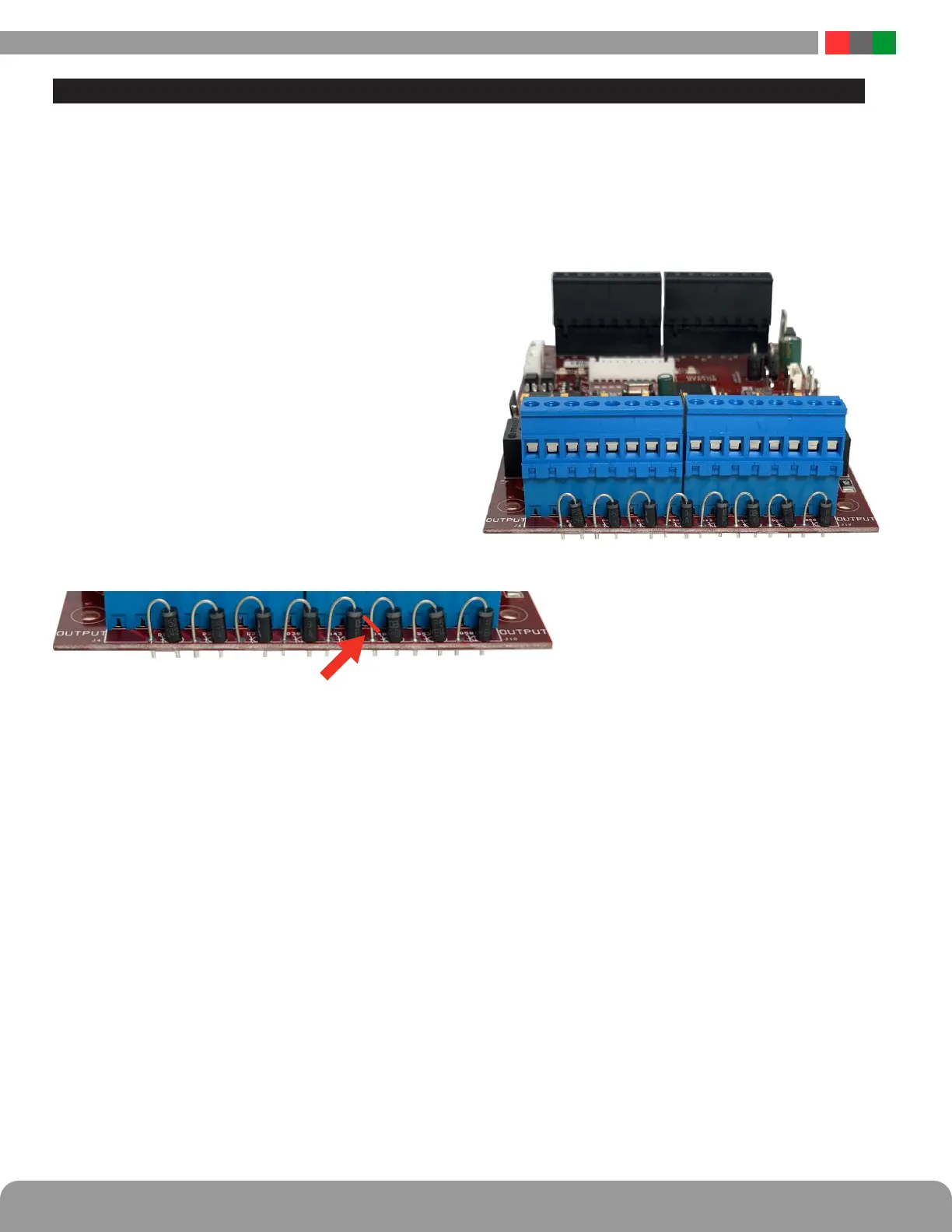

M8 / M8P Diode Removal
The diodes on the M8/M8P are on the top side of the board
between the output terminals and the edge of the board. To re-
move the diode from the output circuit, simply cut and separate
the exposed diode lead for the desired output zone - leave the
diode body soldered to the pcb.
