Light Sky IP3000 Aquabeam - 页 11

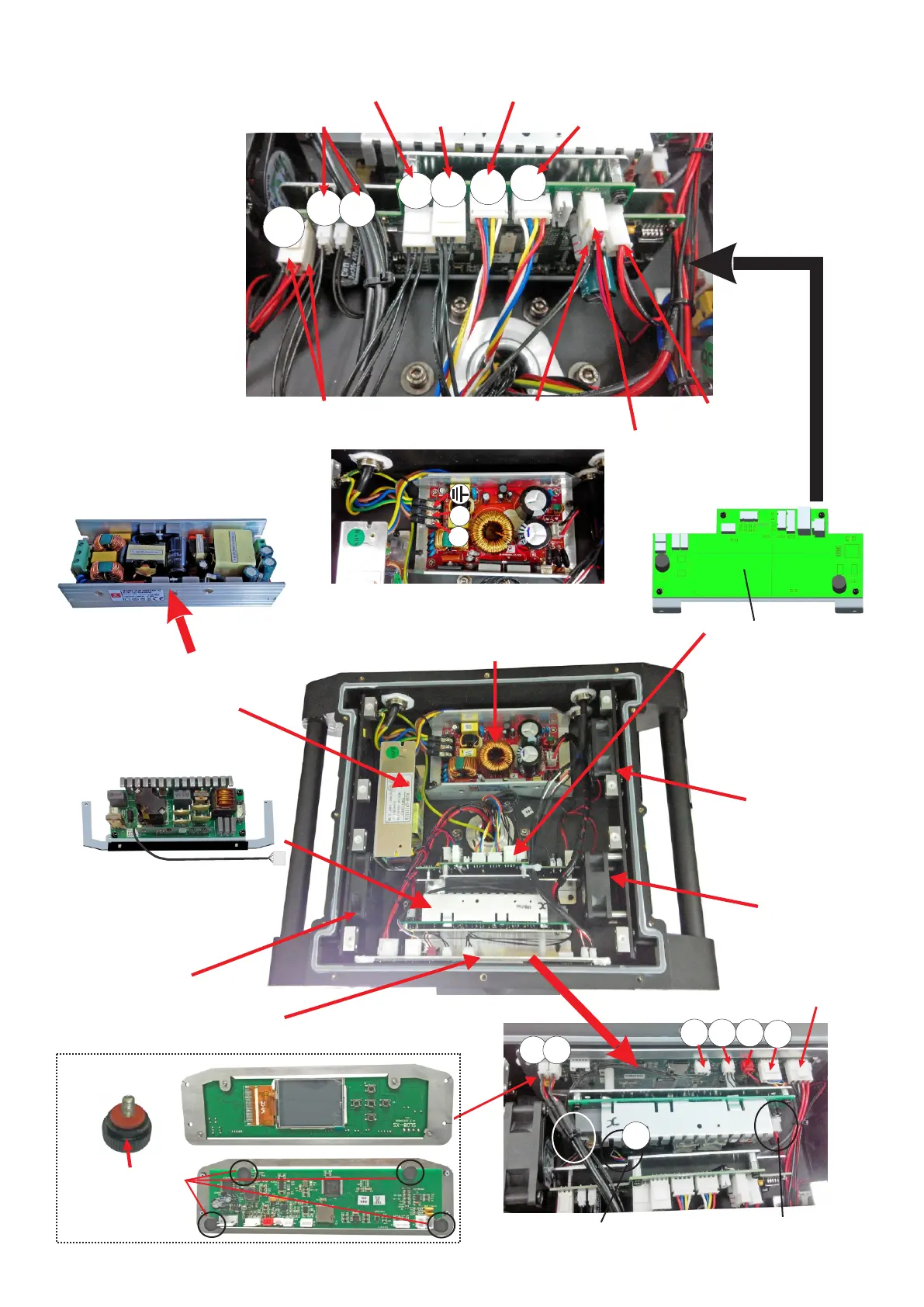

X/Y PCB part
E-Ballast
Item number: M1501230
Display board
Item number: Z0600300004A
Item number: M10 00954A
VUP150F28A344
IN:100-240VAC 50/60 H z
OUT:28VDC 5.36A
150W Power supplier
Item number: M10 00962
RUP6 00F380A
AC10 0-240VAC 380, 1.58A
600W P ower supplier
SW
TEM
LAMP
BUS
DMX D M X
Power supply
LAMP
E-ballast- Lamp
Lamp control cable: LA M P
N
L
BUS
BUS1
FAN
X
Y
X1
Y1
Base 12V fan cable U-arm 24V fan cable
X/Y PCB power cable
Base 24V fan cable
Signal cable
X motor cable
Y motor cable
X sensor cable
Y sensor cable
Fan
Item number: M1200111
Fan
Item number: M1200101
Fan
Item number: M1200101
manu al scr ew
10
