IP series CMY and color wheel replacement

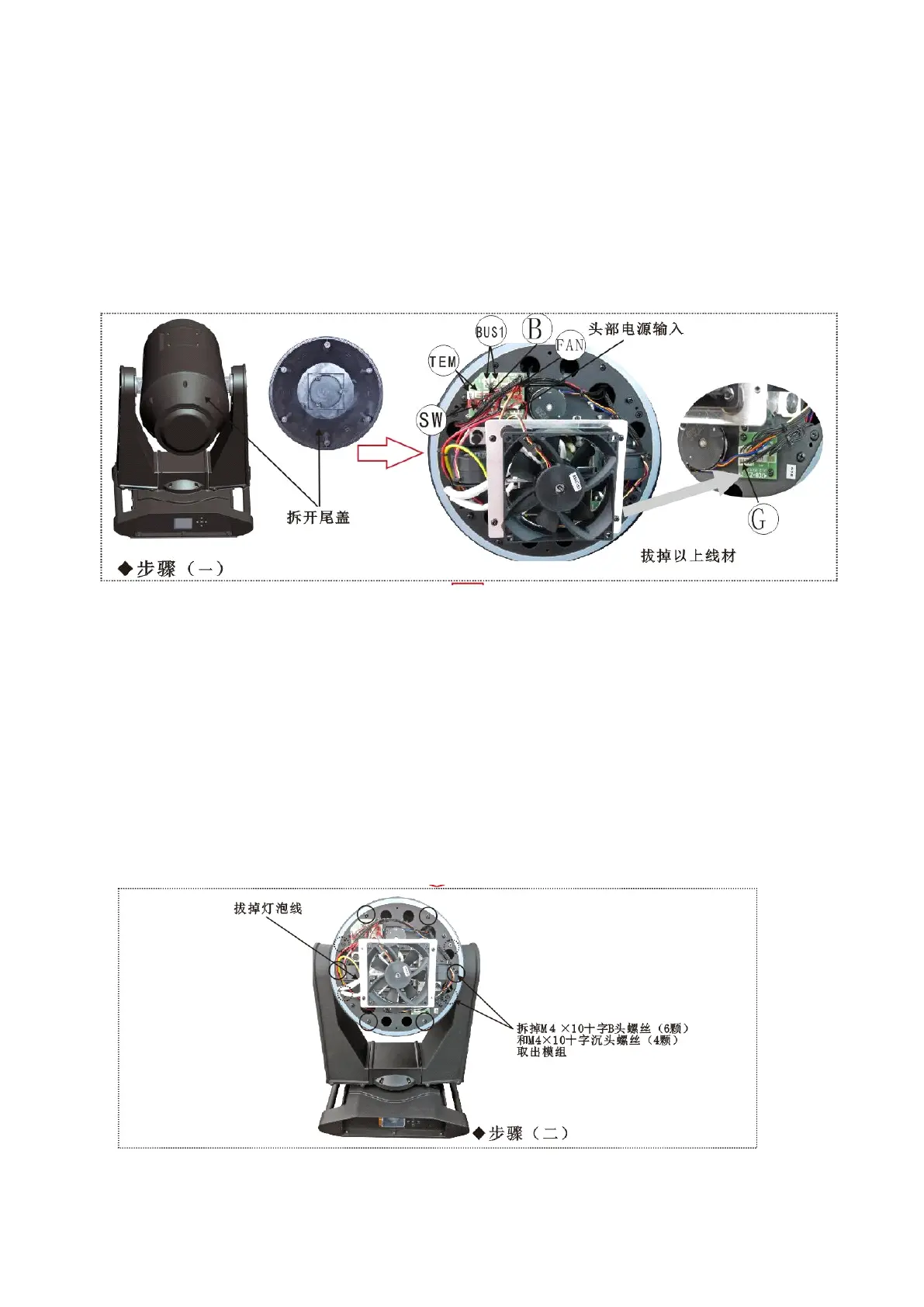

Step 1 : as following pics show
A: Open the base cover
B: Pull out SW, TEM, BUS1, B, FAN and AC in cables . Pull out all the cables show in the
photo.
36
Step2 ,as following photos show,
A, Pull out the lamp cable
B, Dismantle 6 pcs M4*10 screwA and 4 pcs M4*10 ScrewB.
C, Get out of the Module.
To Next Page
