Lighthouse ApexRemote Operating Manual
3-8 248083447-1 Rev 1
the same as for the PoE models. See Figure 3-9.

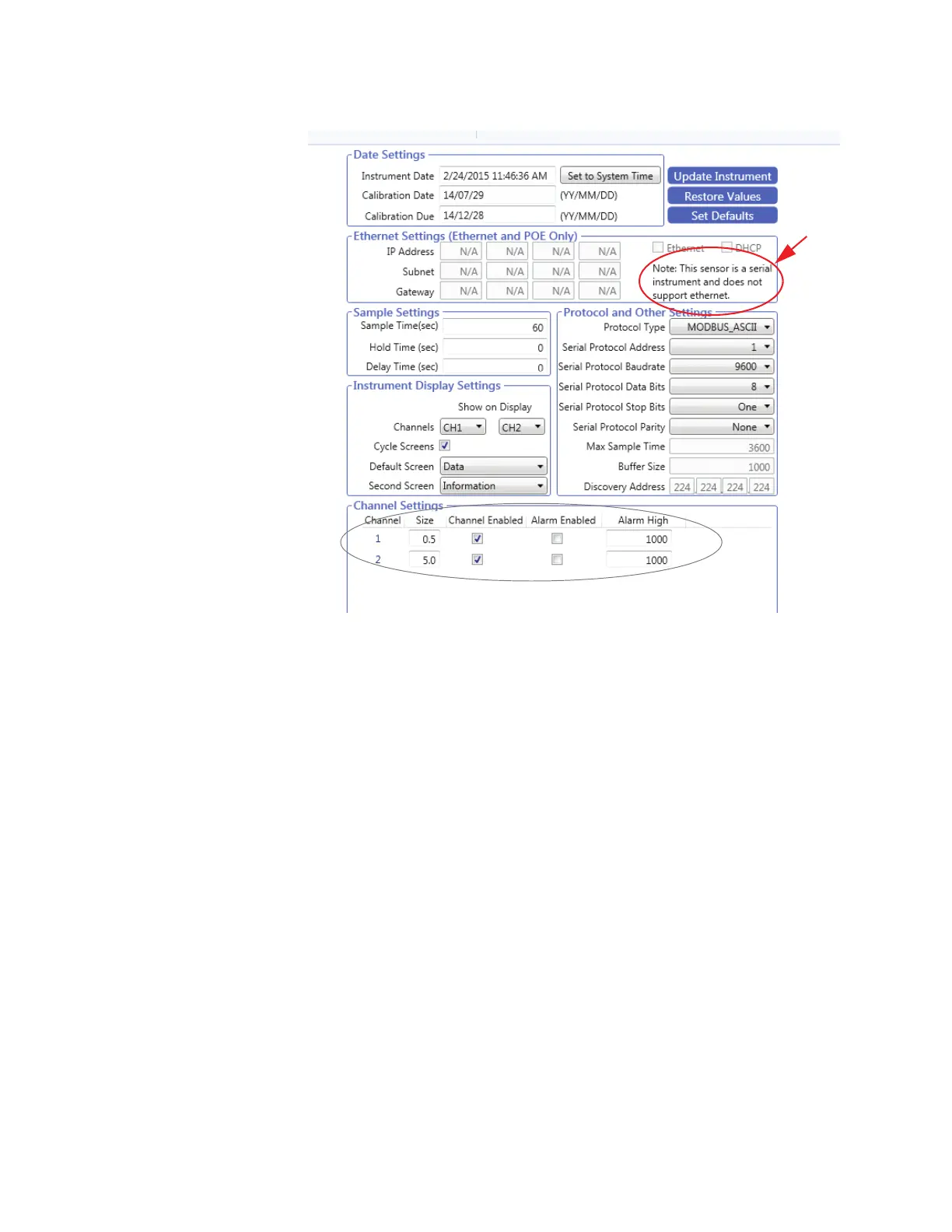

Figure 3-9 ApexRemote Serial Default Settings
The ApexRemote Serial address is set via the switches on the bottom
of the instrument or through the Setup Tool program, based on Switch
7’s state (see Table 4-1 on page 4-2). The Address can be shown in the
Display Window, if this option is installed.
The ApexRemote Serial must have its address set to a correct value
or it won’t be recognized by various management programs, including
LMS Express and LMS Express RT. The full switch address list can be
found in Table 4-3 on page 4-3.
Make sure that changes are saved to the instrument by pressing the
Update Instrument button on the screen shown in Figure 3-9.
Remove the SmartPort cable after settings are completed - do NOT
leave it connected to the ApexRemote during operation or the
resultant damage will void the instrument’s warranty!
