4.4 TruScan Integrated into CSO model SL980
The controls on the Slit lamp LDU are used to adjust the Laser beam properties for
delivery to the patient. On the Slit lamp LDU it is possible to adjust the spot size and the
beam position relative to the Slit lamp Illumination. More detailed breakdown
description of these delivery systems can be found below and next few pages.
VISIBLE LASER RADIATION
AVOID EYE OR SKIN EXPOSURE
TO DIRECT OR SCATTERED RADIATION
CLASS 4 / IV LASER PRODUCT
IEC60825-1 2007
SD3100-03
CAUTION/DANGER
5 6
Inside
4
2
1
3
7
14
8
5
14
24
36

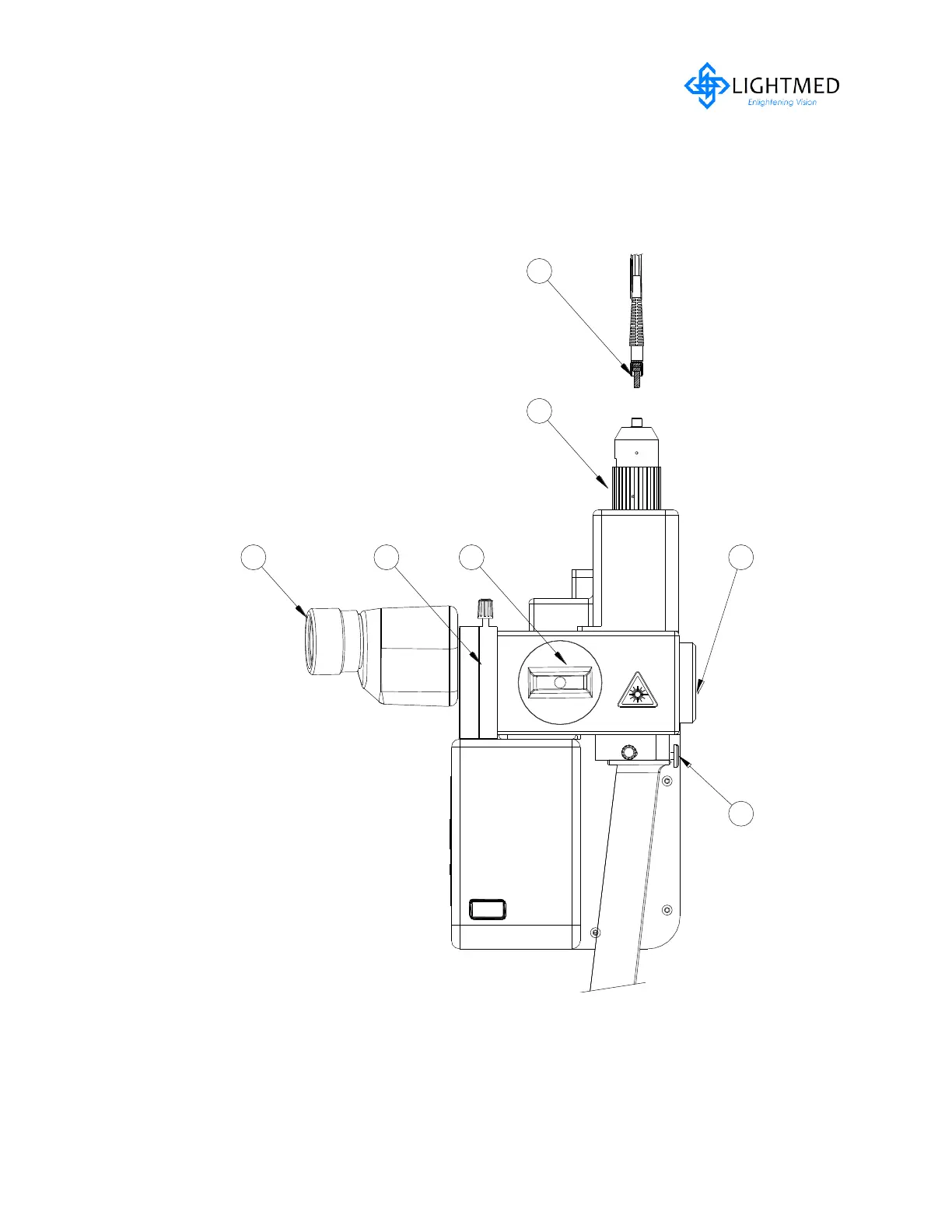

Figure 4.9
Integrated Slit lamp LDU Controls
To Next Page
