TruScan 532 Single - Wavelength – Operators Manual Rev. No 02 Page 76 of 114

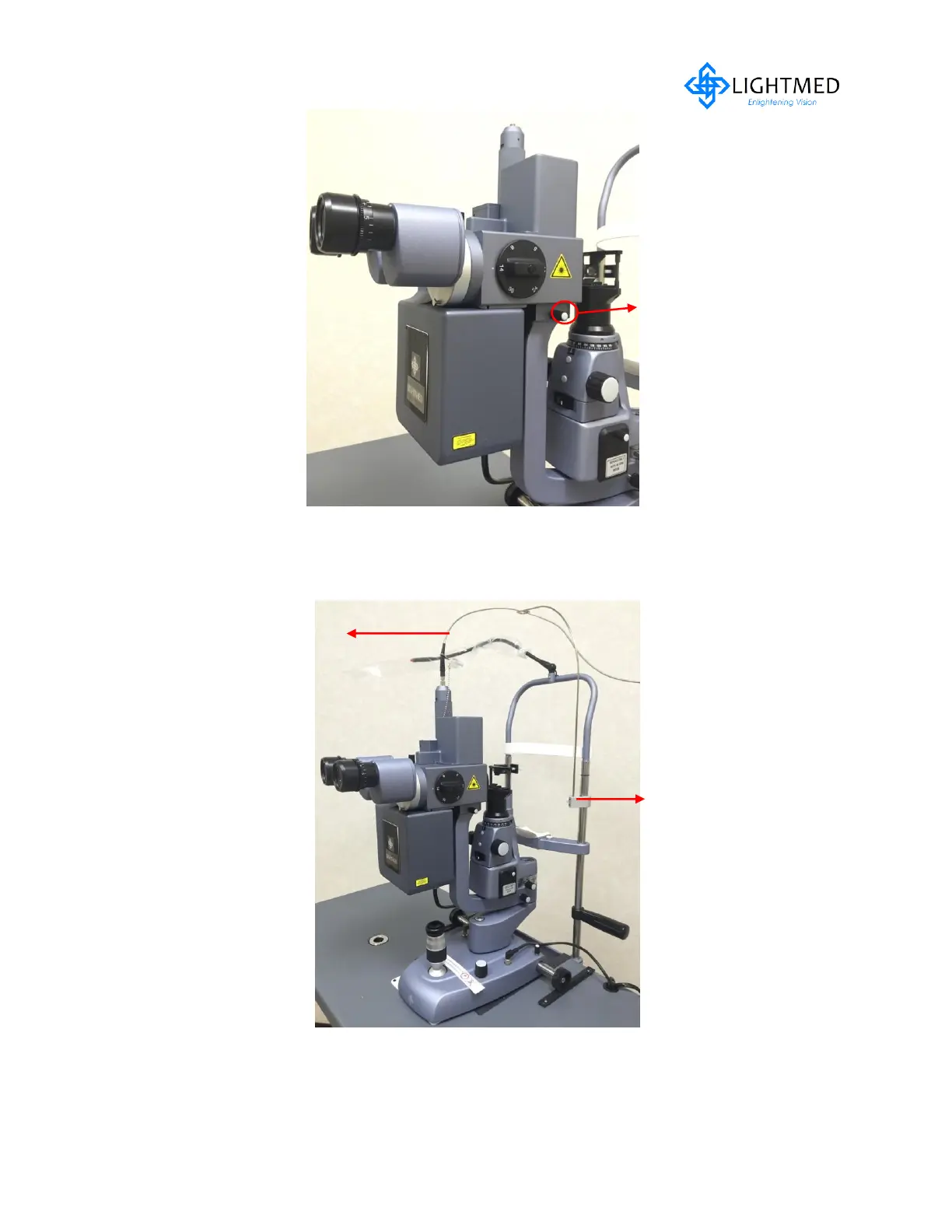

Figure 5.11 (b) Delivery housing Fitting process
Figure 5.12 Mounting Chinrest ass'y and fiber holder
and fitting delivery fiber to Truscan aperture
Locking screw
Fiber holder clamp
Delivery fiber
