1. Locate the four (4) self-tapping sheet metal screws.
2. Utilizing existing holes on the vertical section of the ceiling rail (center of the hole
to the base of the rail must be a minimum of 15mm - see figure 8), drill two screws
on each 600mm side of the TCQ (see figure 15). Drilling these screws into the
designated areas of the TCQ chassis will not cause harm to the product (see figure
15).
NOTE: Do not drill in the area designated with yellow tape as this could aect audio
quality and void the warranty.
3. To continue with installation, go to Page 22: Connecting Wire to Amplifier.

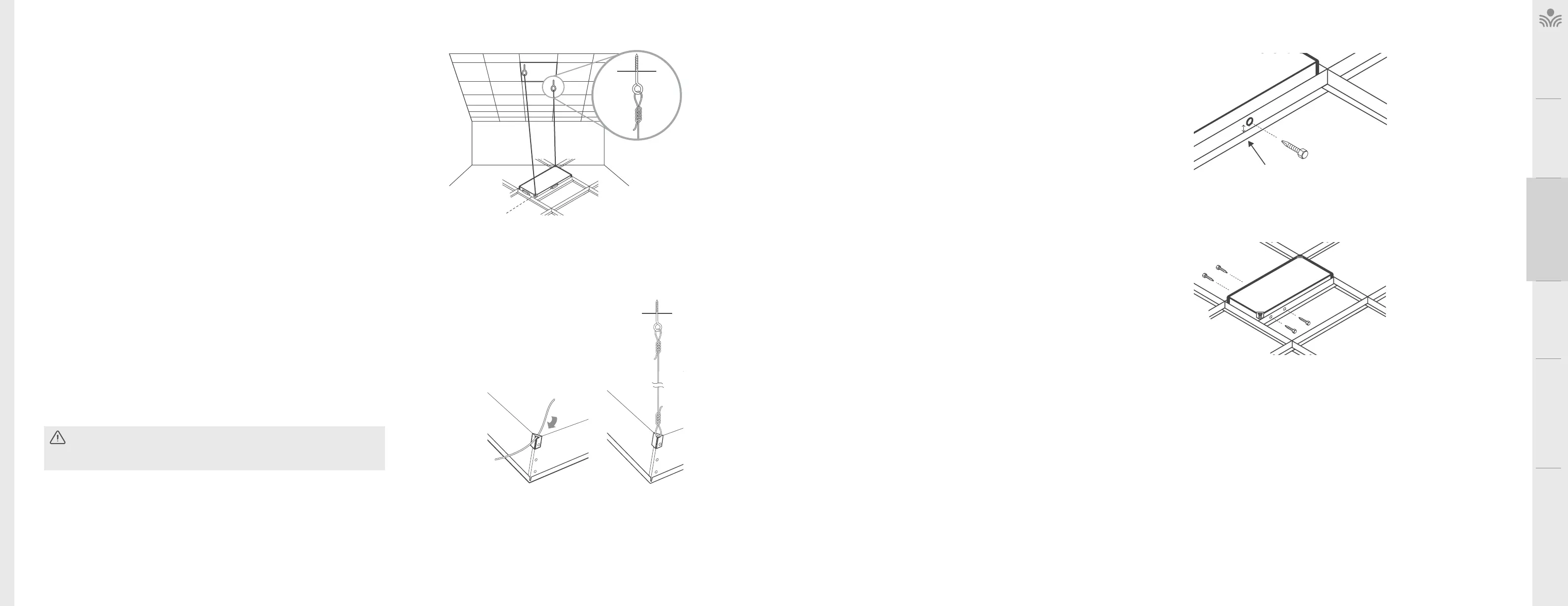

FIGURE :
SECURE WITH SELF-TAPPING SCREWS INTO THE TCQ
FIGURE :
SECURE WITH SELF-TAPPING SCREWS INTO THE TCQ
.” MIN.
(MM)
SECURE TO CEILING GRID (OUTSIDE U.S. & CANADA ONLY)
FIGURE :
ATTACHING THE SAFETY WIRE TO THE BUILDING STRUCTURE
FIGURE :
SECURE THE WIRE IN THE TWO SAFETY WIRE TABS
SAFETY WIRE TAB
ANCHOR OR
EYE SCREW
SECURING THE TCQ SPEAKER (U.S. & CANADA ONLY)
FOR MM X MM CEILING GRID
To comply with Building Codes, the TCQ MUST be secured to the building
structure with two safety wires.
The TCQ has spacer brackets mounted on each of the four sides. With these brackets
installed, the TCQ will fit a standard 2’ x 2’ suspended ceiling grid. With the brackets
removed, it will fit a 600mm x 600mm ceiling grid.
Remove the spacer brackets from each of the four sides of the TCQ. Replace the two
screws into the woofer end of the speaker cabinet to ensure proper audio quality
Note: If your ceiling grid is any other dimension than mentioned above, contact your
local Lightspeed representative.
1. Locate the 6m length of safety wire. The safety wire needs to be permanently
attached to the solid building structure with metal clips, tie point studs, concrete
anchors or eye screws designed for the specific structure material. The specific
anchors will need to be provided by the installer.
2. Cut the safety wire in half, leaving two 10 pieces.
3. Install the appropriate anchor into the building structure (see figure 1).
4. Loop one end of the safety wire through the anchor (or eye screw), then twist it
around itself at least five times. Repeat for the second anchor tie point.
5. Place the TCQ into the desired grid location.
Caution: Make sure the TCQ is stable on the grid rails with side brackets capturing
the T-bar grid. If not stable, there could be a danger of it falling until safety wires
are attached.
6. Loop the other end of the safety wire through one of the tabs on the TCQ (located
in opposite corners). Pull the wire through until it is taut and twist it around itself
at least five times to secure the TCQ and cut o any excess wire if needed (see
figure 2).
7. Repeat with securing the second safety wire to the other tab.
