Lightware DVI-OPT-TX220-ST-Pro Quick Start Guide

www.lightware.eu Firmware version: 1.1.3
For technical support contact support@lightware.eu Document revision: 1.1
DVI-OPT-TX220-ST-Pro
Quick Start Guide

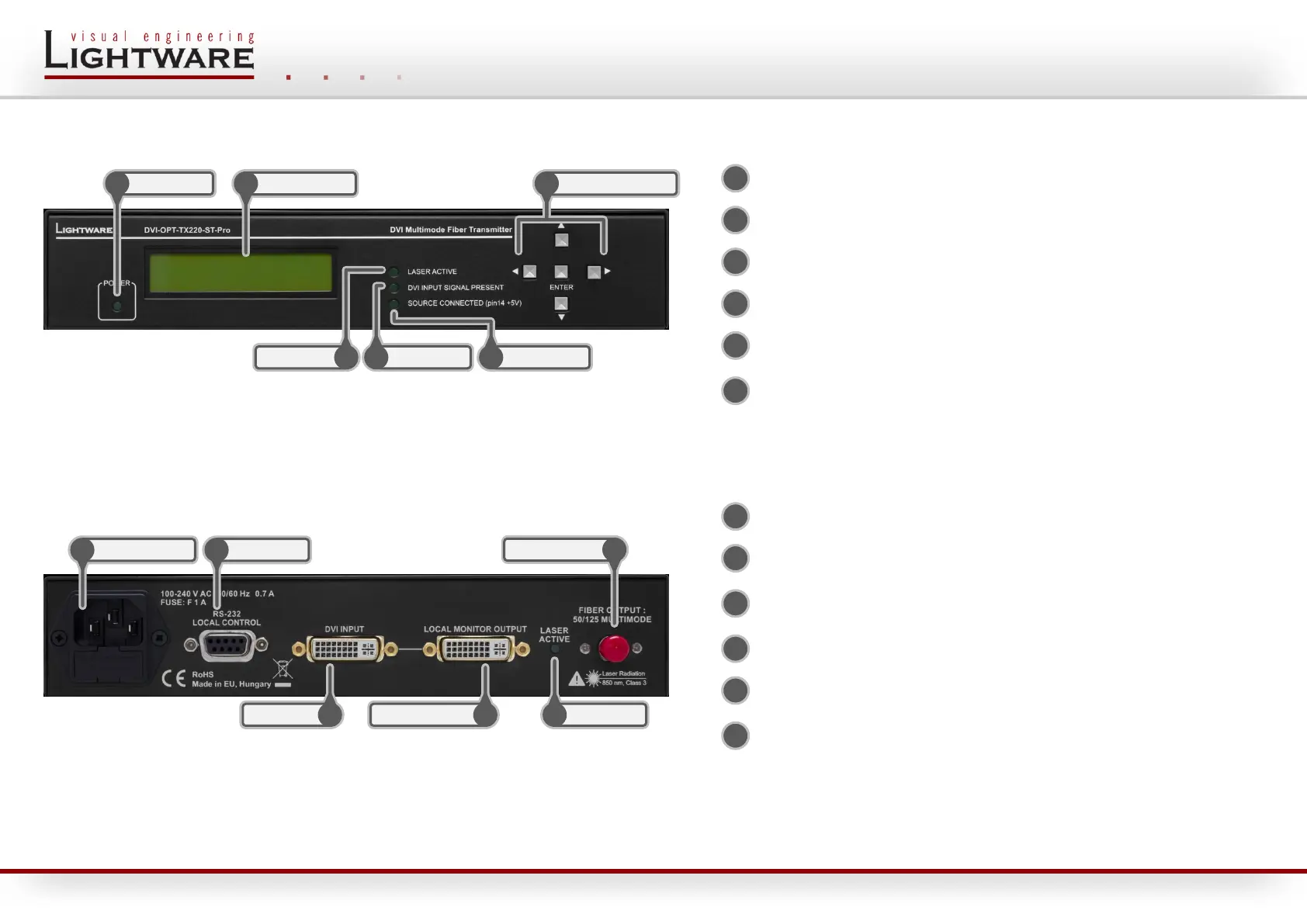

Power LED
Lights green when the unit is powered on.
Menu display
Displays status information and menu operation.
Menu navigation
Up (▲), down (▼), left (◄), right (►) and ENTER buttons.
Laser LED
Indicates when the laser driver is enabled.
Signal LED
Indicates when a valid DVI signal is detected on the DVI
INPUT connector.
Source LED
Indicates that a powered-on DVI source is connected to the
unit (detects +5V signal on Pin 14 of the input DVI
connector).
AC connector
Standard IEC-320 C14 power connector.
Serial port
D-SUB connector. The device is controllable via RS-232
connection.
ST connector
Connect a compatible Lightware fiber receiver unit by using
an ST connector equipped multimode fiber cable.
DVI input
Connect single link DVI source.
Monitor output
A local display device can be connected to monitor the
outgoing signal.
Laser LED
Green LED indicates enabled laser driver to help to avoid
accidental look into the laser beam.
1
1
2
3
4
5
6
Power LED
1
Menu display
2
Menu navigation
3
Laser LED
4
Signal LED
5
Source LED
6
DVI input
4
AC connector
1
ST connector
3
Serial port
2
Monitor output
5
Laser LED
6
2
3
4
5
6
