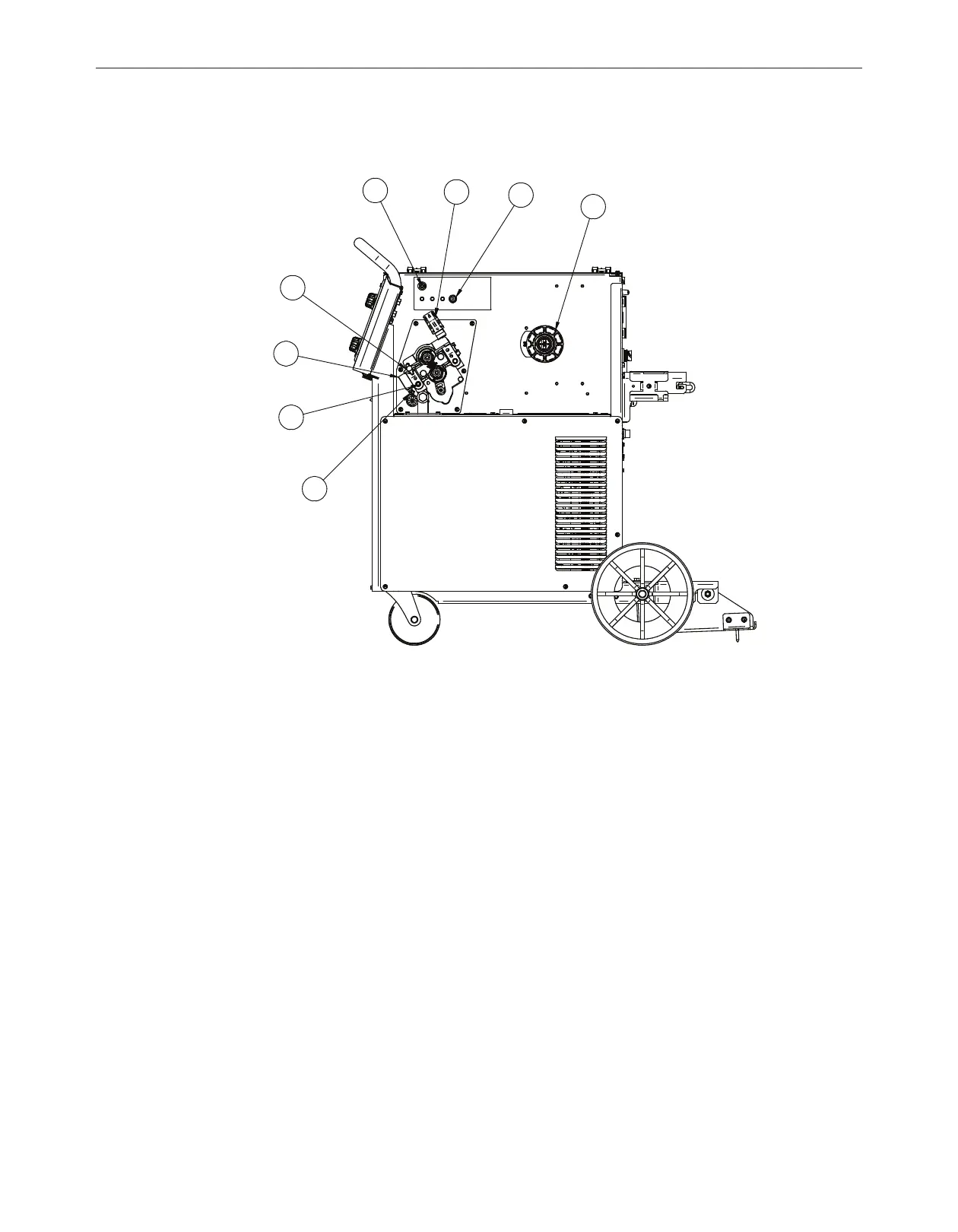

INTERNAL CONTROLS - STANDARD AND ADVANCED MODELS
1. SPINDLE BRAKE
2. WIRE DRIVE PRESSURE ARM
3.
THUMB SCREW, FOR SECURING THE WELDING GUN
4. GUN BUSHING
5. SOCKET HEAD CAP SCREW FOR SECURING
THE GUN BUSHING
6. GAS CONNECTION, GMAW OR FCAW GUN
7. CIRCUIT BREAKER
8. COLD INCH / GAS PURGE SWITCH
FIGURE B.4
POWER WAVE 300C OPERATION
®
B-7
1
2
3
4
5
6
7
8
