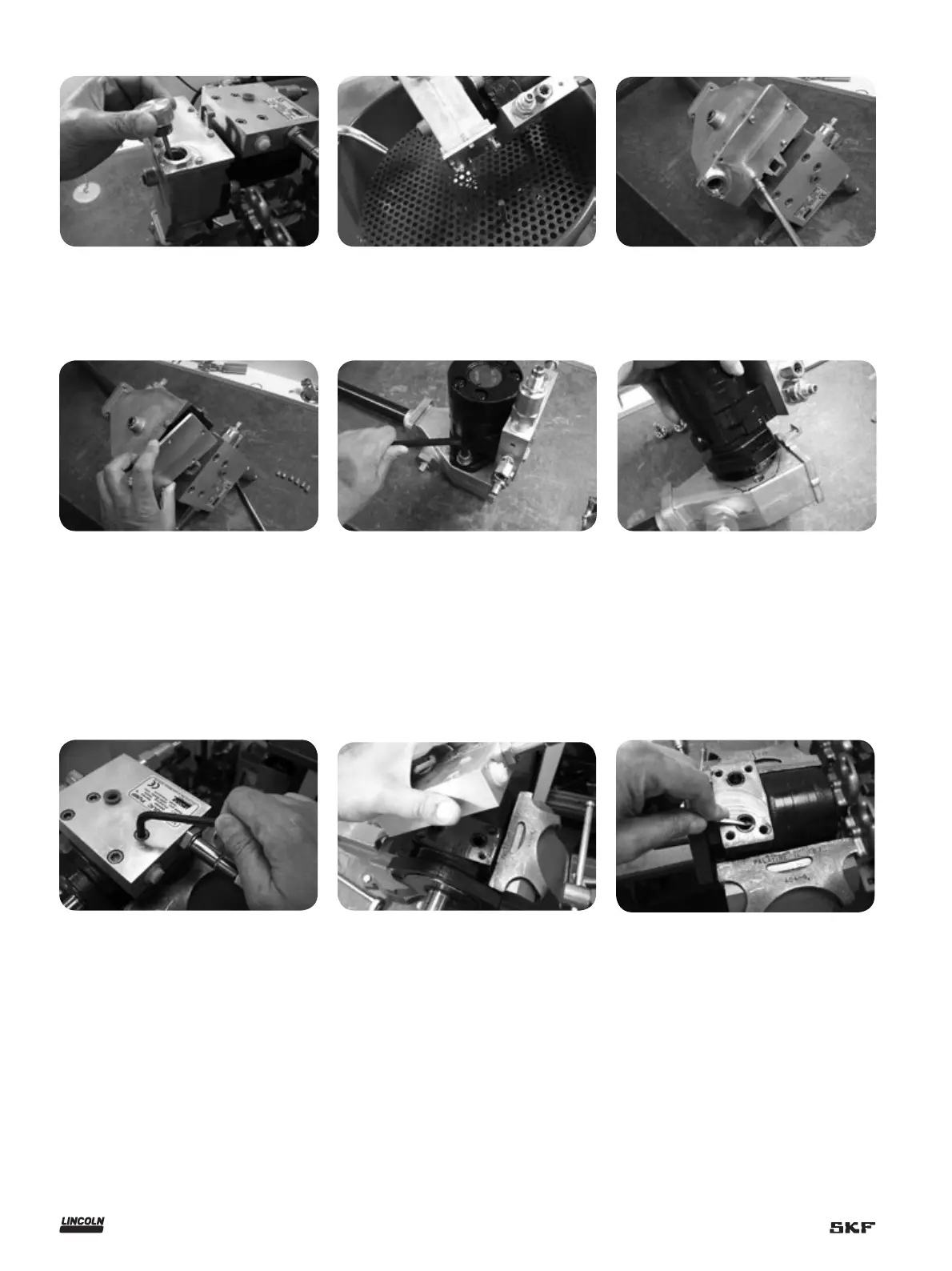

1 Remove dip stick (Item 30a). (Reassem-
bly torque: 10 - 15 in. lbs. (1.1 - 1.7
Nm).)
2 Drain crankcase oil (reassembly recom-
mendations: use SAE 10w30 motor oil
filled to dipstick mark (15 oz.)).
3 Remove housing cover screws (Item 28).
(Reassembly torque: 10 - 15 in. lbs. (1.1
- 1.7 Nm).) (Reassembly recommenda-
tions: replace screw gaskets, Item 29).
4 Remove housing cover (Item 30) and
gasket (Item 31). (Reassembly recom-
mendations; replace gasket.)
5 Remove the two hydraulic motor
mounting screws and lock washer (Items
51 & 51a). (Reassembly torque: 50 - 55
Ft. Lbs. (67.8 - 74.5 Nm).) (Reassembly
recommendations: Use service remov-
able thread locking compound such as
Loctite 242, or equivalent.
6 Remove hydraulic motor (Item 50) and
gasket (Item 69). (Reassembly recom-
mendations: Replace gasket and use
gasket dressing such as Loctite 510,
Loctite Aviation sealant 30516 or
equivalent.)
7 Remove four manifold mounting screws
(Item 71). (Reassembly torque: 20 - 25
Ft. Lbs. (27.1 - 33.9 Nm).)
8 Remove manifold assembly (Items 70
through 78). (Reassembly recommen-
dation: Replace O-rings, Item 68).
9 Remove O-rings (Item 68).
10
