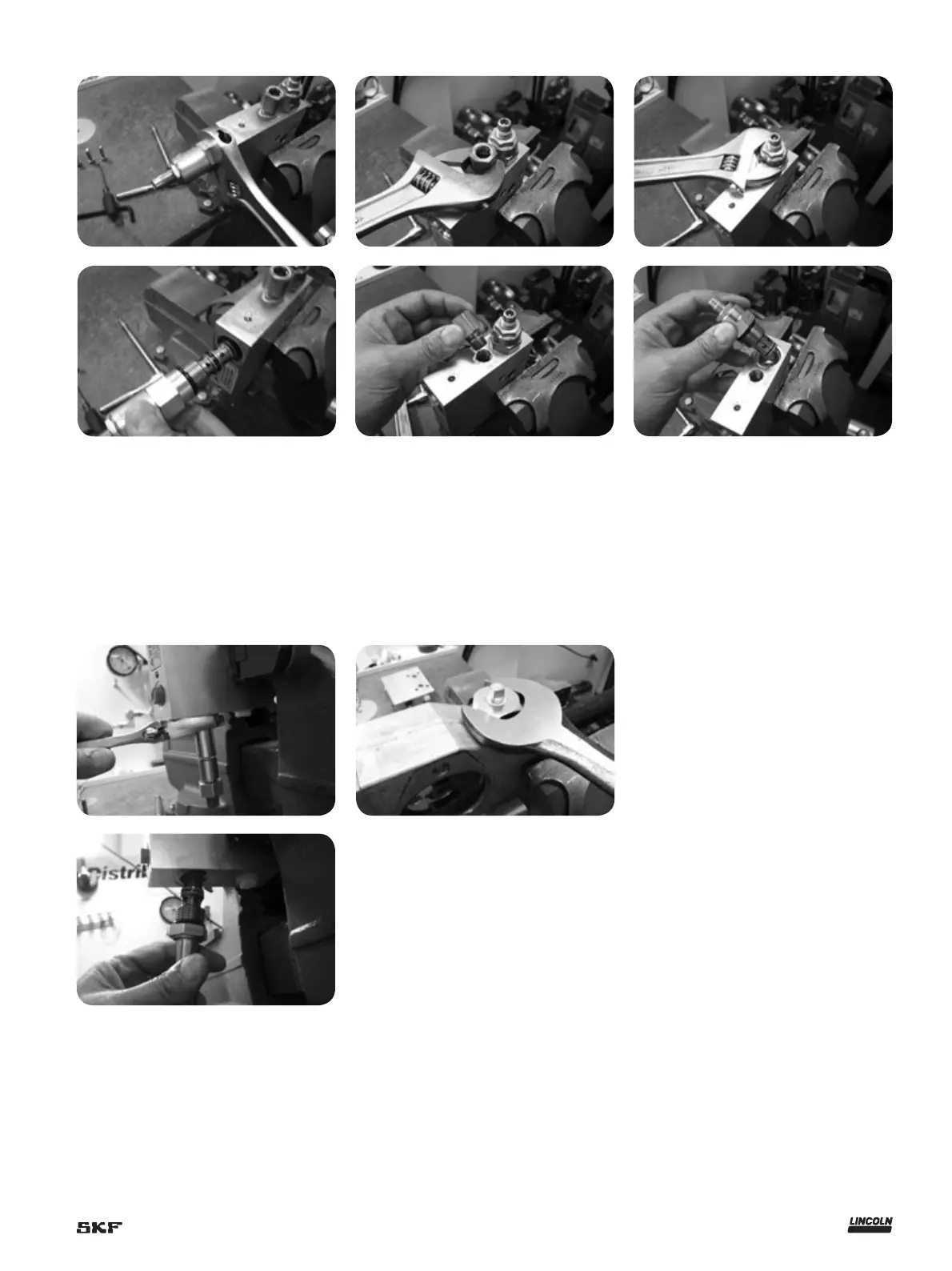

10 Remove pressure reducing valve (Item
77). (Reassembly torque: 20 - 25 Ft.
Lbs.(27.1 - 33.9 Nm).)
11 Remove orifice fitting (Item 78). (Reas-
sembly torque: 20 - 25 Ft. Lbs. (27.1 -
33.9 Nm), or enough to seal pipe
threads.) (Reassembly recommenda-
tions: use Loctite 592 pipe thread seal-
ant, or equivalent.
12 Remove hydraulic flow control (Item 70).
(Reassembly torque: 20 - 25 Ft. Lbs.
(27.1 - 33.9 Nm).)
13 Remove hydraulic solenoid valve (Item
73). (Reassembly torque: 20 - 25 Ft.
Lbs. (27.1 - 33.9 Nm).)
14 Remove the two outlet pin nuts (Item
32). (Reassmebly torque: 30 - 35 Ft.
Lbs.(40,7 - 47,5 Nm).) (Reassembly
recommendations: Use Loctite242 or
equivalent on outlet nut threads).
11
