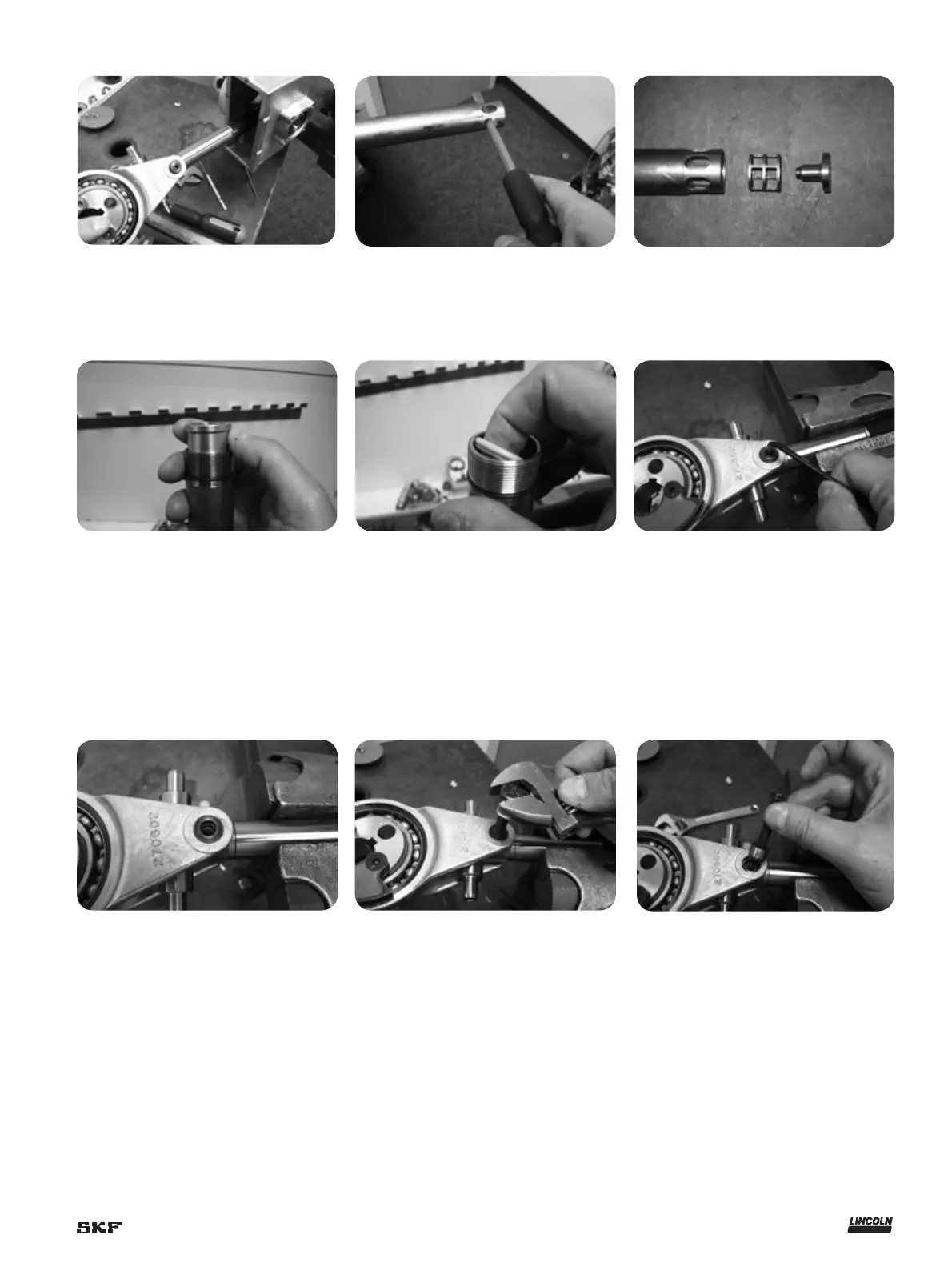

18 Pull pump element free of housing. 19 Remove housing tube (Item 56a). (Reas-
sembly Torque: 20 to 25 Ft. Lbs.(27.1 -
33.9 Nm).
20 Exploded view of housing tube (Item
56a), spacer (Item 56b) and Shovel Plug
(Item 58).
21 Remove bronze bushing (Item 57) 22 Remove oil seal O-ring (Item 53) and
backup washer (Item 54). (Reassembly
recommendation: replace O-ring seal
and backup washer. Backup washer
must be placed in tube first, then the
O-ring.)
23 Remove wrist pin bushing screws (Item
11). (Reassembly torque: 100-110 in.
lbs. (11.3 - 12.4 Nm).) Reassembly rec-
ommendations: use Loctite 242 or
equivalent on screw threads).
24 View of wrist pin bushing (Item 12). 25 Press out wrist pin bushing (Item 12)
with 5/16-24 bolt, (from kit 276275)
needed since pivot bushings often stick
in wrist pin anchor (Item 13a).
26 Remove wrist pin bushing (Item 12).
