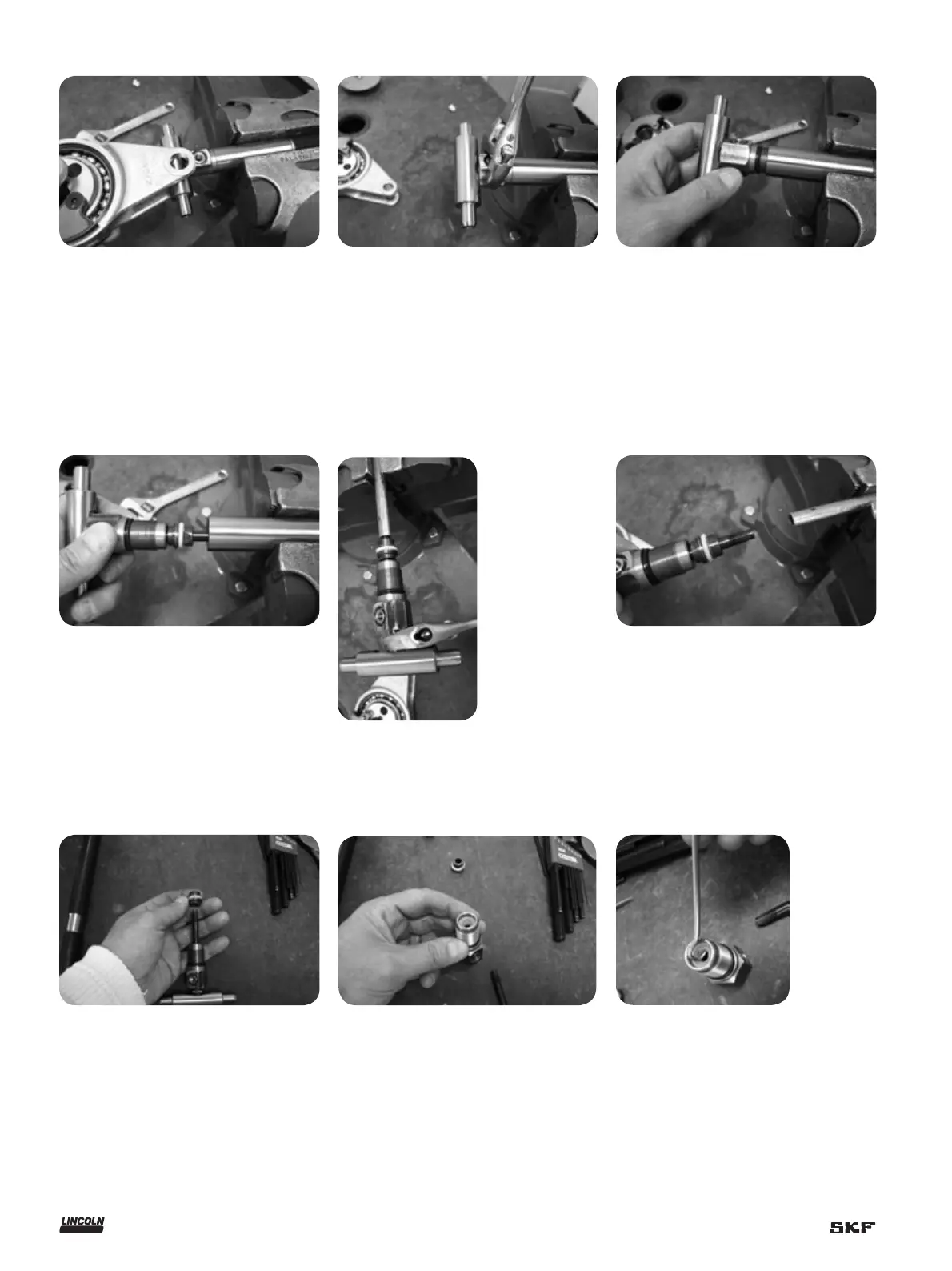

27 Remove crankkrod and eccentric as-
sembly (Items 1-7).
28 Loosen wrist pin anchor (Item 13a). (Re-
assembly torque: 20 - 25 Ft. Lbs. (27.1
- 33.9 Nm).)
29 Remove wrist pin anchor (Item 13a).
(Reassembly recommendations: replace
O-ring seal (Item 13b), be sure threads
on wrist pin anchor (Item 13a) are clean
and free of all oil or other fluids.)
30 View of plunger tube and plunger tube
bushing assembly (Items 10, 10a, 10b,
10c and 10d).
31 Loosen
plunger tube
(Item 10).
(Reassembly
torque: 100-
110 in. lbs.
(11.3 - 12.4
Nm))
32 Remove plunger tube (Item 10) and as-
sociated parts. (Reassembly recommen-
dations: replace O-ring (Item 10c) on
bushing (Item 10a). Use Loctite 242 or
equivalent on plunger tube threads.)
33 View of bushing assembly (Items 10
through 10d) removed.
34 View of wrist pin anchor (Item 13a)
showing upper cup seal (Item 15) and
nylon back up washer (Item 14).
35 Pull cup seal (Item 15) out of wrist pin
anchor (Item 13a).
