Lincoln FlowMaster C Series Installation And Maintenance Guide

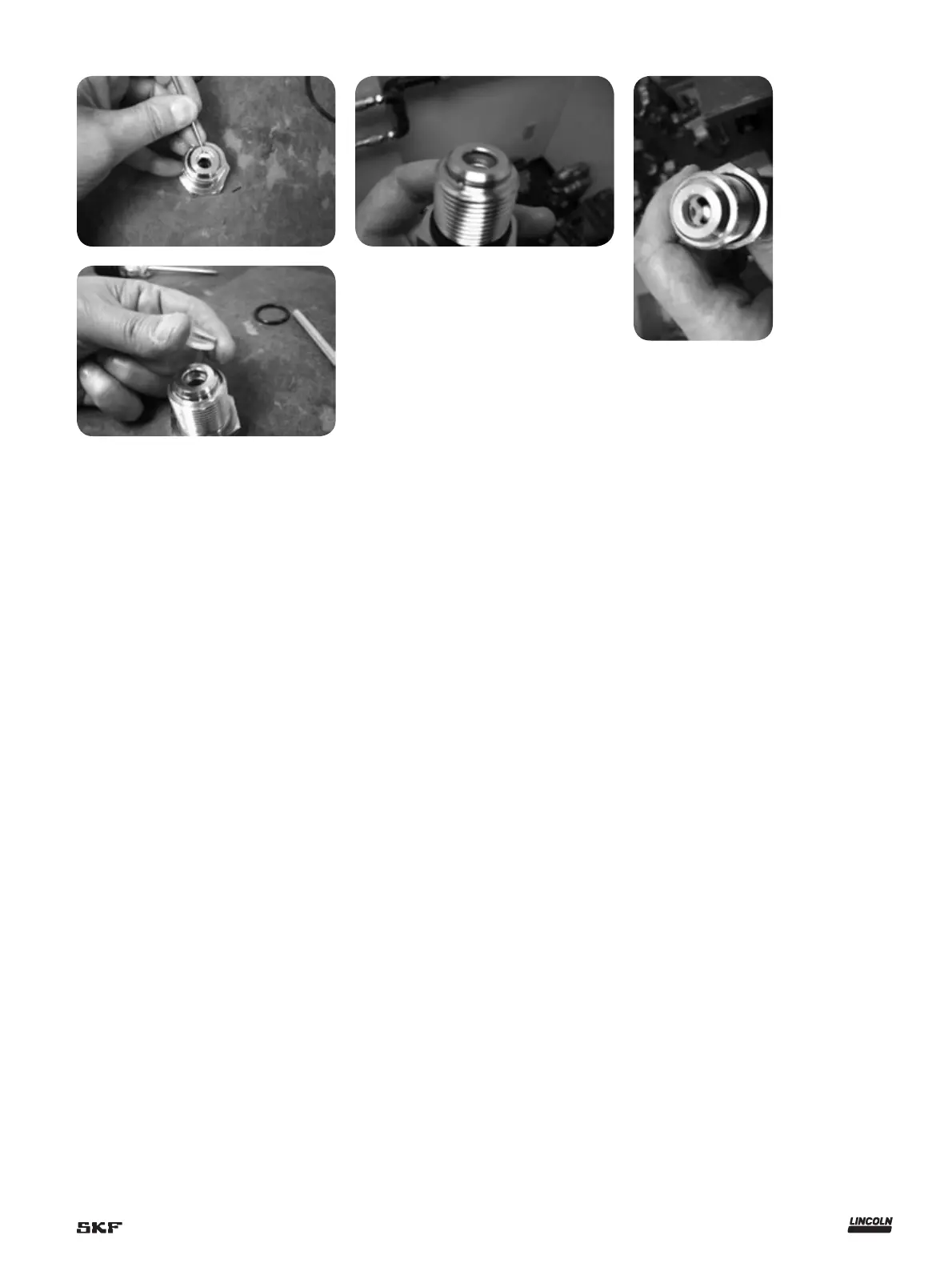

63 Remove O-ring seal (Item 34) and
backup washer (Item 35) from outlet nut
(Item 32). Note the position of the
backup washer in photo.
64 Reassembly recommendations: To install
the O-ring (Item 34) and backup washer
(Item35) most easily, install the backup
washer first.
65 And then feed
the O-ring
(Item 34) un-
der the back-
up washer,
pushing up
the final bulge
of the O-ring
with a blunt
rod.
19
