4.2.6.2 Q
MAX
OF HYDRAULIC MOTORS HMV 105
noyes

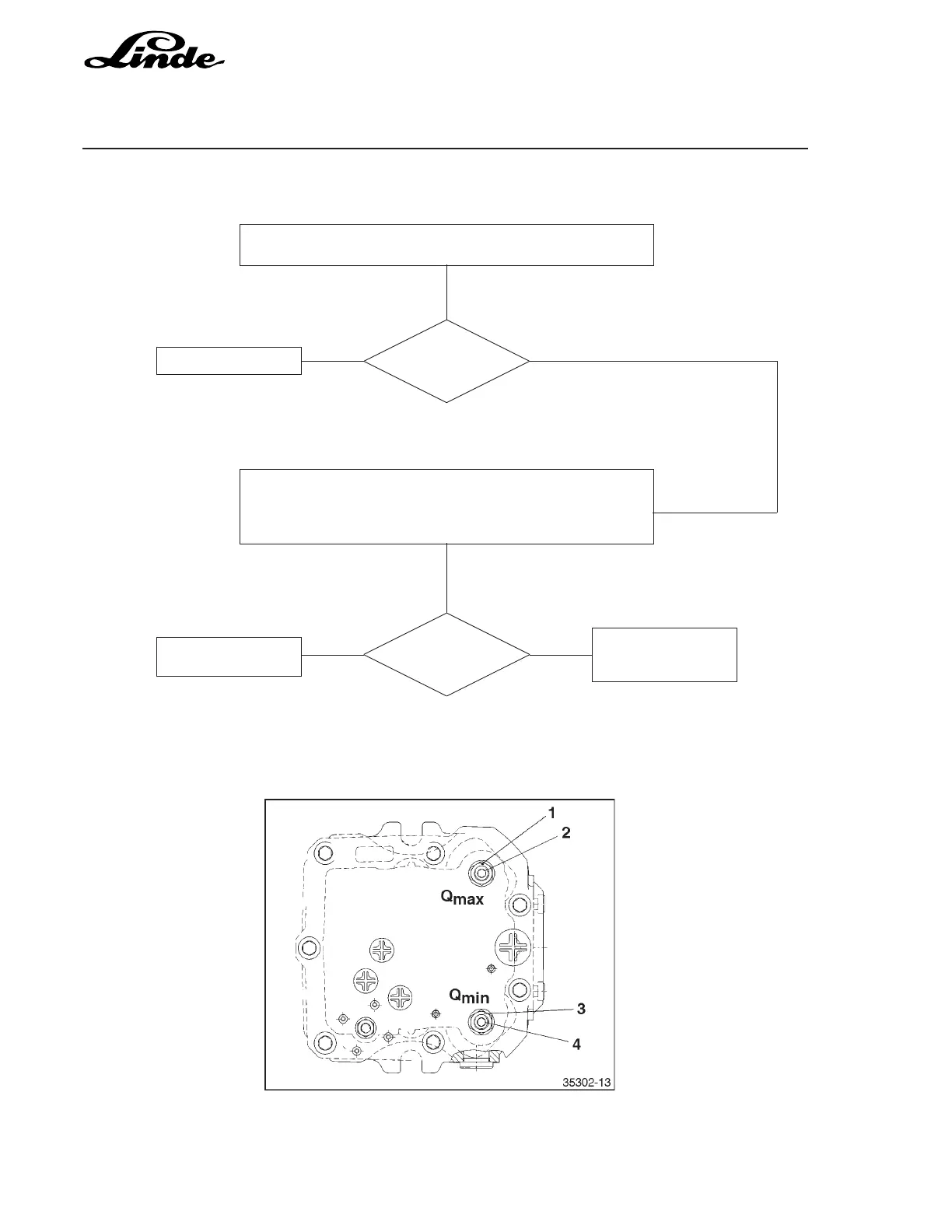

Remove the cover on the bottom of the truck frame. Loosen nut (1) and turn
stop screw (2) out.
Start engine; with pedals released, turn stop screw (2) in until a noticeable
resistance is felt and turn a further 1/2 turn at this point. Repeat the test.
Wheel speed
116 - 130 rpm.
Lock the right traction wheel. Start engine, release brake, fully depress one
accelerator pedal and measure speed of left wheel.
noyes
Speed now okay.
Q
max
of left motor okay.
Check the right motor by
locking the left wheel.
Remove left motor and
bring remote control in
order or renew the motor.
