Linde H 70 D - Hydraulic Remote Control

Service Training
Page 4.2
Section 30
09.04

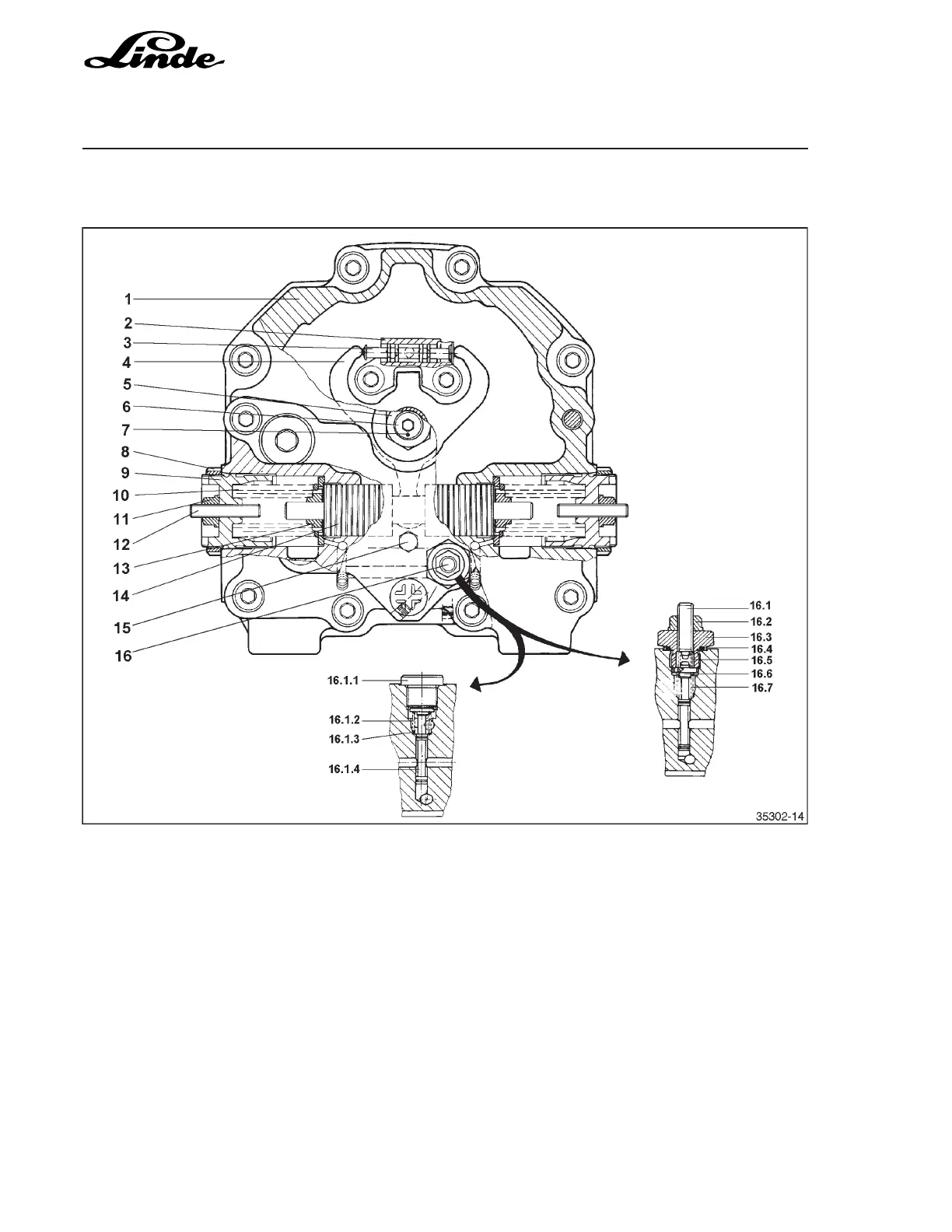

4.2.3 HYDRAULIC REMOTE CONTROL
1 Cover
2 Pilot housing
3 Control pilot
4 Control lever
5 Hexagonal nut
6 Eccentric pin
7 Position mark
8 Grooved nut
9 Setscrew
10 Springs
11 Nut
12 Threaded pin
13 Spring plate
14 Servo piston
15 Bleed screw
16 Reversal lock
up to 4/94: 16.1 Setscrew
16.2 Sealing nut
16.3 Screw
16.4 O-ring
16.5 Adjustment spring
16.6 Valve piston
16.7 Valve spring
from 5/94: 16.1.1 Screw
16.1.2 Valve spring
16.1.3 Shims
16.1.4 O-ring
16.5 Valve piston
