Service Training
Section 4.9
Page 18
12.05

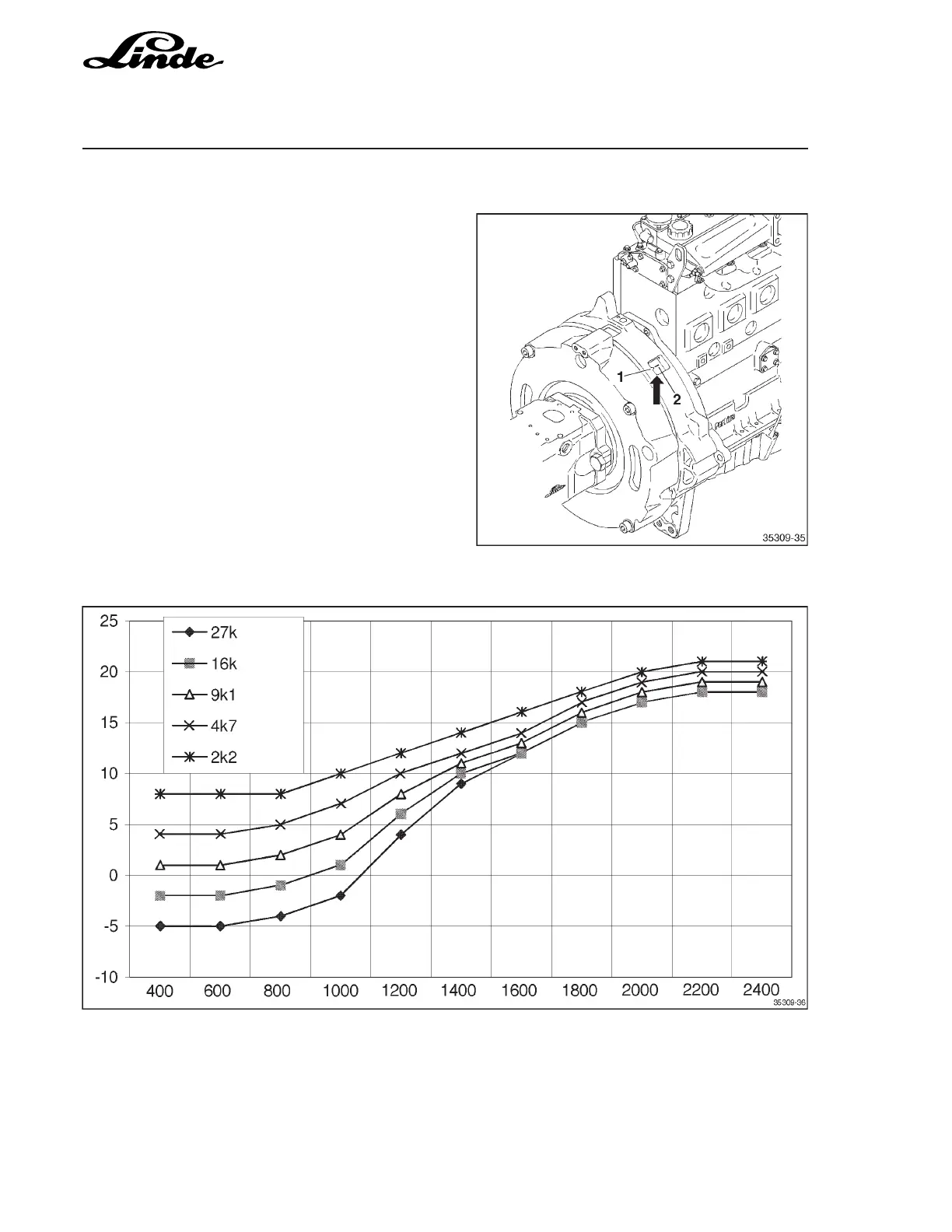

FIRING POINT CHARACTERISTIC CURVE FOR 1006-EGSI
MARKING THE FIRING POINT
The firing point is fixed by the ignition electronics
and can only be adjusted in the direction of
"retarded" with appropriate resistors (see circuit
diagram).
1 Firing point mark on housing
2 Firing point mark on flywheel
Eng. speed (rpm) 400 600 800 1000 1200 1400 1600 1800 2000 2200 2400
27k (white) -5 -5 -4 -2 4 9 12 15 17 18 18
16k (yellow) -2 -2 -1 1 6 10 12 15 17 18 18
9k1 (blue) 11248111316181919
4k7 (green) 445710121417192020
(white
(yellow)
(blue)
(green)
(red
Firing Point (° BTDC)
