Select 1. THREE POINT and press [ENT] to view the STATION POINT SETUP screen.
Open the PN, X, Y, Z, IH and PC input window and input each. Save the data by pressing
[F1] [SAVE].

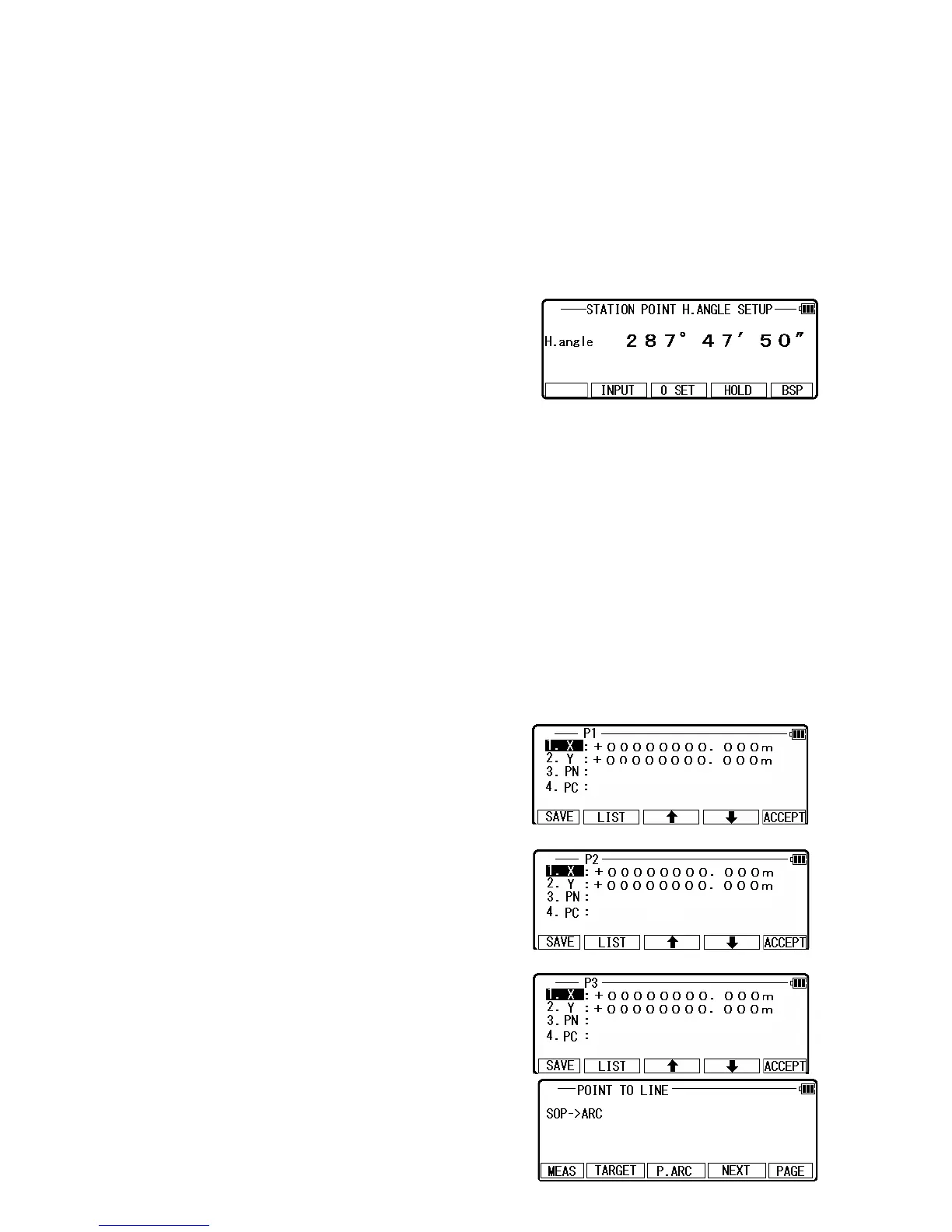

Press [ESC] to view STATION POINT H.ANGLE
SETUP screen.
Input the H. angle by pressing [F2] [INPUT], [F3]
[0SET] and [F4] [HOLD] or Backsight Coordinates
by pressing [F5] [BSP].
Press [F5] [BSP] to enter Multiple Orientation. For more details, refer to “11.1.4 Multiple
Orientation”.
After you finish sighting the reference point, press [ENT] to go to the next screen.
Input three coordinates points on each screen of P1,
P2 and P3 to make a circle.
The procedure of inputting the points is the same as
that of STATION POINT SETUP .
105
