8.3.2 Circle radius
Input center coordinate of the circle and radius to make a circle, then obtain the distance from
the Stake Out Point to the circumference.
Select“2.CIRCLE RADIUS”,Press [ENT] to
view“STATION POINT SETTING” screen.
Open the PN, X, Y, Z, IH and PC input window and
input each. Save the data by pressing [F1] [SAVE].
Press [ENT] to view STATION POINT H.ANGLE SETUP screen.
Input the H. angle by pressing [F2] [INPUT], [F3]
[0SET] and [F4] [HOLD] or Backsight Coordinates
by pressing [F5] [BSP].
Aim at the reference point, then press [ENT] to enter Multiple Orientation.
For more details, refer to “11.1.4 Multiple Orientation”.
107

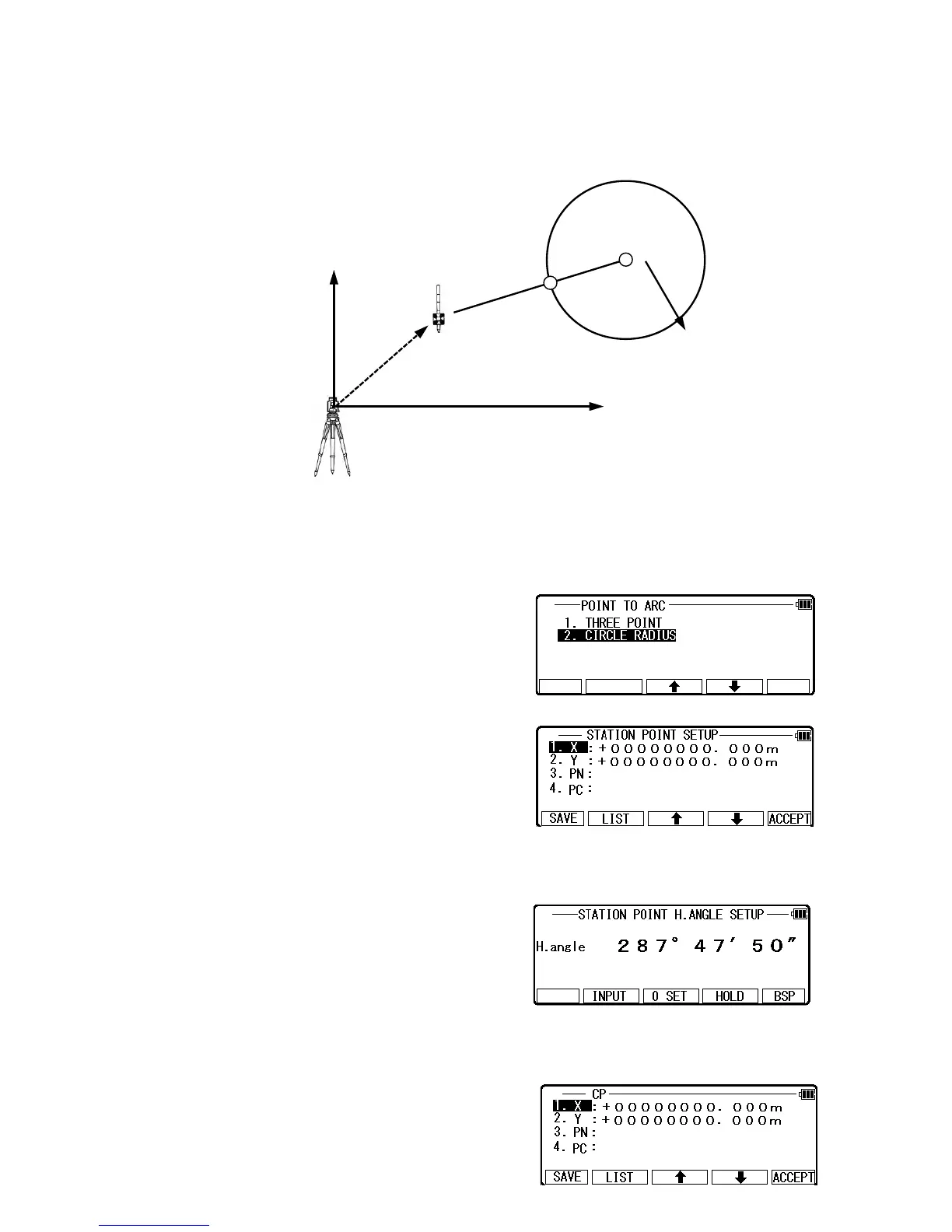

Stake Out Point : P
Station Point
Radius
CP
