After you are finished with the input, press [F1] [SAVE] or [F5] [ACCEPT] to display the
measurement screen.

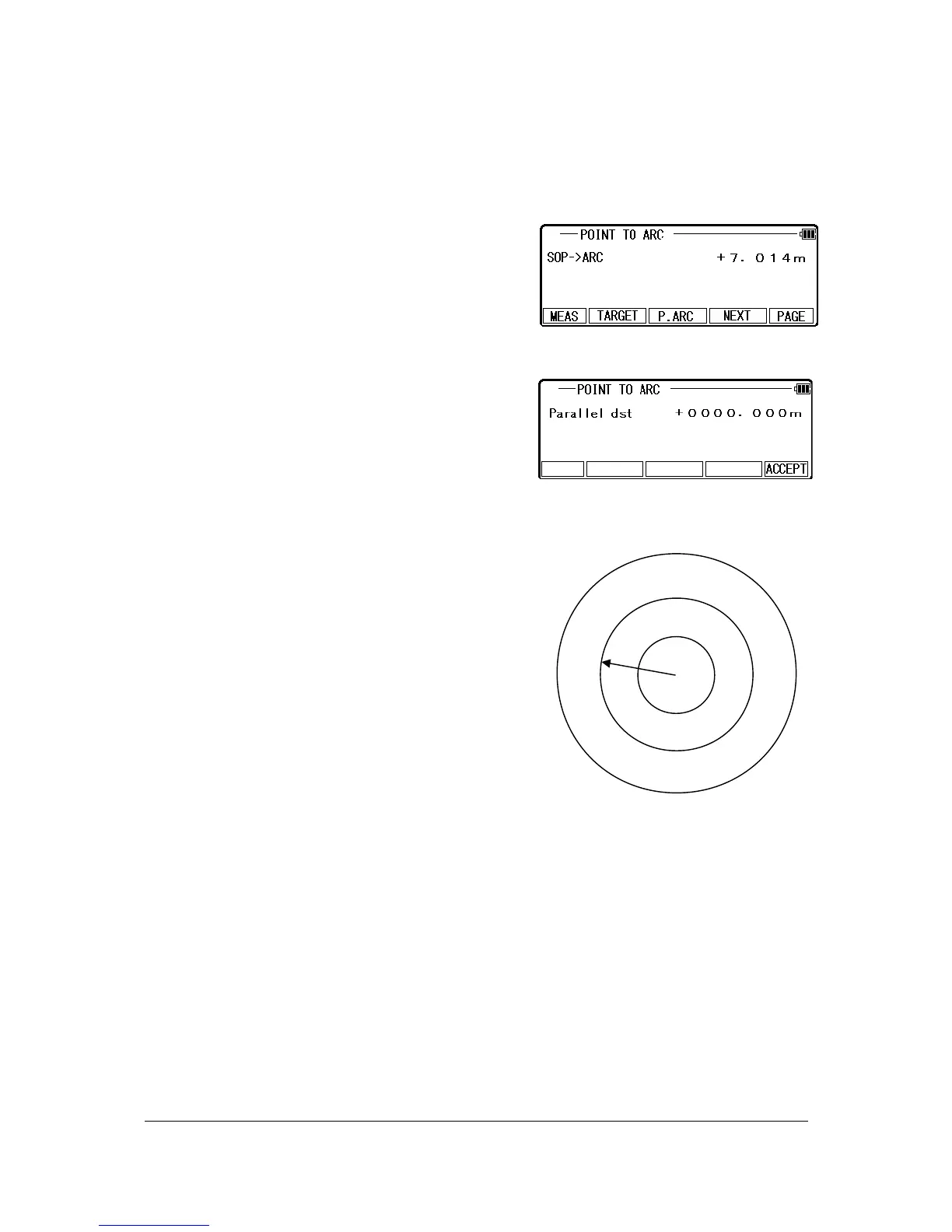

Sight the target, Press [F1] [MEAS] to measure the
distance. From the measurement results, the distance
from the target to the circumference is displayed.
Press [F3] [P. ARC] to enter “Parallel dist” screen.
In circle A, an already-known circle, circle B, and circle
C are in a Parallel Arc with circle A.
When the input value is "+", Parallel Arc of circle A is
circle B.
When the input value is "-", Parallel Arc of circle A is
circle C.
Press [ACCEPT] to return to SOP->ARC screen.
106
C
A
B
To Next Page
