CHAPTER 3C ENGINE 100/125/150/200 SERVICE MANUAL09.0
CHAPTER 3C ENGINE PAGE.3C - 8 -

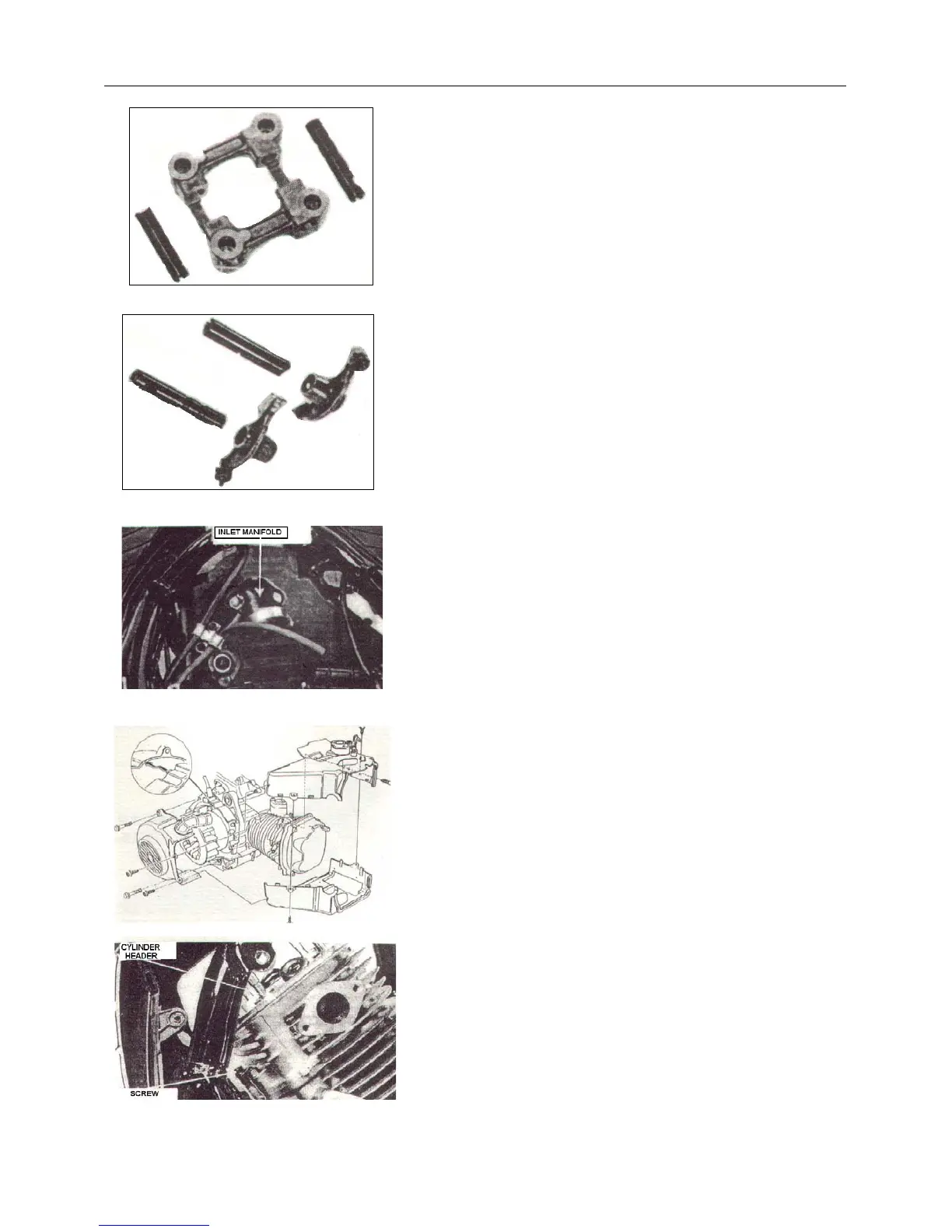

2. Check camshaft holder, rocker arms and
rocker arm shafts for abnormal wear and
tear.
3. Measure the inside diameter of rocker arm
shaft hole in camshaft holder.
Limit: 10.10mm.
4. Measure the inside diameter of rocker arm
hole.
Limit: 10.10mm.
5． Measure the diameter of rocker arm shaft.
Limit: 9.91mm.
C. Cylinder head removal
1. Remove the pipe composition of carburetor
intake valve.
2. Remove fan cover composition.
3. Remove upper and lower shrouds.
4. Remove cylinder head.
