CHAPTER 8 ELECTRICAL ATV SERVICE MANUAL 09.0
CHAPTER 8 ELECTRICAL PAGE.8-
12
*

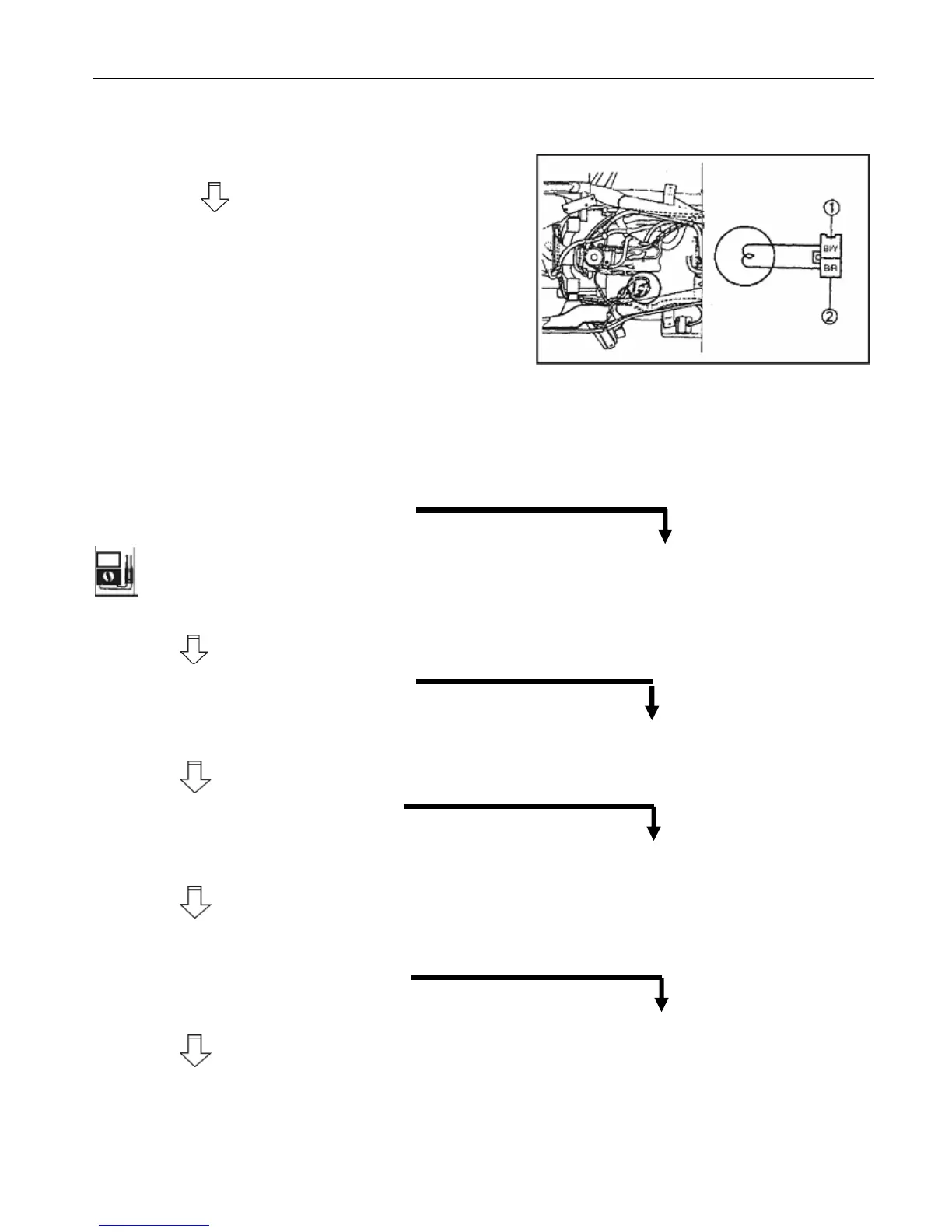

7. Pickup coil resistance
z Disconnect the pickup coil coupler
from the wire harness.
zConnect the pocket tester (Ω 100) to
the pickup coil coupler.
Tester (+) lead →
BI/Y Terminal c
Tester (- ) lead→
B/R Terminal d
z Check the pickup coil has the
specified resistance.
OUT OF SPECIFICATION
Replace the pickup coil.
Primary coil resistance:
168 -252Ω (20℃)
MEETS
SPECIFICATION
8.Main switch
NO CONTINUITY
CHECK SWITCHES
Replace the main switch
CONTINIUTY
NO CONTINUITY
9.Engine stop switch ( for USA
model)
Replace the handlebar switch.
CONTINIUTY
10.Wiring connection
POOR CONNECTIONS
zCheck the connection of the
entire ignition system
Refer to “CIRCUIT DIAGRAM”.
Correct
CORRECT
Replace the igniter unit.
To Next Page
