Linksys E7350 User Manual

4

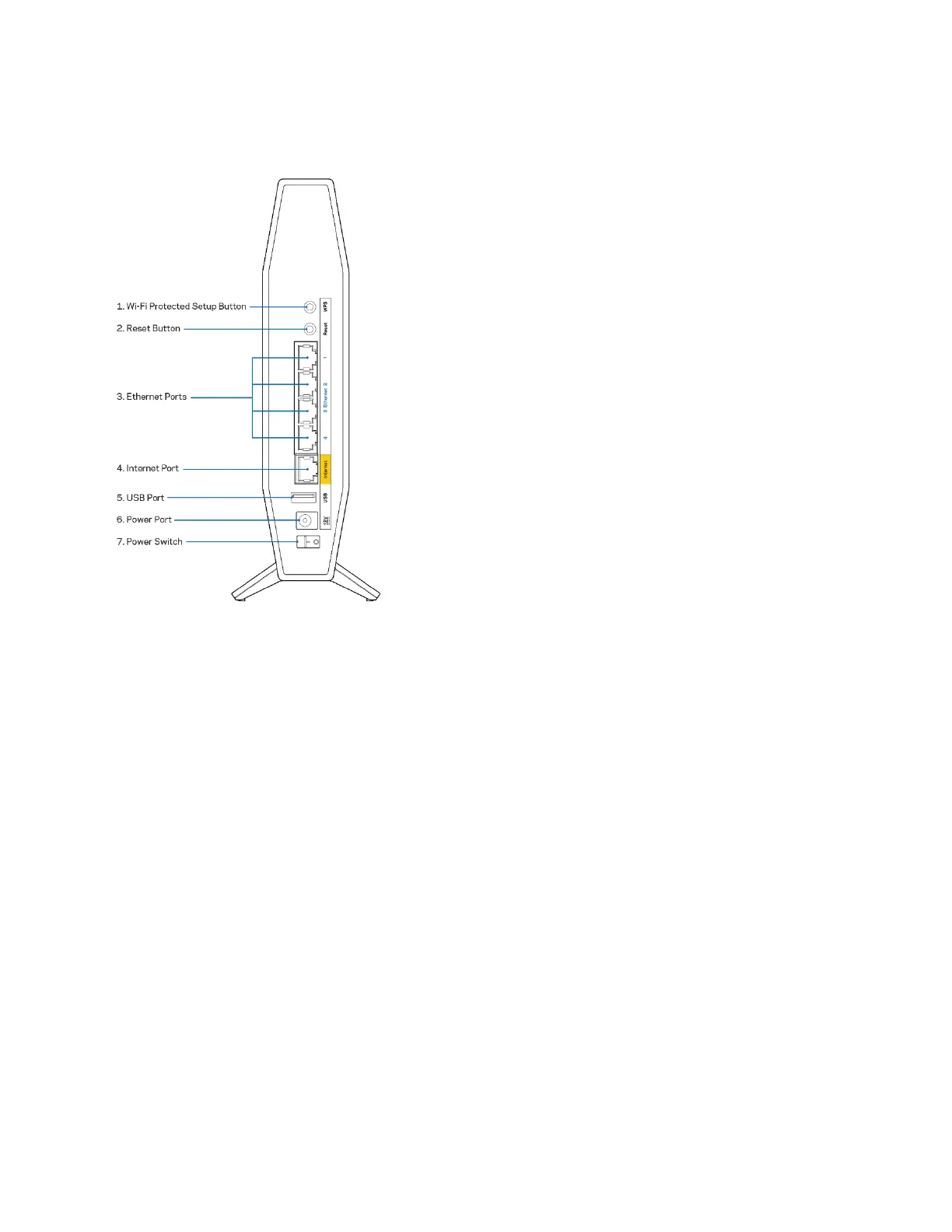

Back
Wi-Fi Protected Setup™ (WPS) button (1) -----Press to easily configure wireless security on Wi-Fi
Protected Setup-enabled network devices. The light under the button will blink while WPS pairing is
active.
Reset button (2) — Press and hold for until the power LED starts flashing to reset the router to
factory settings.
Ethernet ports (3) ------Connect Ethernet cables (also called network or internet cables) to these Fast
Ethernet (10/100/1000) ports and to other wired devices on your network. The lights under the ports
will light up only when an Ethernet cable is plugged in and there is data traffic on the cable.
Internet port (4) ------Connect an Ethernet cable to this port and to your modem. The light under the
port will light up only when an Ethernet cable is plugged in and there is data traffic on the cable.
USB 3.0 port (5) -----Connect and share a USB drive on your network.
Power port (6) ------ Connect the included AC power adapter to this port.
Power switch (7) -----Press | (ON) to turn on the router.

Linksys E7350 Specifications

General

Ethernet WAN	Yes
SIM card slot	-
Product type	Tabletop router
Product color	Black
LED indicators	LAN, Power
Antennas quantity	2
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max)	1800 Mbit/s
WLAN data transfer rate (first band)	600 Mbit/s
WLAN data transfer rate (second band)	1200 Mbit/s
Maximum coverage	0.14 m²
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN interface type	Ethernet
Ethernet LAN (RJ-45) ports	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Internal memory	256 MB
Processor frequency	880 MHz
Security algorithms	WPA2, WPA3
