4-3
Linksys SPA9000 Administrator Guide
Document Version 3.01
Chapter 4 Configuring SPA9000 Features
Using the Wizard to Configure SPA9000 Voice Features
• For SPA92x, 94x, or 925, press Menu on the IP phone and Navigate down to Product Info >
Software Version.
Step 4 If the firmware version is lower than 4.1.12, click Upgrade.
The system displays Page 3, shown in Figure 4-2.

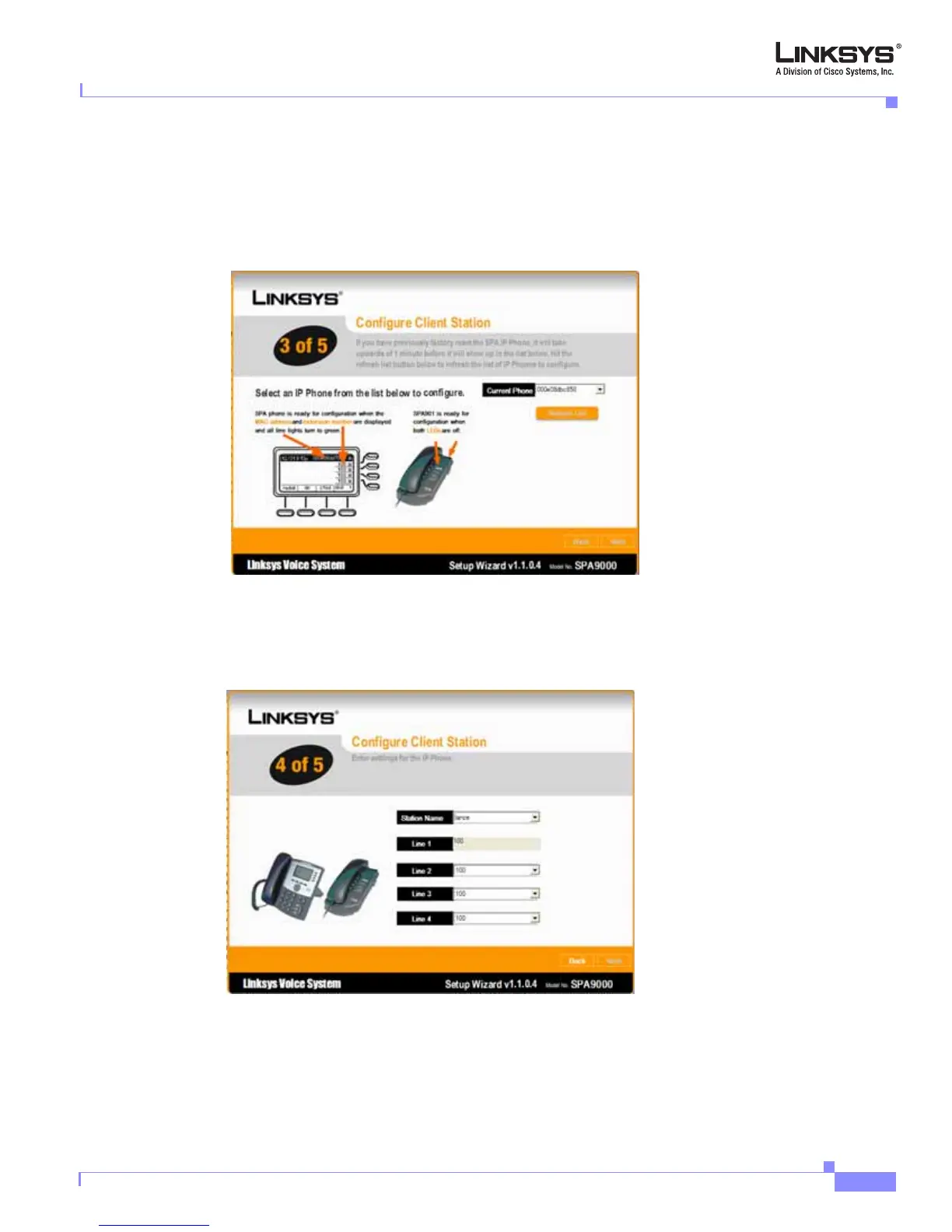

Figure 4-2 Client Station Setup Wizard—Page 3
Step 5 Select the MAC address or station name of the IP phone you are configuring and click Next.
The system displays Page 4, shown in Figure 4-3.
Figure 4-3 Client Station Setup Wizard—Page 3
Step 6 Identify the station name, select an extension number for each available extension, and click Next.
Step 7 Click Finish on Page 5, and if you want to configure additional clients, select the required option on the
final page.
