8
Chapter 3: Getting to Know the Wireless-G Exterior Access Point
The Ports
Wireless-N Access Point with Power Over Ethernet
WIRELESS Green. The WIRELESS LED lights up when the Access Point is successfully connected to a
wireless device. If the Wireless LED is flashing, the Access Point is actively sending to or
receiving data from a wireless device.
ETHERNET Green. The ETHERNET LED lights up when the Access Point is successfully connected to a
device through the Ethernet network port. If the ETHERNET LED is flashing, the Access Point is
actively sending to or receiving data from one of the devices over the Ethernet network port.
The Ports
The Access Point’s port are located on the back of the device.
port: the connection point on a computer or
networking device used for plugging in
cables or adapters

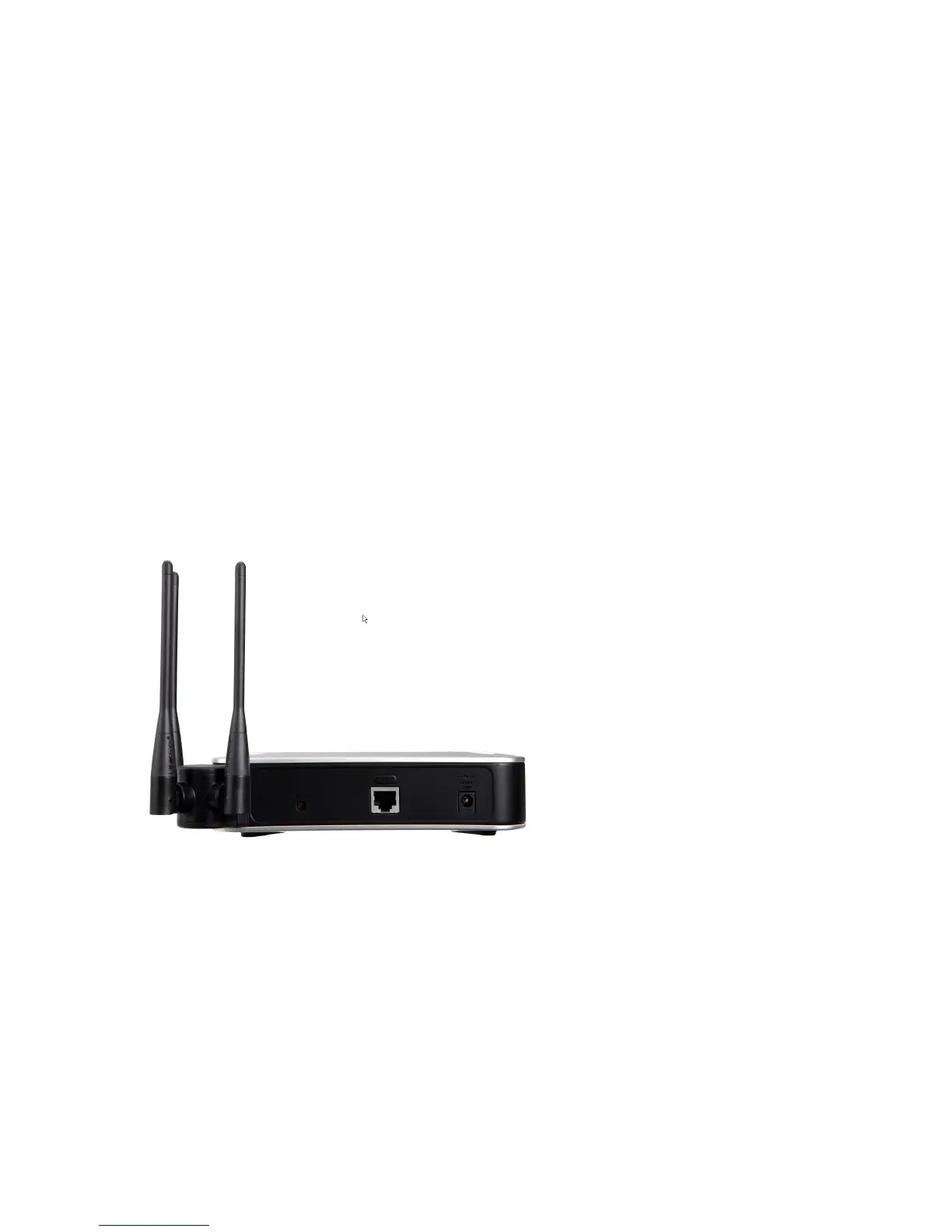

Figure 3-2: Back View
