How To Use the Parallel I/O Option

Linx 5900 & 7900

2 Press the Select key to display the Detection page.

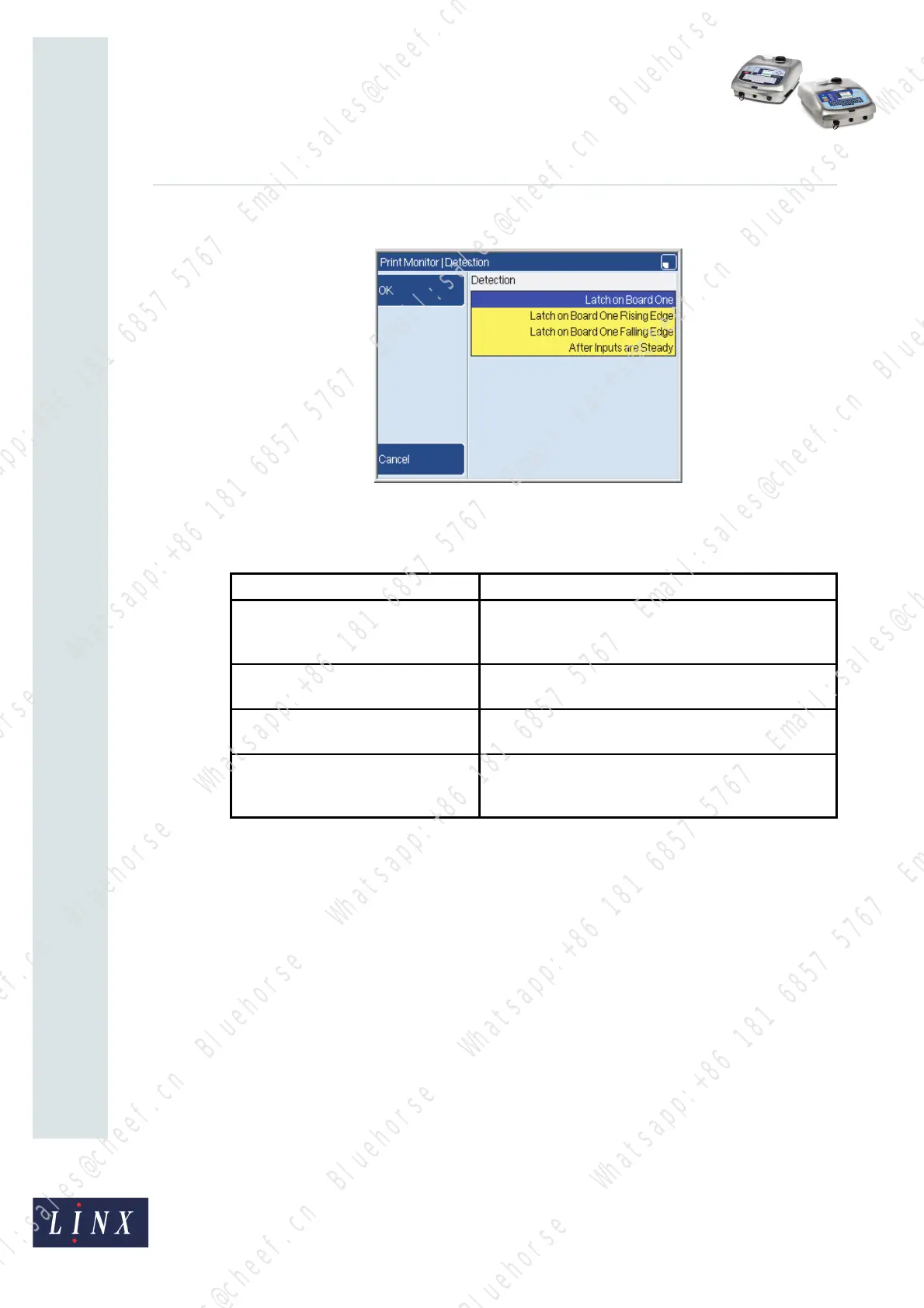

Figure 27. Detection page

The following table shows the detection options that are available. The table also

shows the event that makes the printer detect a change in the state of the input line.

(The ‘high’ level is +24 V and the ‘low’ level is 0 V.)

3 Highlight the detection method that you require and press the OK key to return to

the Edit Detection page.

Detection option Detection event

Latch on Board One The voltage on the latch input line changes from either

a high level to a low level, or from a low level to a high

level.

Latch on Board One Rising Edge The voltage on the latch input line changes from a low

level to a high level.

Latch on Board One Falling Edge The voltage on a the latch input line changes from a

high level to a low level.

After Inputs are Steady The input voltage on the selected input is held in the

new state for a minimum period. (The After Inputs are

Steady option does not use the latch input line.)

Table 3. Detection options for change in input state
