How To Use the Parallel I/O Option

Linx 5900 & 7900

To configure the software, perform the following steps:

1 Select the Keypads option to display the Edit Keypads page.

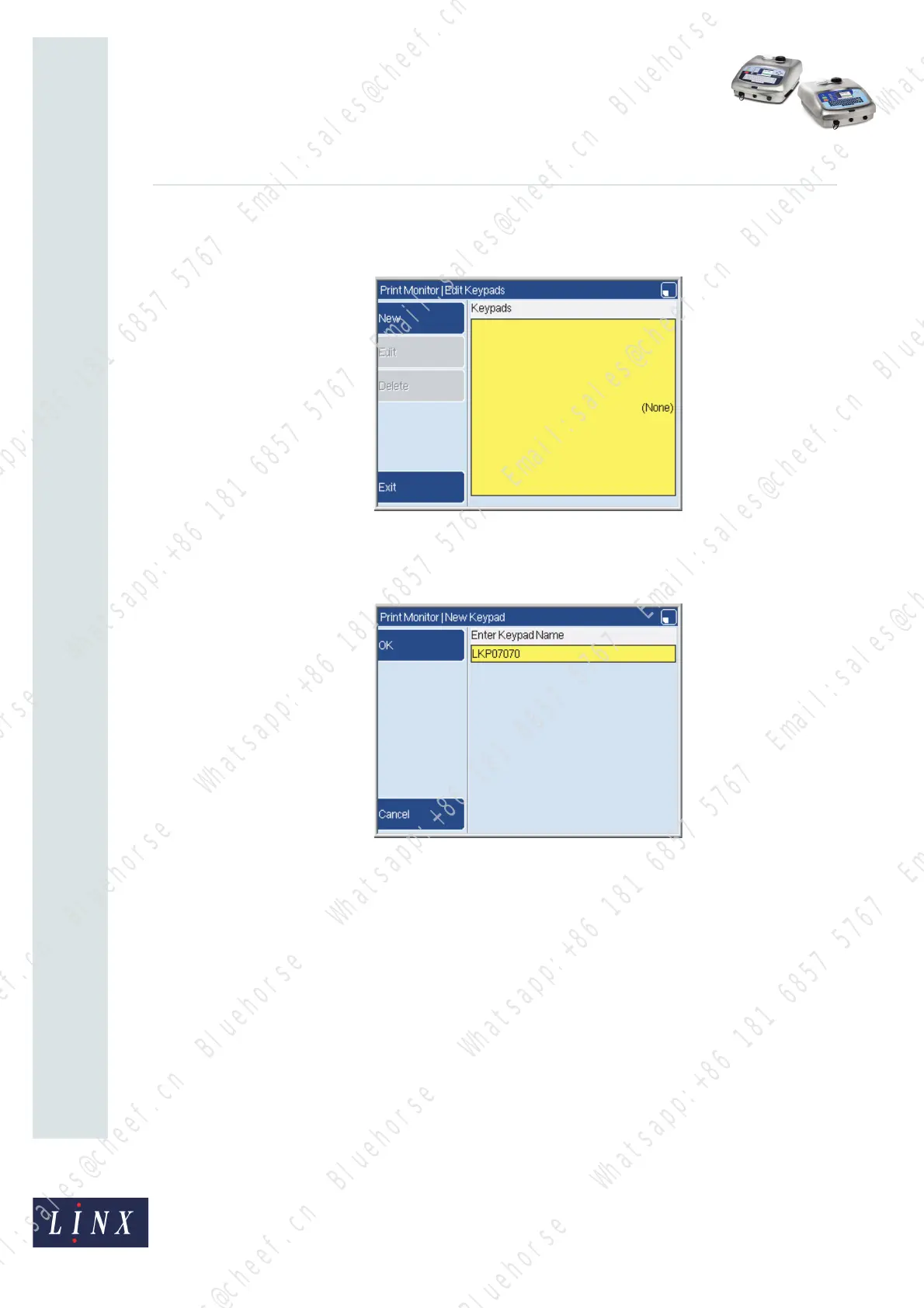

Figure 5. Edit Keypads page

2 Press the New key and enter the keypad name “LKP07070”, as shown in the

example in Figure 6.

Figure 6. New Keypad page: keypad name

All keypad names use the prefix “LKP”, followed by a five-digit number. The five

digits have the following functions:

• Digit 1 refers to the printed circuit board for the printer and must be set to zero.

• Digits 2 and 3 define the range of inputs that the keypad uses. For example if

the keypad name is “LKP07364”, the keypad uses the inputs 7, 6, 5, 4, and 3.

• Digits 4 and 5 define the range of outputs that the keypad uses. For example if

the keypad name is “LKP07364”, the keypad uses the outputs 6, 5, and 4.

The printer does not accept a name that is not valid.
