Lionel FM TrainMaster - Locomotive Switch Function Overview; Locomotive Switch Functions

Locomotive switch function overview
Switch overview
Carefully lift up and remove the roof top hatch to access the switches.
Command Reverse Unit Switch
Used to assign an ID# and reprogram the locomotive in LEGACY and Command operation
when the switch is in the “PGM” position. Also used to “lock” your locomotive in a single
direction, or neutral, in conventional operation when the switch is placed in the “PGM”
position. See pages 20, 21, 22, and 25.
Smoke Unit Switch
Used to turn the smoke unit function “on” and “off”. See page 37.
LEGACY RailSounds Sound System Switch
Used to select RailSounds (RS) or SignalSounds (SS). In the RailSounds position, all sounds
are provided. In the SignalSounds position, only the Horn and Bell are heard. See page 30.
Odyssey II Speed Control System Switch
Used to turn the Odyssey II Speed Control System “on” and “off”. See pages 24, and 27.
12
Note!
SMK
NO SMK
RUN
PRG
RS
SS
ODY
NO ODY
SMK NO SMK
RUN PRG
RS SS
ODY NO ODY

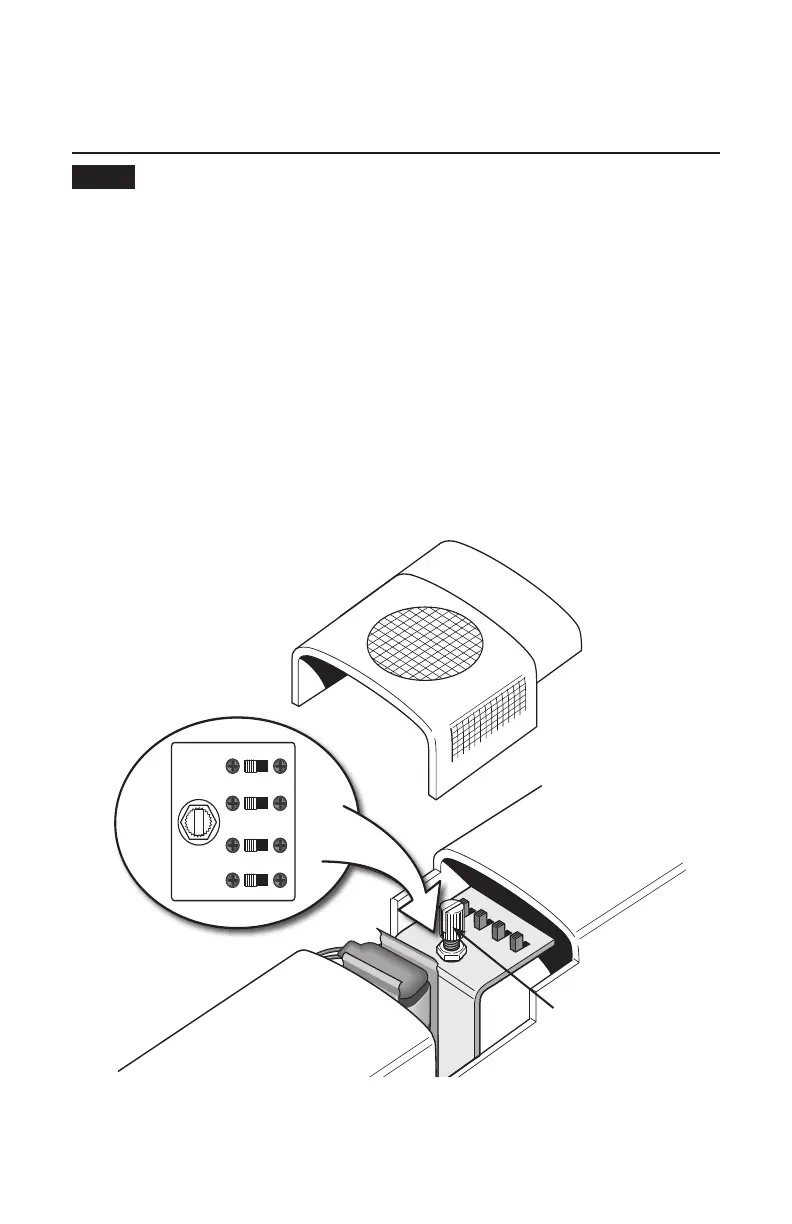

Figure 1. Switch locations
Volume control knob
FRONT
REAR
