LEGACY RailSounds sound system operations
Installing a Lionel Sound Activation Button for conventional operation
I
f your transformer lacks HORN and BELL buttons, you will need to install Lionel
no. 610-5906-001 Sound Activation Buttons (available separately) to activate the
locomotive’s horn and bell sounds.

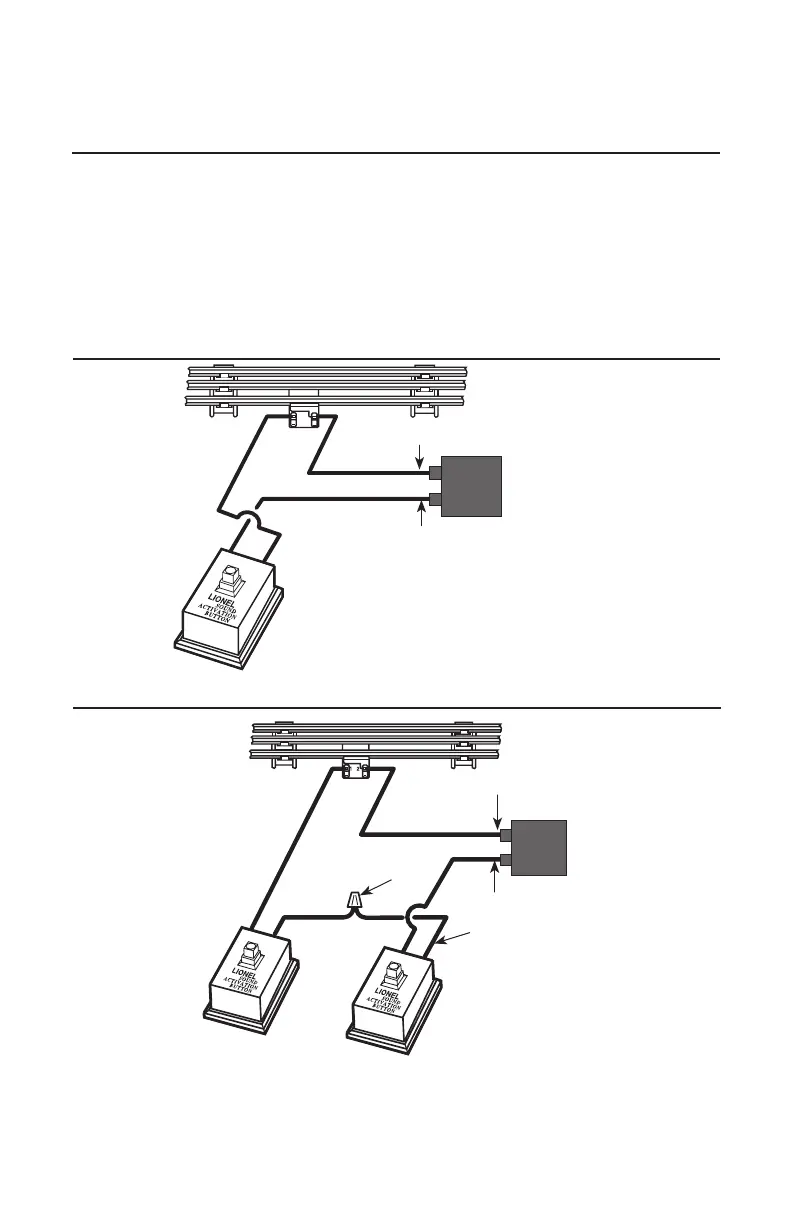

Connect the buttons as shown below. Be sure that all track power passes through the Sound
Activation Button(s). Do not bypass the buttons.
For AC transformers lacking bell and horn/whistle buttons
Lionel no. 610-5906-001
Sound Activation Button
for activating the
horn
Lionel no. 610-5906-001
Sound Activation Button for
activating the bell
Black wire
Black wire
Wire
nut
Red wire
Red wire
Existing wire
Common/Ground/U
Power/A
For AC transformers lacking a bell button
Existing wire
Black wire
Red wire
Lionel no. 610-5906-001
Sound Activation Button for
activating the bell
Common/Ground/U
Power/A
