Lipper Ground Control 3.0 - Wiring Diagram; System Wiring Diagram

Rev: 09.02.21 Page 10 CCD-0004395

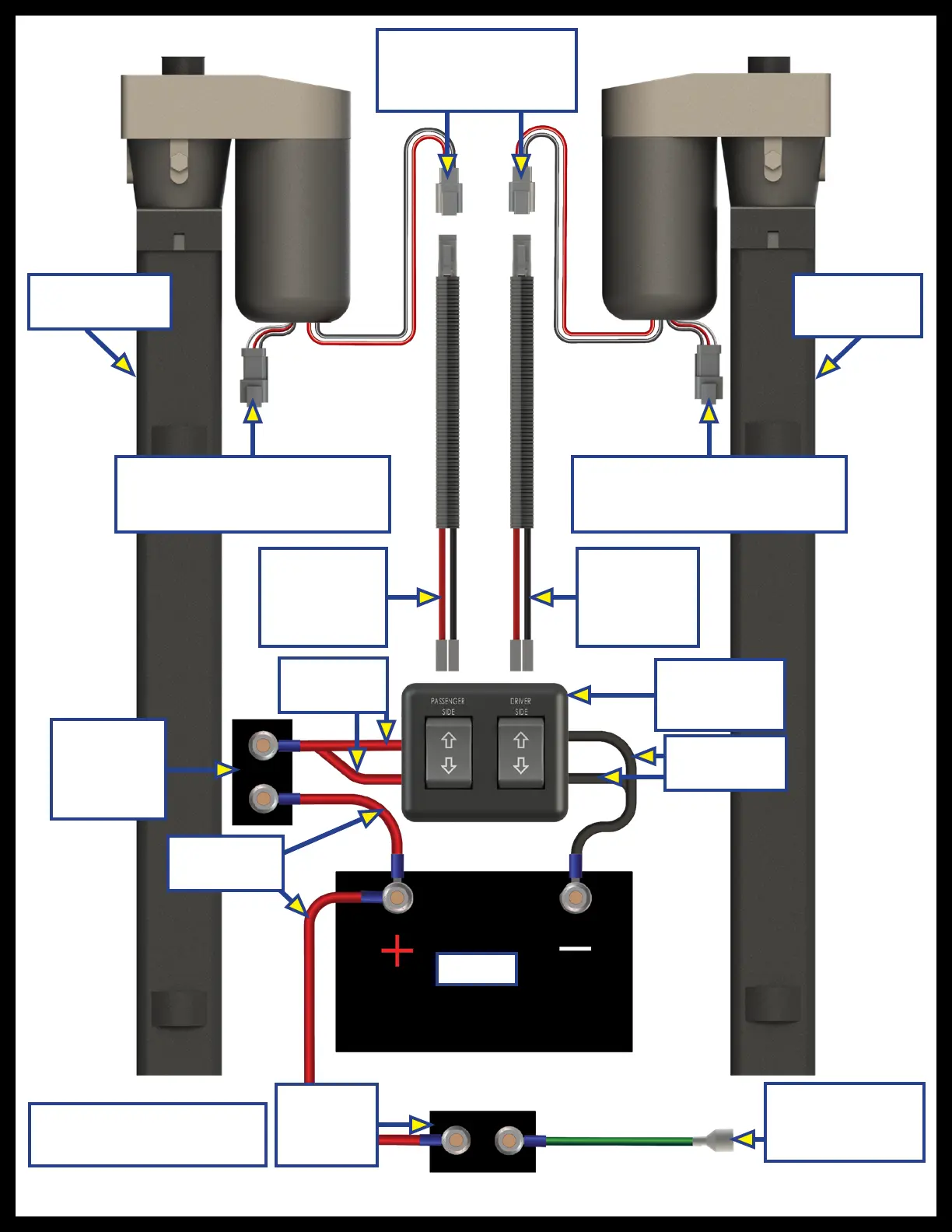

Wiring Diagram
Battery
30 Amp
Auto-Reset
Circuit
Breaker
All OEM Supplied Wiring
to be 6 AWG
Passenger Side
Landing Gear
Landing
Gear
Harness
Driver's Side
Landing
Gear Harness
Passenger
Side
Landing Gear Connection
for Future Leveling Installation
(not used at this time)
Landing Gear Connection
for Future Leveling Installation
(not used at this time)
50 Amp
Circuit
Breaker
Landing Gear
2 Wire Harness
Connections
Driver's Side
Landing Gear
Red Switch
Power
Red Battery
Power
Prep Wire for
Future Leveling
Controller Power
Landing Gear
Switch Panel
Black Switch
Ground
