Lippert Components In-Wall Slide-Out Assembly Manual

Rev: 05.12.21 Page 5 CCD-0001770
Installing Shipping Angles
1. On the exterior side of the H-column, place a shipping angle (Fig. 6A) at both ends of the upper and
lower gear racks (Fig. 6B). See Fig. 6 details for orientation of the shipping angles on the gear racks.
2. Align the pre-drilled holes in the shipping angle with the pre-drilled hole on the face of the notched
end and the extruded hole on the end of the non-notched end.
3. Secure the shipping angles to the gear racks with provided screws.

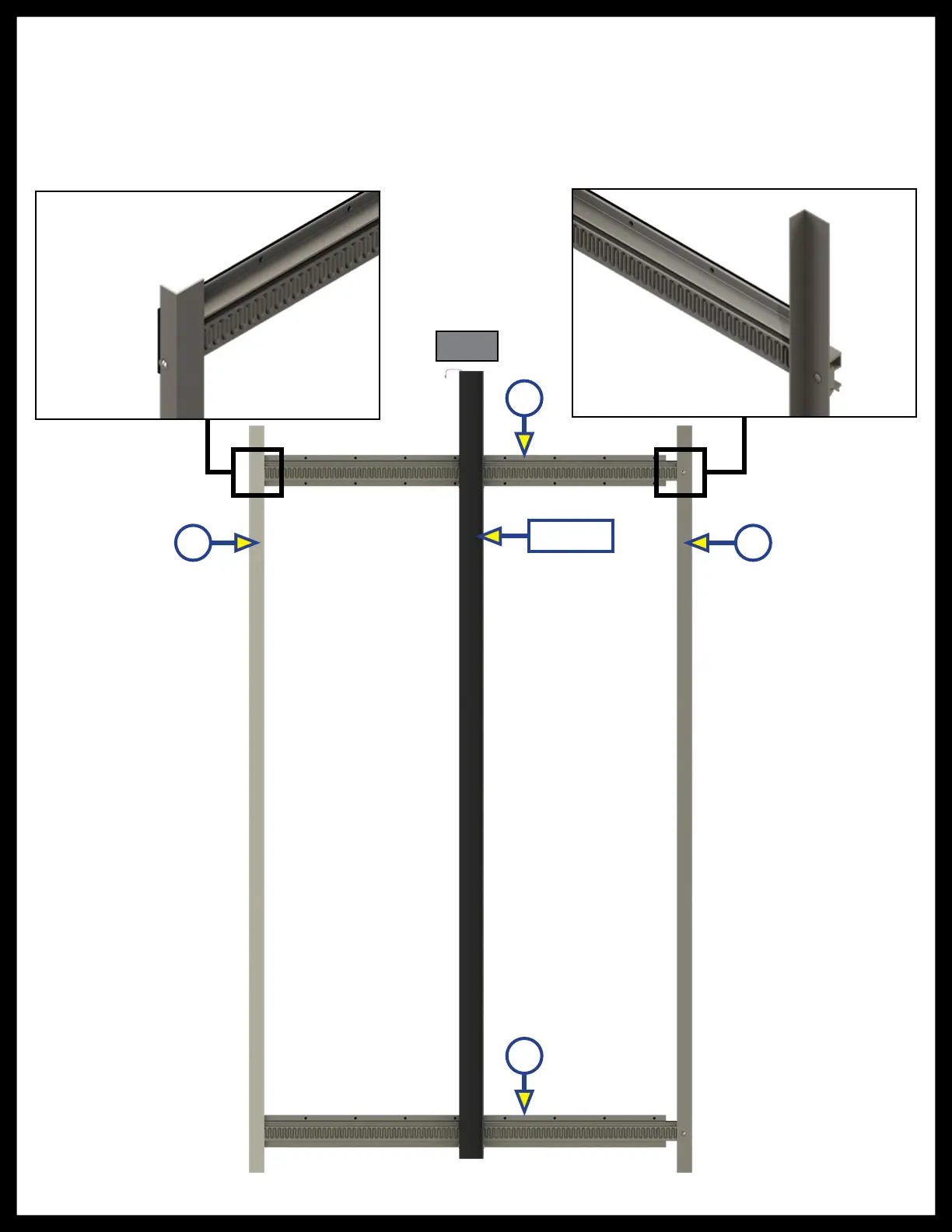

Fig. 6
A A
B
B
Exterior
