Lippert Components Innolight Sliding - Wiring Diagram

7
lci1.com 574-537-8900 Rev: 11.18.19
Innolight Sliding
Electric Step
Installation and Owner’s Manual
(For Aftermarket Applications)
CCD-0002550

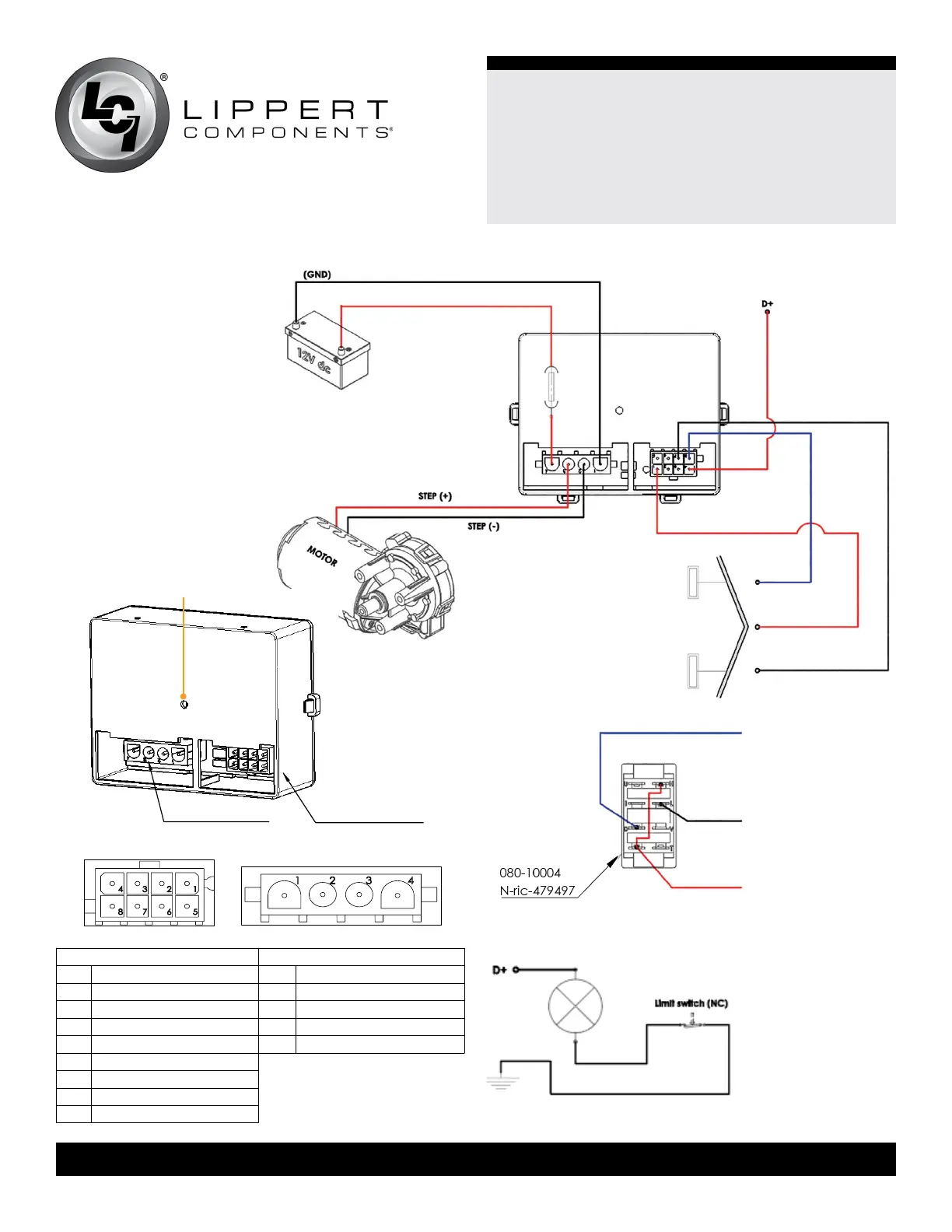

Wiring Diagram
"A" connector
"B" connector
"A"
"B"
"A" CONNECTOR
Pin N° Description
1 Button common (+12 V)
2
--
3 --
4 D +
5
--
6 --
7 RETURN command
8 EXIT command
"B" CONNECTOR
Pin N° Description
1 (-GND)
2
motor -
3 motor +
4 +12 V dc
Step Open:
Light on when the
vehicle is switched
on or buzzer in
operation
Caution:
The buzzer must
be filtered.
Common Button (+12V)
Command
RETURN
Command
EXIT
Command
EXIT
Command
RETURN
Common Button (+12V)
15A Fuse
+12V DC
adjustment screw
