Rev: 09.11.19 Page 3
CCD-0002616
• Cordless or electric drill or screw gun
• Four
⁄
" bolts, Grade 5 minimum; length
determined by application
• Eight flat washers
• Four locknuts
Installation
1. Use a 12V power source to extend the steps in order to access the mounting holes in the top plate of
the step.

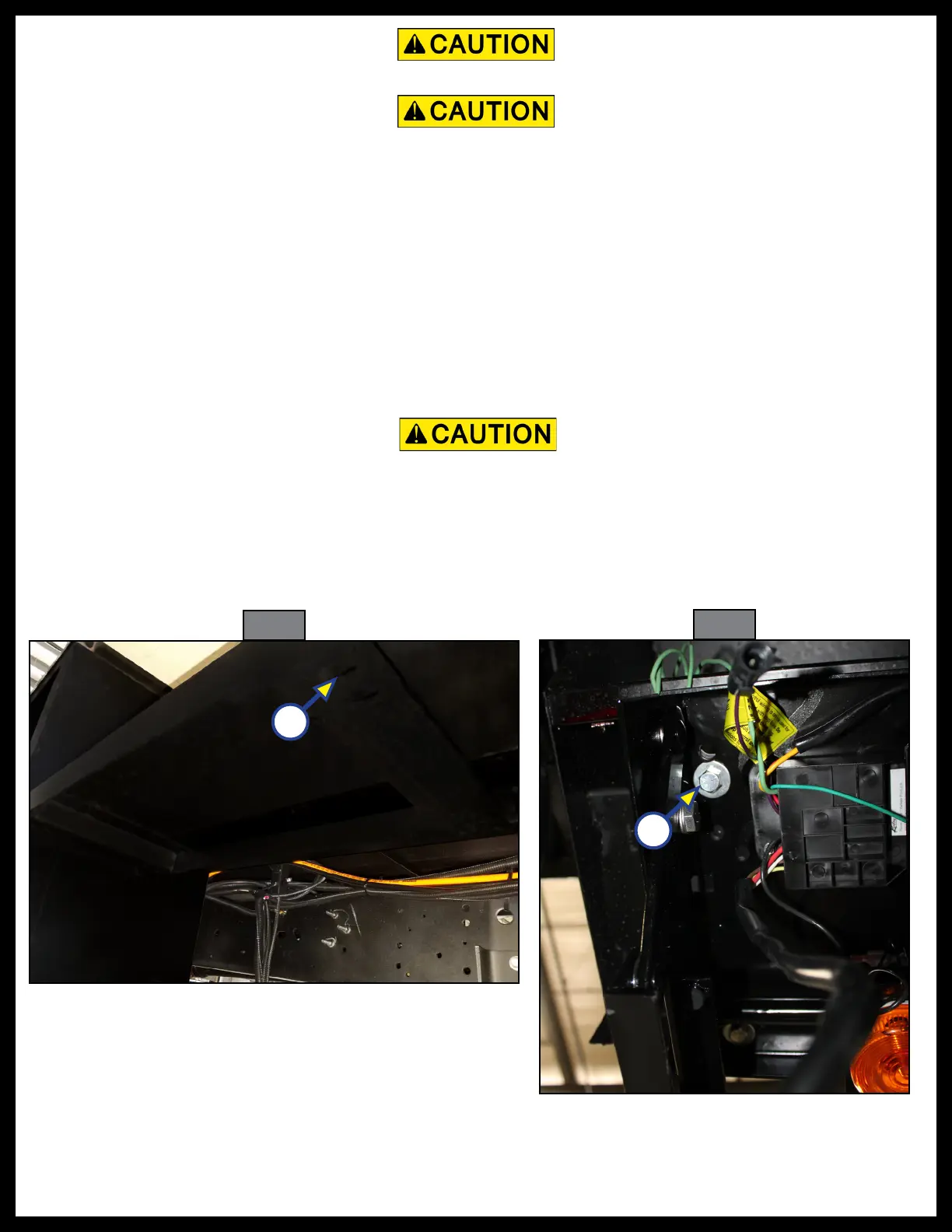

Fig. 1
Fig. 2
A
Resources Required
A
2. Place steps under the pre-drilled holes in the chassis (Fig. 1A).
3. Install fasteners in the steps, including one in each corner. Place a washer between the bolt head and
mounting location (Fig. 2A) and another washer on the other side of the mounting location next to
the locknut.
4. Firmly tighten the fasteners.
Moving parts can pinch, crush or cut. Keep clear and use caution.
Always wear eye protection when performing service, maintenance or installation procedures.
Other safety equipment to consider would be hearing protection, gloves and possibly a full face
shield, depending on the nature of the task.
Stand to the side of the step during this operation to avoid the moving parts.
