14
lci1.com 574-537-8900 CCD-0001533 Rev: 06.29.18
Level Up
™
Installation and Owner’s Manual
(For Aftermarket Application)
2. Using a ⁄” hex wrench, open the valve by turning the
manual override set screw clockwise (Fig.37).
3. Remove protective label from power unit motor to reveal the
manual override coupler (Fig.38).
Fig.³²
Fig.³³

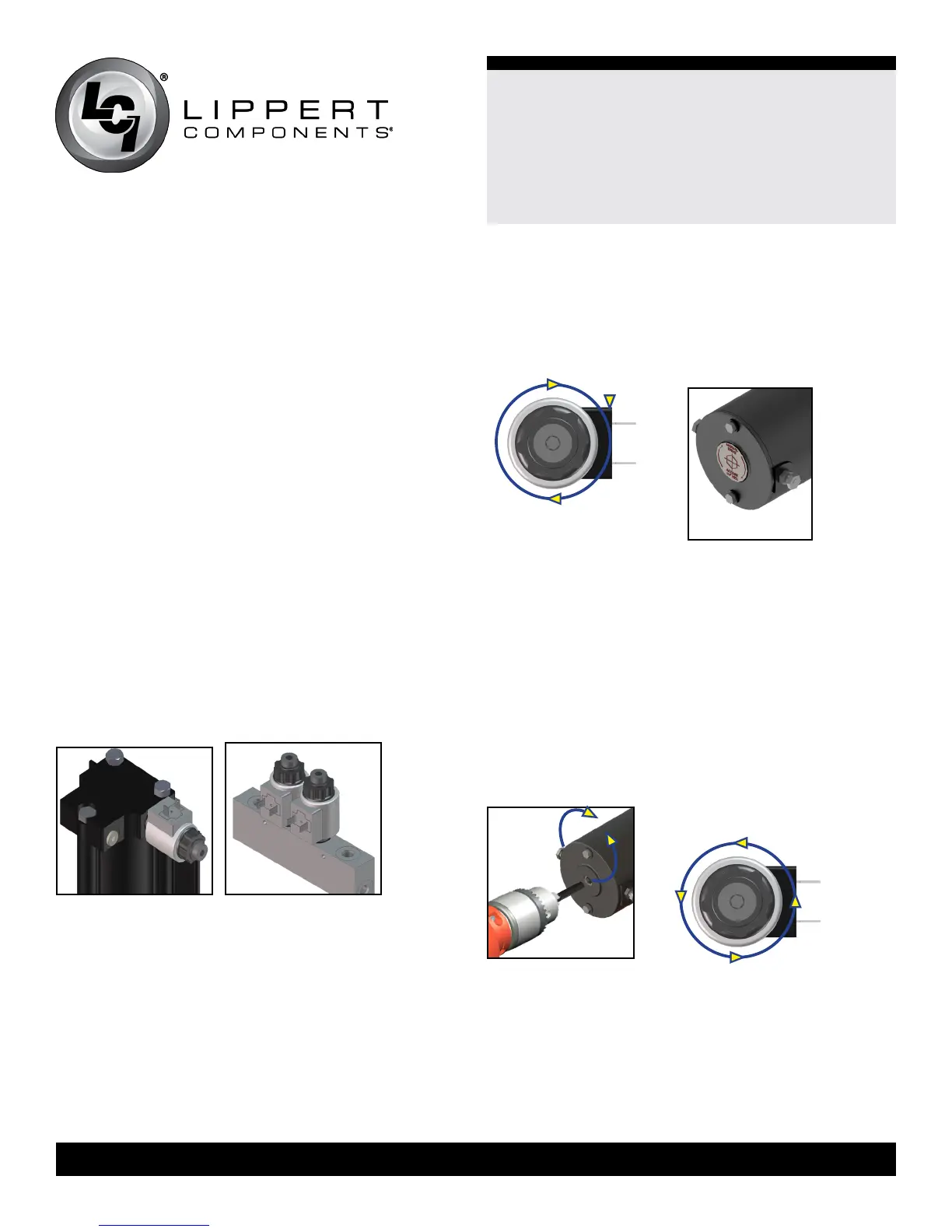

Manual Override
The LCI Level-Up
®
Automatic Leveling System can be manually
operated with an electric drill. In the event of electrical or
system failure, this manual method of extending and retracting
the jacks can be used.
NOTE: Unhook the power unit motor from the power source
prior to attempting the manual override procedure.
1. Locate the valves that are paired with the landing gear or
leveling jack to be manually overridden.
A. Landing Gear - Valve located on the lead landing gear
(Fig.35).
B. Leveling Jacks - Valve located on valve block (Fig.36).
Fig.34
Fig.35
Fig.36 Fig.37
Preventive Maintenance
1. Remove dirt and road debris from leveling jacks and
landing gear and stabilizer struts (if equipped) as needed.
2. If jacks are down for extended periods, it is
recommended to spray exposed leveling jack tubes with a
spray lubricant every 3 months for protection. If the trailer
is located in a salty environment, it is recommended to
spray the rods every month.
4. Using an electric drill with a
¼” hex bit, insert the hex bit into
the manual override coupler to manually operate the system
(Fig.39).
A. Run the drill forward (clockwise) to retract the landing gear
or leveling jacks.
B. Run the drill in reverse (counterclockwise) to extend the
landing gear or leveling jacks.
5. Be sure to turn the manual override set screw on the valve
back to the counterclockwise position after extending or
retracting the landing gear or leveling jack (Fig.40).
