9
lci1.com 574-537-8900 CCD-0001533 Rev: 06.29.18
Level Up
™
Installation and Owner’s Manual
(For Aftermarket Application)
6. Plug the touch pad harness into the connector on the
back of the touch pad face plate and snap the face plate
into the bezel (Fig.25 and 26).
7. The last harness to connect is the one that powers and
controls the system. One end will have two connectors that
plug into the controller, a 9-pin and a 6-pin, and the other
will have eight color coded wires.
8. Connect the 9-pin and 6-pin connectors to the proper
ports on the controller.
9. Connect a ground wire from each of the valve coils to
the ground post on the dual polarity solenoid.
10. Connect a ground wire from the ground post on the
dual polarity solenoid, to a grounding bolt on the frame of
the trailer. This will ground the entire system.
4. Feed the touch pad harness through this hole and run
it to the compartment where the controller is mounted.
Plug the harness into the appropriate connector on the
controller.
5. Insert the touch pad bezel into the cutout and attach it
with four #8x1” wood screws with sucient length to thread
into the compartment wall (Fig.24).

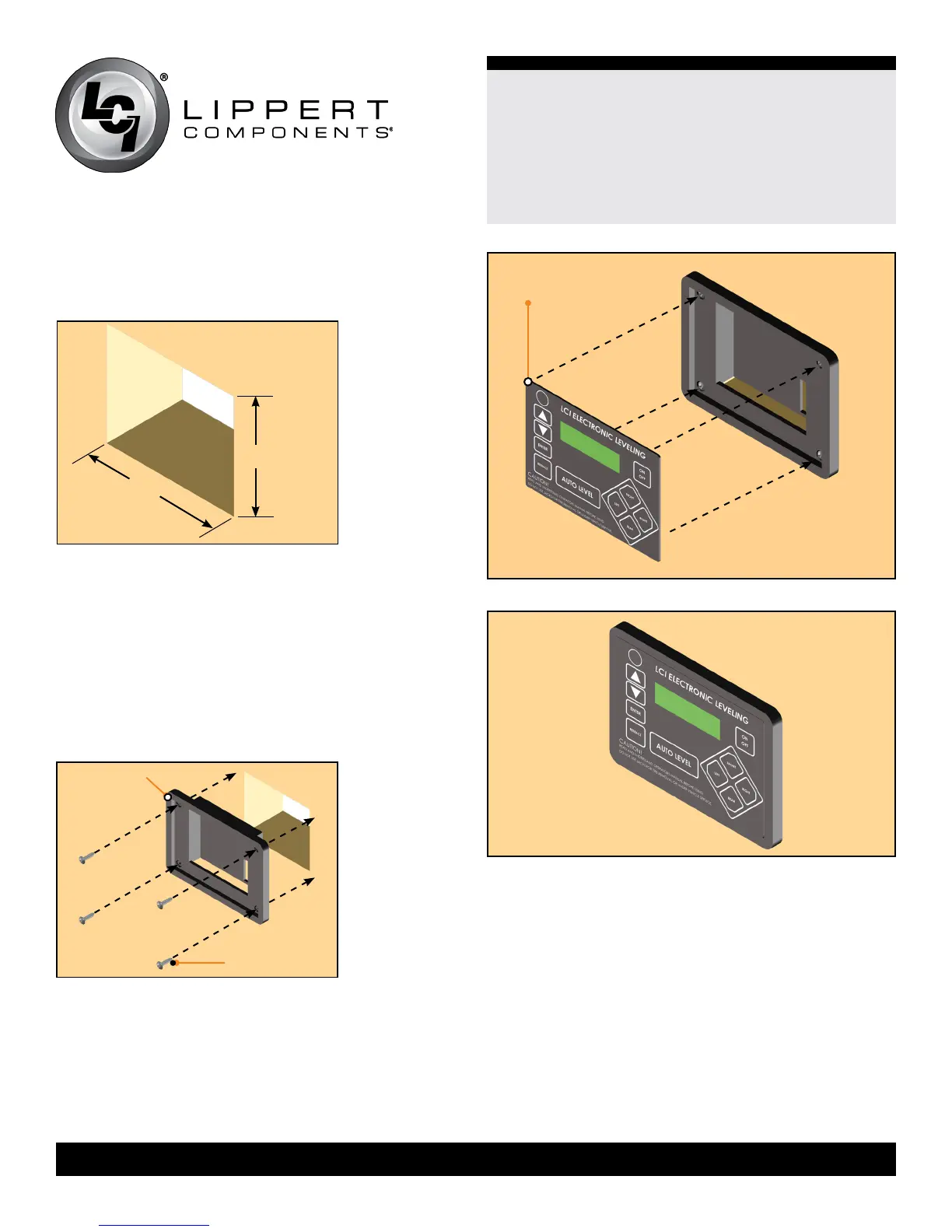

3. Cut a hole in the wall of the compartment 3
⁄” wide by
2 ¾” high so the top and bottom horizontal cuts are parallel
to the oor of the compartment (Fig.23).
²
⁄
”
³
⁄
”
Compartment Wall
Fig.²³
Touch Pad
Bezel
Wood Screw
Fig.24
Touch Pad
Face Plate
Fig.25
Fig.26
To Next Page
